Hydronic Balancing Solution for Heat Pump & UFH — Boost COP, Cut Costs

Overview

From manual adjustment to adaptive balancing —— commissioning-free is the ultimate cost reduction.

In today's European HVAC market, the greatest barrier to system performance is not the equipment itself, but the labor-intensive commissioning process. Conventional hydronic systems rely on complex manual balancing —— which is not only prone to errors but also incapable of responding to dynamically changing load conditions.

Our solution shifts the system focus from "manual adjustment" to Adaptive Hydronic Flow Control. Through real-time temperature differential analysis, the system achieves automatic balancing immediately after installation —— eliminating tedious on-site flow adjustment procedures and ensuring your heat pump consistently operates at its optimal design efficiency. Recommended Reading: Commercial UFH Operating Cost Optimization →

Core Capabilities

● Adaptive Balancing
● Commissioning-Free
● Dynamic ΔT Management
● COP Optimization

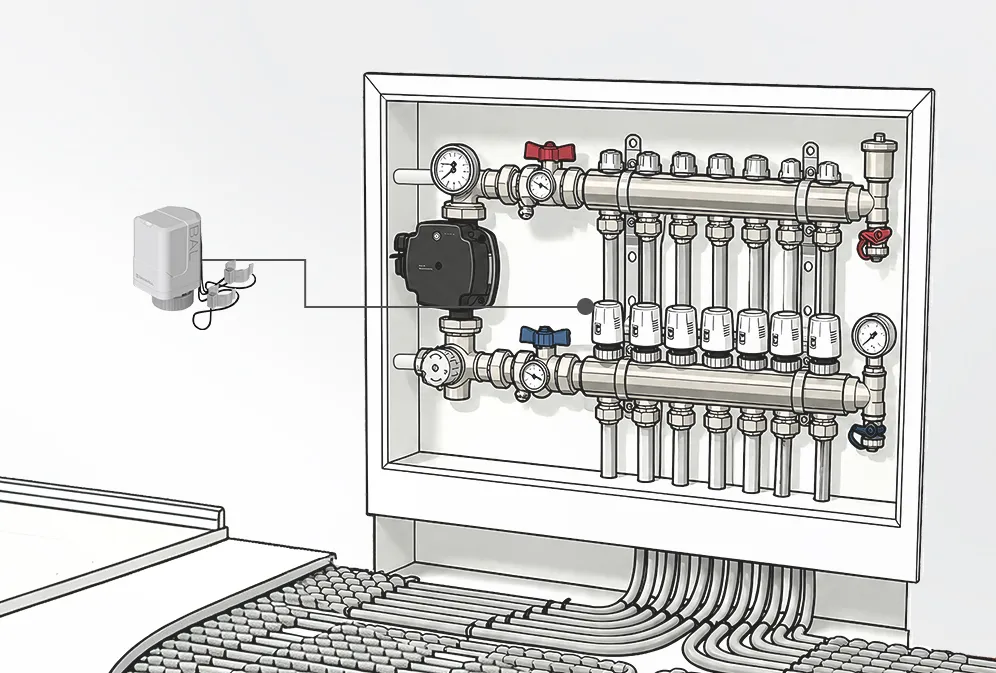

Hydronic balancing solution overview for residential underfloor heating systems

Solution Architecture

Adaptive hydronic flow control at the core, with real-time ΔT monitoring enabling autonomous balancing and dynamic response.

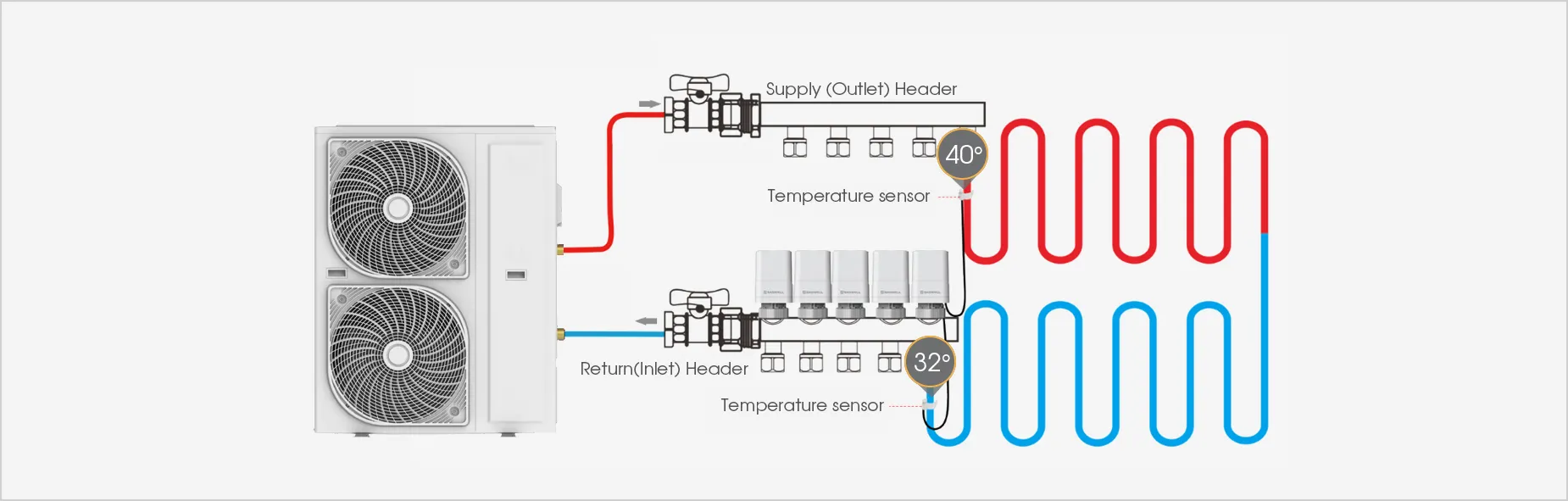

Hydronic balancing solution for supply and return temperature detection on manifold

Comparison Metric	Traditional Manual Balancing	Adaptive Hydronic Flow Control (This Solution)
Commissioning Method	Manual valve adjustment	Fully automatic, no manual intervention
Commissioning Time	Hours to days	Balanced immediately after installation
Load Response	Static, cannot adapt to changes	Dynamic, real-time load response
Labor Cost	High (skilled commissioning engineers required)	Minimal (auto-balancing upon installation)
Heat Pump COP	Unpredictable, depends on manual accuracy	Consistently at optimal operating conditions
Maintenance	Re-balancing required after load changes	Self-adapting, no periodic maintenance

Architecture Highlights

Autonomous Balancing

Automatically corrects flow deviations caused by pipe length differences and valve installation tolerances —— ensuring precise flow distribution to every circuit.

Reduced Commissioning

No manual flow settings required. One-touch system balancing dramatically shortens project delivery timelines and directly reduces Europe's most sensitive cost factor: labor.

Dynamic ΔT Management

Continuously monitors return water temperature variations, anticipates load fluctuations, and proactively adjusts flow —— keeping the heat pump operating at its design point at all times.

Heat Source Agnostic

The balancing logic is independent of heat source type —— compatible with air-source heat pumps, ground-source heat pumps, gas boilers, and district heating systems alike.

Recommended Reading: How stepper motors achieve ±1.5°C precision control | SA Series Electric Thermal Actuators

Application Scenarios

Air-to-Water Heat Pump UFH Systems – Boost COP, Eliminate Cold Spots

Challenge: Air-to-water heat pumps struggle with low flow temperatures in cold climates. Hydraulic imbalance reduces ΔT, triggering short-cycling or derating – hurting seasonal COP – while over-supplied zones overheat and under-supplied zones stay cold.

Our solution: Real-time ΔT monitoring adjusts flow per circuit to maintain optimal ΔT. When a zone reaches setpoint, flow is reduced and excess water redirected to zones still calling for heat – eliminating cold spots and overheating, cutting pump energy, and stabilising return temperature to prevent compressor short-cycling.

● Auto-Balancing

● Dynamic Flow Control

● COP Optimization

● Cold Spot Elimination

Recommended Reading: How to fix hot and cold spots in UFH systems →

Electric thermal actuator solutions for heat pump residential living room systems

Building Retrofit – Upgrade to Dynamic Balancing Without Redesigning the Piping

Challenge: Retrofit is a fast-growing market, but existing piping isn't designed for modern heat pumps, flow distribution is often poor, and balancing valves are usually missing. Traditional fixes require re‑calculating pipe sizes, installing new valves, and re‑pressure‑testing – nearly impossible in occupied buildings.

Our solution: Our retrofit kit – ΔT Automatic Balancing actuators, room thermostats, and central control box – directly replaces existing 2‑port valves and actuators, with no pipework changes. The system auto‑balances on installation, turning static unbalanced systems into dynamic self‑adapting ones. For phased projects, it can be deployed floor‑by‑floor or unit‑by‑unit without interrupting heating in other areas.

● Direct Replacement

● No Pipe Modification

● Phased Deployment

● Balance-on-Install

Recommended Reading: Unified control for hybrid UFH and radiator retrofits →

Hydronic balancing solution for European residential retrofit projects

Explore More HVAC Solutions

Need precise flow limiting capability without the premium PICV cost? Explore our Smart PICV Flow Limiting Solution —— one standard valve body + App-based digital flow control.

Contact Our Team Explore PICV Flow Limiting

Advantages

Software-Defined, Not Hardware-Bound

Flow limits are set in the App, not carved into hardware. Change the requirement? Change the setting — not the valve. This is flow control that adapts to your project, not the other way around.
One Valve Does It All

Stop juggling multiple PICV SKUs for different flow ranges. One standard valve body + SA905-V covers the full spectrum — from low-flow zones to high-demand circuits. Simplify procurement, reduce inventory, eliminate write-offs.
Precision Without the Premium

Digital flow setting delivers 1% incremental precision — far exceeding mechanical dials. Yet the cost is a fraction of premium PICVs. Precision is now a software feature, not a price tier.

Related Products

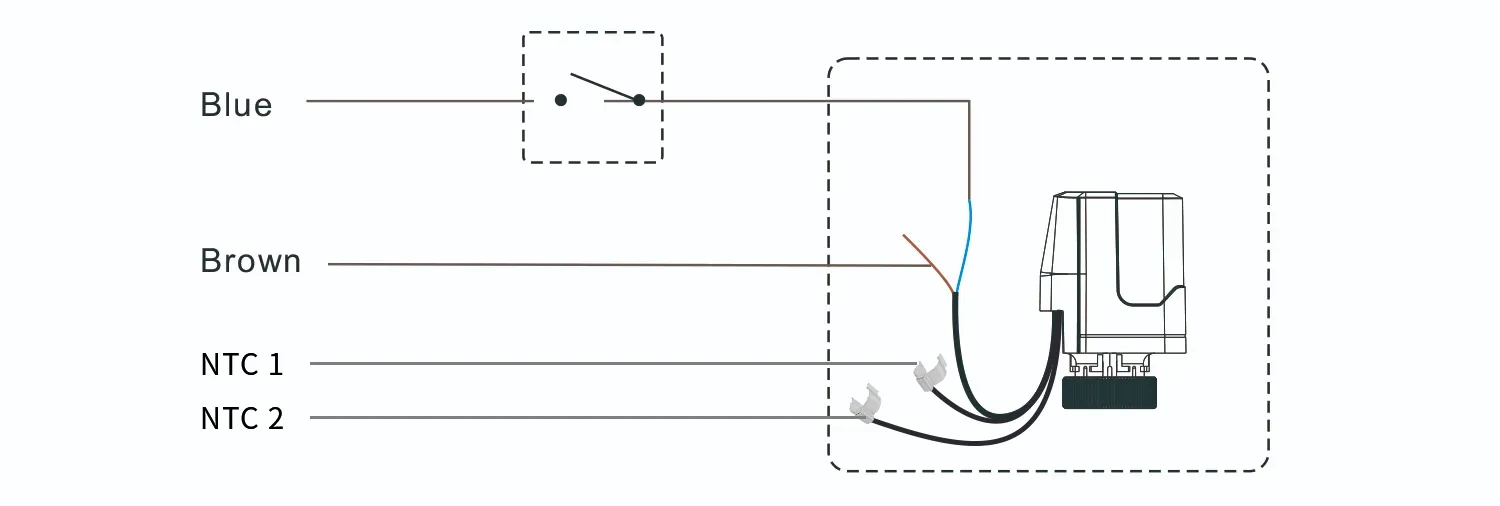

SA905-T ΔT Automatic Balancing Electric Thermal Actuator

LEARN MORE

Power supply: SA905-T(220V):100-240VAC ( SA905-T(24V):24VAC )

Power consumption: <2W

Stroke: 4.5mm

Force:80N~130N

Ambient temperature: 0 ~ +50°C

Ambient humidity: 10%~90%,non-condensing

Protective housing: IP 54

Valve interface: M30x1.5mm

Temperature sensor: NTC 100K, clip for pipe outer diameter from 16~20mm
