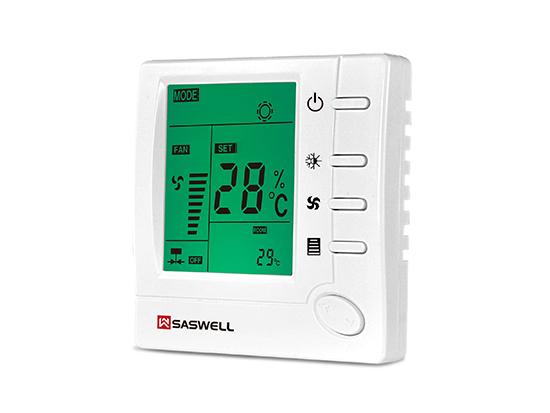

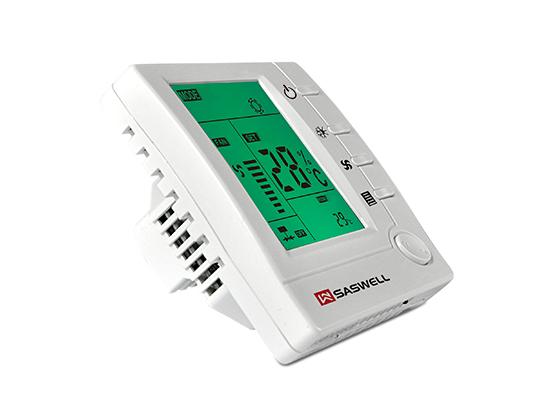

Single stage thermostat with external sensor SAS803SLP

Single stage thermostat with external sensor SAS803SLP

Widely adopted in commercial, industrial, and residential buildings, as well as villa complexes, the two-pipe fan coil thermostat with an external sensor is designed to manage year-round central air conditioning systems. It efficiently controls heating, cooling, and the operation of fans and water valves, making it a versatile solution for various environments.

FEATURE：

Large LCD display with backlight
Temperature adjustments are simple with the large up-down arrows
Display shows both set points and room temperature simultaneously
Maintains the temperature to within 0.5 degree set point
Auto fan with adjustable 3-fan speed.  Permanent user setting retention during power loss, no batteries are required
Compressor delay

SPECIFICATION:

Electrical Rating：100-240VAC 50/60Hz
Fan Relay Amps inductive：8A
Heat/Cool Relay Amps inductive：0.5A
Room Temperature Setting Range：5℃ to 35℃
Dimensions：86mm×86mm×15mm
