/Air-conditioner thermostat SAS922XFCT-4-RCS-485

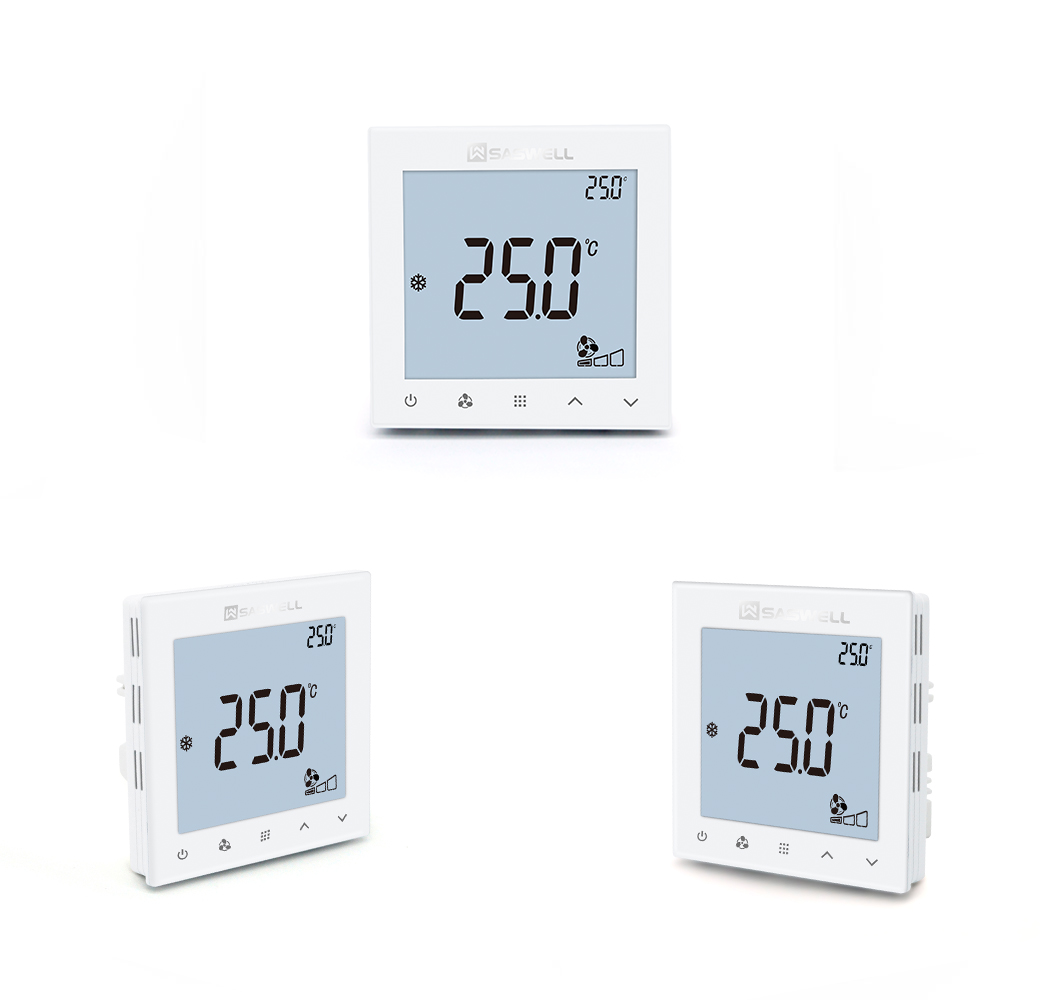

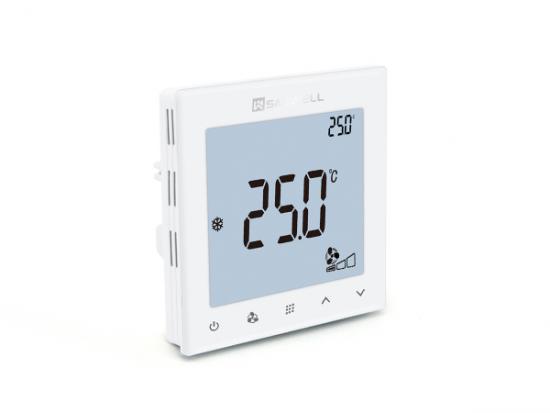

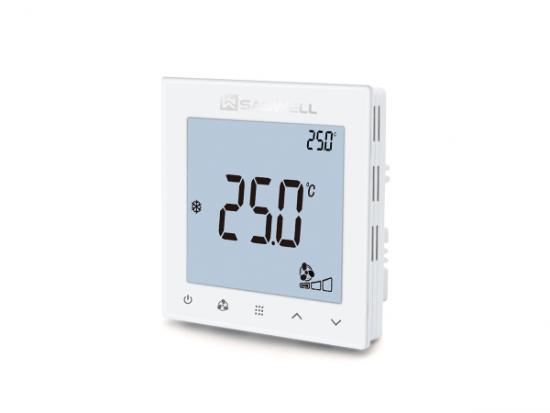

Air-conditioner thermostat SAS922XFCT-4-RCS-485

  • Weight:

    0.25kg
  • Dimension:

    86x86x12mm
Main Features
Air-conditioner thermostat Excellent fan coil touch screen thermostat with modbus communication
Product Details

Air-conditioner thermostat SAS922FCT-EC-485

Feature:

1. Whatever it’s 2 pipe or 4 pipe system,it work in one unit

2. Modbus communication for BMS project

3. Room card function energy saving

4. Remote sensor

5. Flush mount with 86*86 junction box

6. Touch screen,more easy to control

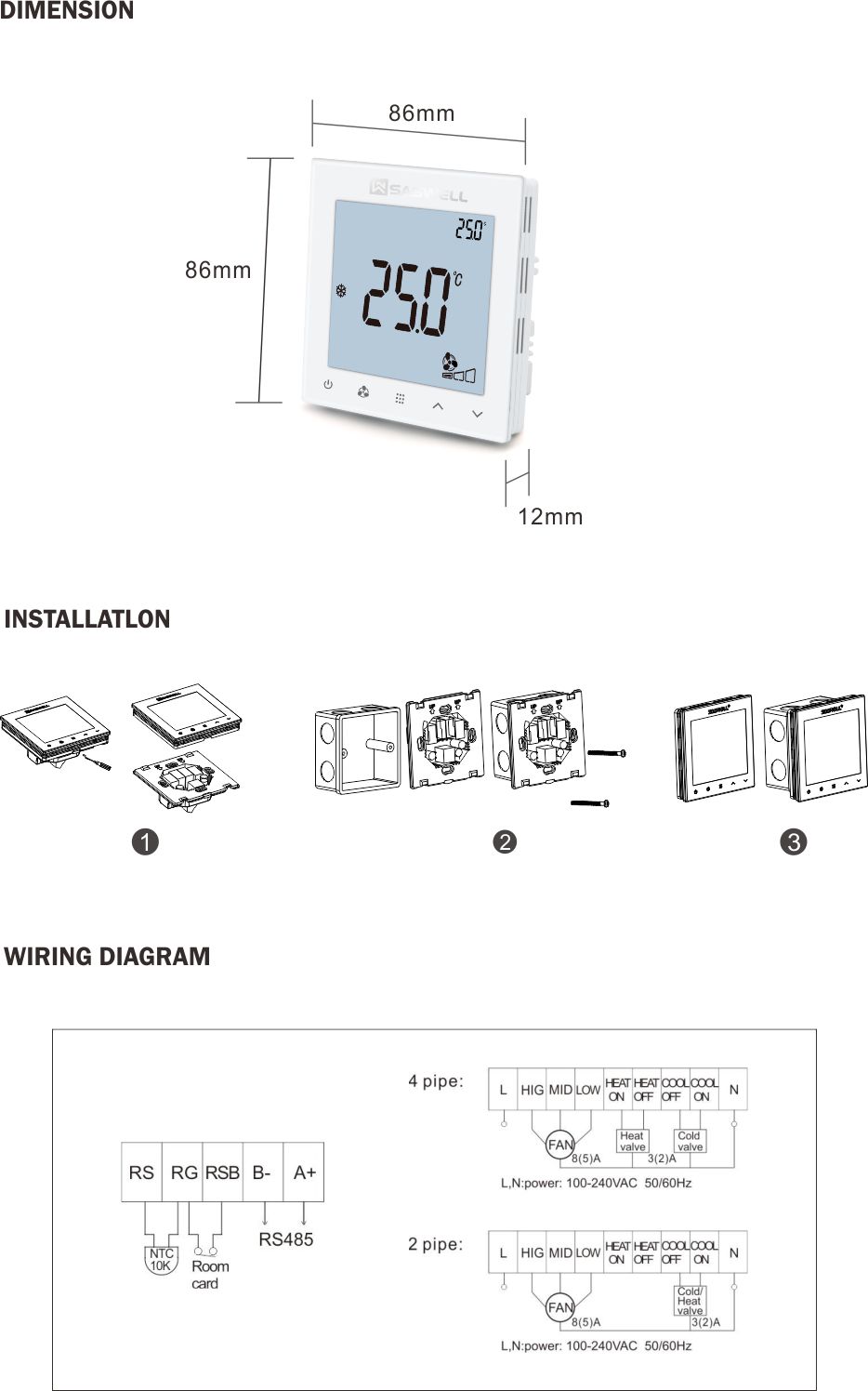

Dimension

88mm×88mm×12mm

Setting temperature range

5°C~35°C

Accuracy

±0.5°C

Power

100-240VAC  50/60Hz

Fan Relay Amps

 8(5)A

Valve relay Amps

3(2)A

Protection class

IP21

Working environment

0-50℃5-95%RH
