Weight:
0.25kgDimension:

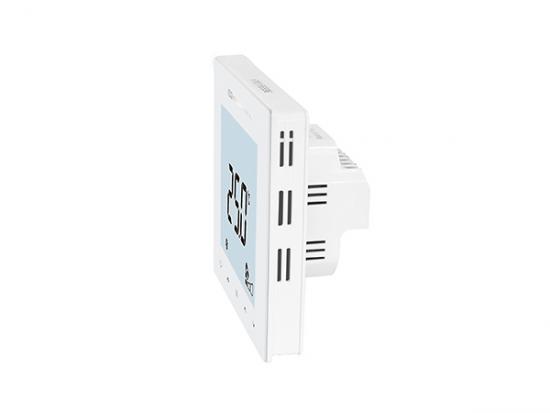

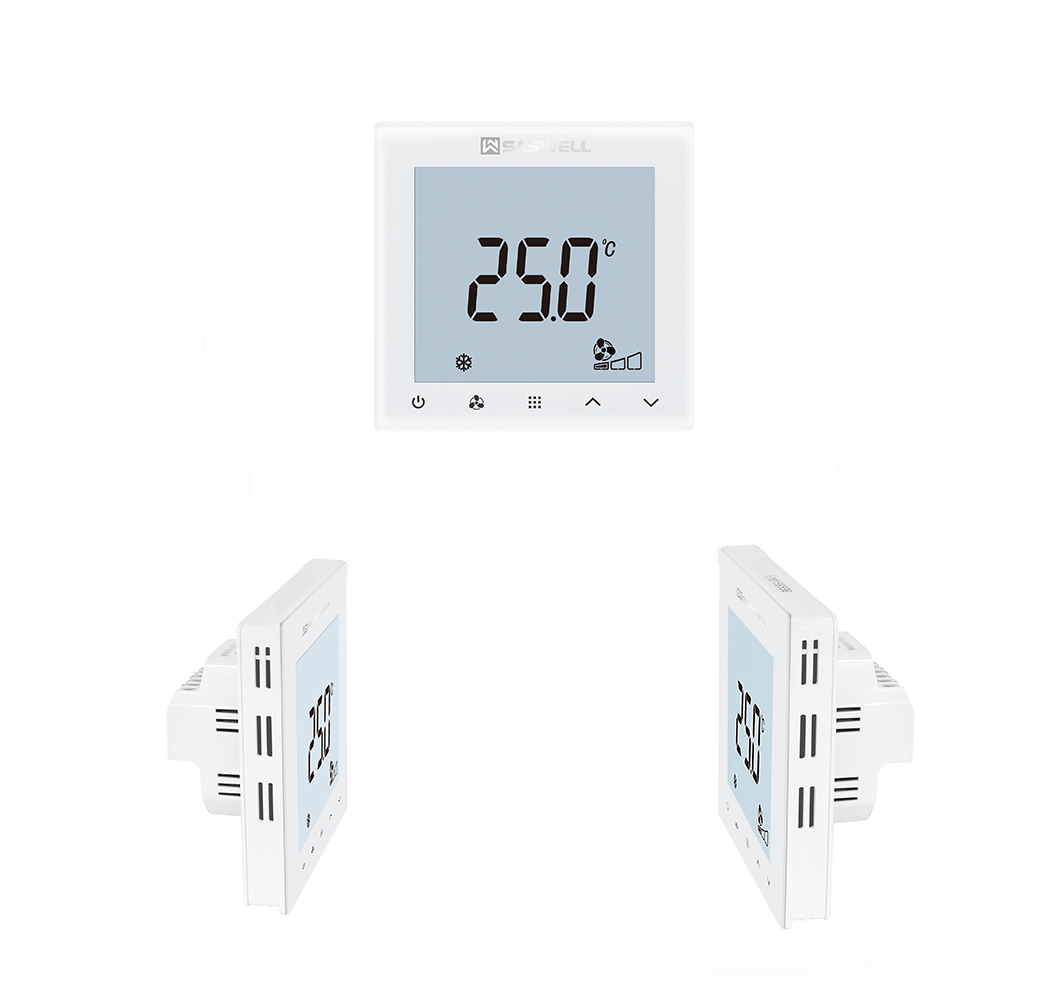

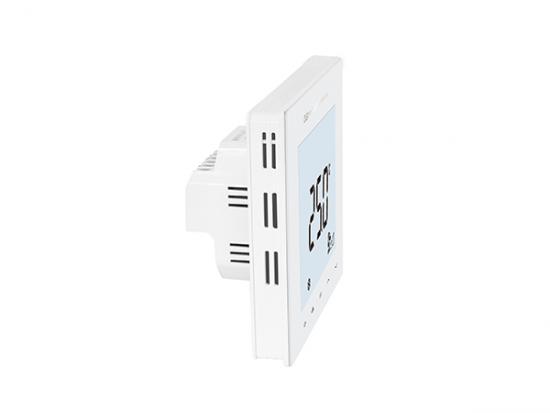

86x86x12mmBest home thermostat SAS922XSLP-RCS-485
Home thermostat Feature:
1. Large LCD display with backlight
2. Touch button easy to use
3. Display shows both set points and room temperature simultaneously
4. Room card or window card function is optional
5. Auto fan with adjustable 3-fan speed
6. Permanent user setting retention during power loss, no batteries are required
7. Room Sensor or External sensor model option
8. With Mod Bus communication can be integrated in a BMS system.
Power source |
100-240VAC 50/60Hz |
Fan Relay Amp |
8⑸A |
Valve relay Amps |
3(2)A |
Accuracy |
±0.5°C |
Working environment |
0-50℃,5-95%RH |
Setting temperature range |
5°C~35°C |
Protection class |
IP21 |

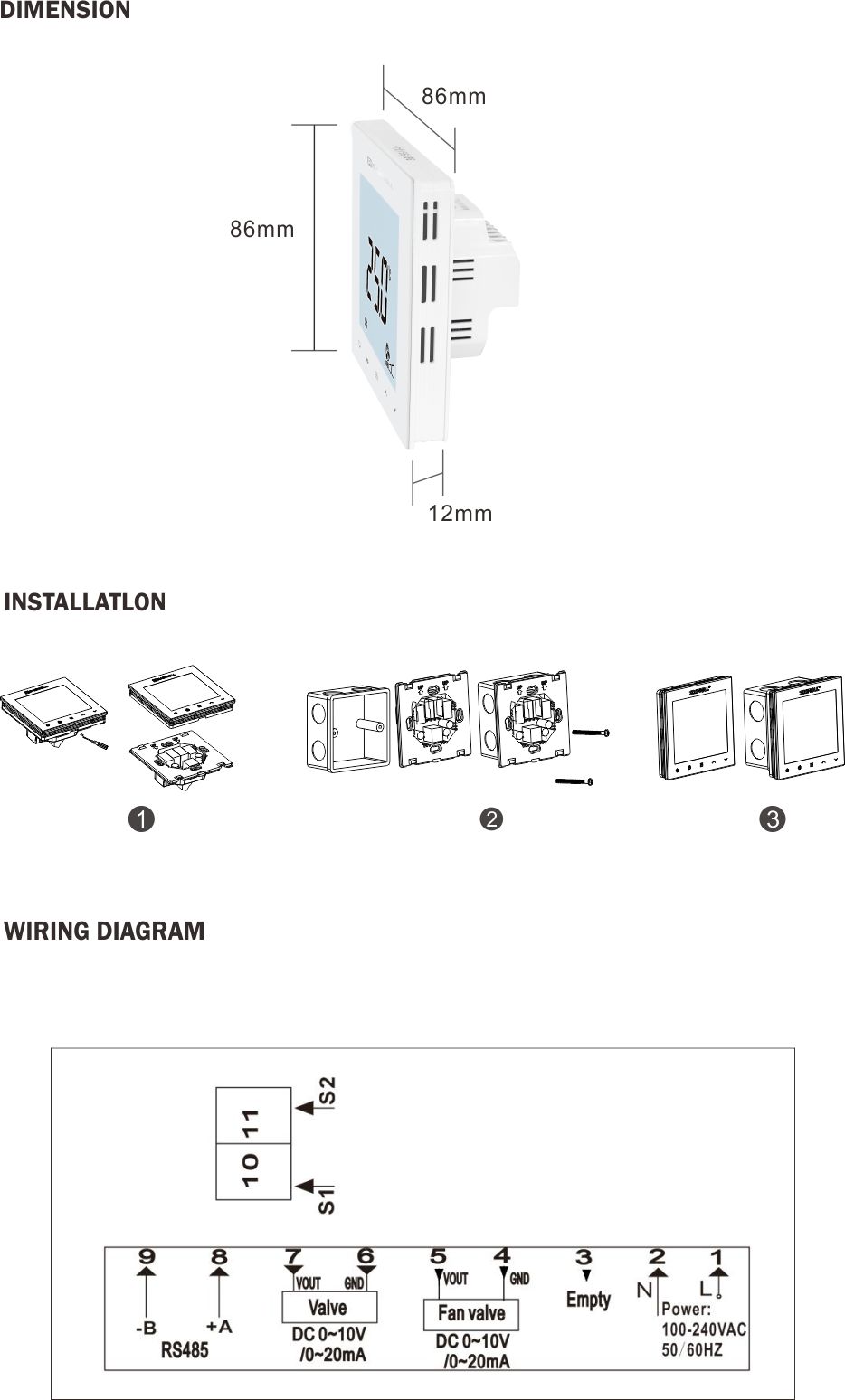

Dimension |
88mm×88mm×12mm |
