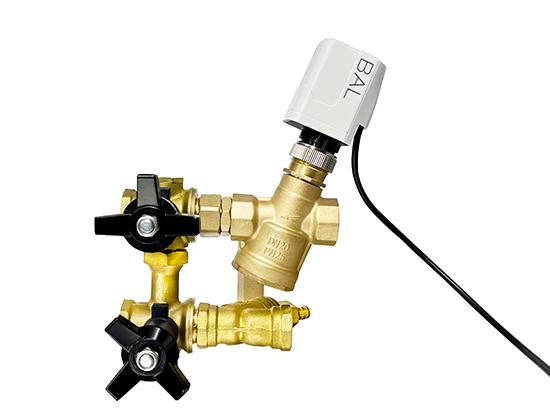

PICV Kit Pressure Independent Control Valve Assembly for HVAC Systems

PICV Kit Pressure Independent Control Valve Assembly for HVAC Systems

The PICV Kit (Pressure Independent Control Valve Kit) is a reliable solution designed for modern HVAC systems. It integrates a high-performance control valve, actuator, and installation accessories to ensure precise flow regulation and automatic hydraulic balancing. By eliminating system imbalance, the PICV Kit significantly improves energy efficiency, reduces commissioning time, and lowers long-term operating costs.

This kit is widely used in commercial buildings, hospitals, hotels, office complexes, and industrial facilities. It is suitable for terminal equipment such as fan coil units (FCUs) and air handling units (AHUs), offering engineers and facility managers a smart choice for achieving sustainable and efficient building operations.

FEATURE：

M30x1.5 threaded connection
Max stroke 6mm, auto stroke detection
Auto-zero self calibration
Stroke time 7.5sec/1mm, Force 140N~180N
With 0.9M electric wire
Enclosure protection lP54
Position feedback signal
Linear charactreristic (adjustable for equal-percentage characteristic)

SPECIFICATION:

Power supply:SA905-V(220V):100~240VAC 50/60Hz,

                    SA905-V(24V):24V(18-36V)AC 50/60Hz,24V(18-36V)D0

Control signal: 0-10VDC

Enclosure protection: lP54

Threaded connection: M30x1.5

Working ambient temperature: 0°C to +50°C

Working fluid temperature: 0'C to +95°C
