Save 50% of the cost - Cost-effective alternative to high-end PlCV valves

Save 50% of the cost - Cost-effective alternative to high-end PlCV valves

If you're still using fancy PICVs to control flow, there's a smarter, newer option you should look into—particularly if you care about cost, quick setup, and flexibility for your project.

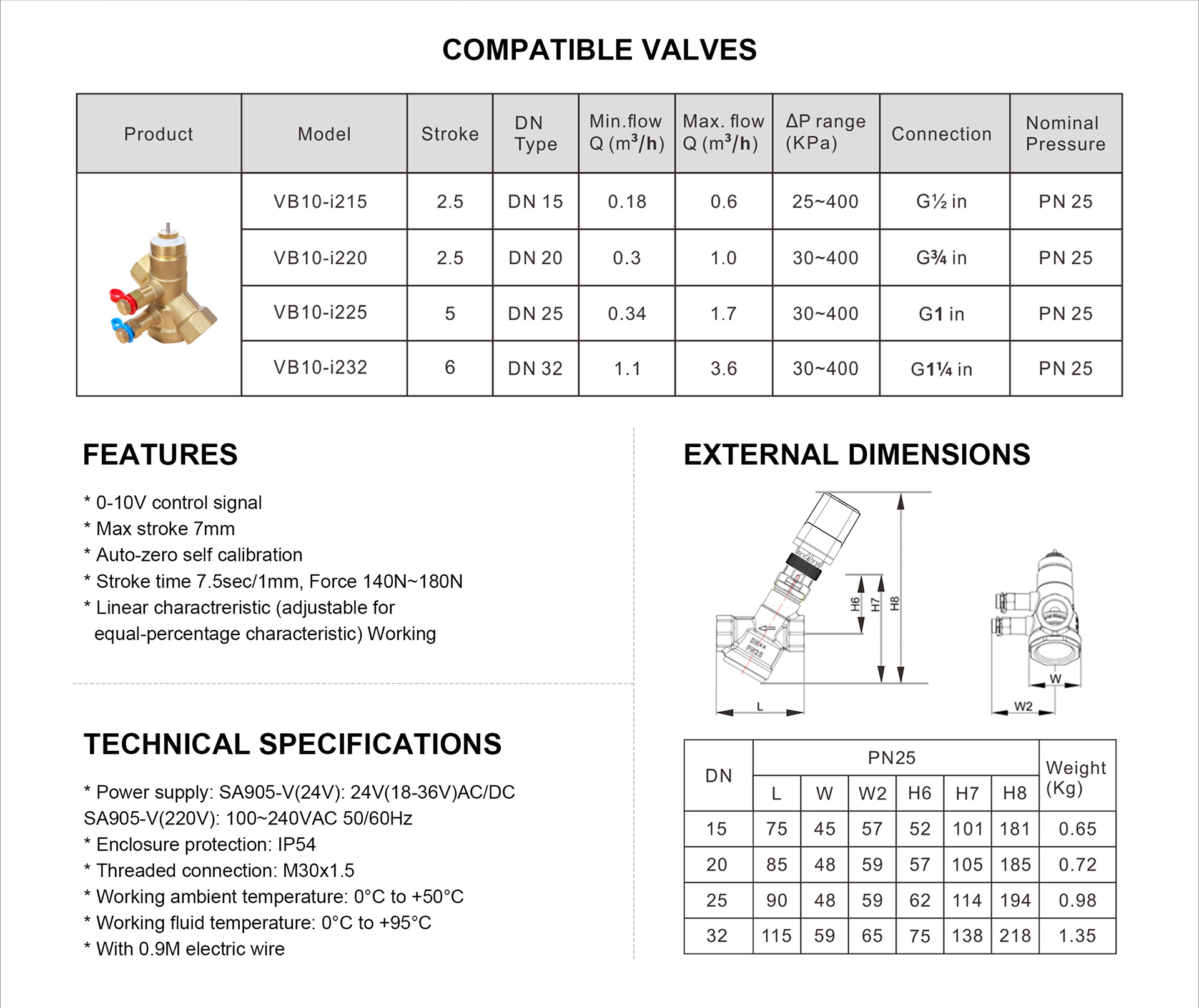

FEATURE：

0-10V control signal
Max stroke 7mm
Auto-zero self calibration
Stroke time 7.5sec/1mm, Force 140N~180N
Linear charactreristic (adjustable for
equal-percentage characteristic) Working

SPECIFICATION:

Power supply 50Hz or 60Hz, 100-240V AC, power 1.5W

M30x1.5 threaded connection

Stroke time 7.5sec/1mm, thrust 160N

With 0.9M electric wire

Enclosure protection IP54

ambient temperature: 0°C to +50°C

Working fluid temperature: 0°C to +95°C
