Weight:
0.25kgDimension:

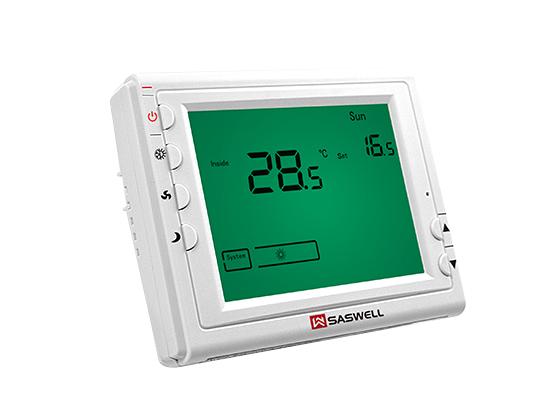

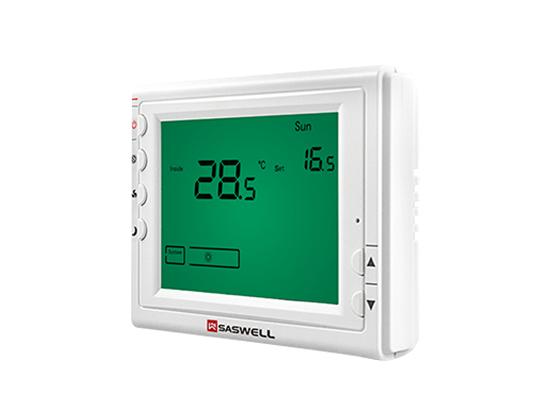

115x90x28mmSmart Wireless Boiler Thermostat with Advanced Energy-Saving Features SAS908PIT
Discover the latest in smart heating technology with our wireless boiler thermostats. Control your home's temperature effortlessly from anywhere using intuitive mobile apps. Explore energy-efficient features designed to optimize comfort and reduce costs. Upgrade your heating system today with our innovative solutions.
FEATURE:
Large LCD display.
The screen displays the set temperature, the room temperature simultaneously.
Permanent user setting and program setting retention during power loss.
Special energy saving mode-external input from window contact or hotel card-key overrides.
The temperature setting to installer defined heating and cooling temperatures.
0 to 10VDC or 0 to 20mA heat and cool outputs.
3-speed fan control.
Fahrenheit or Celsius display capability.

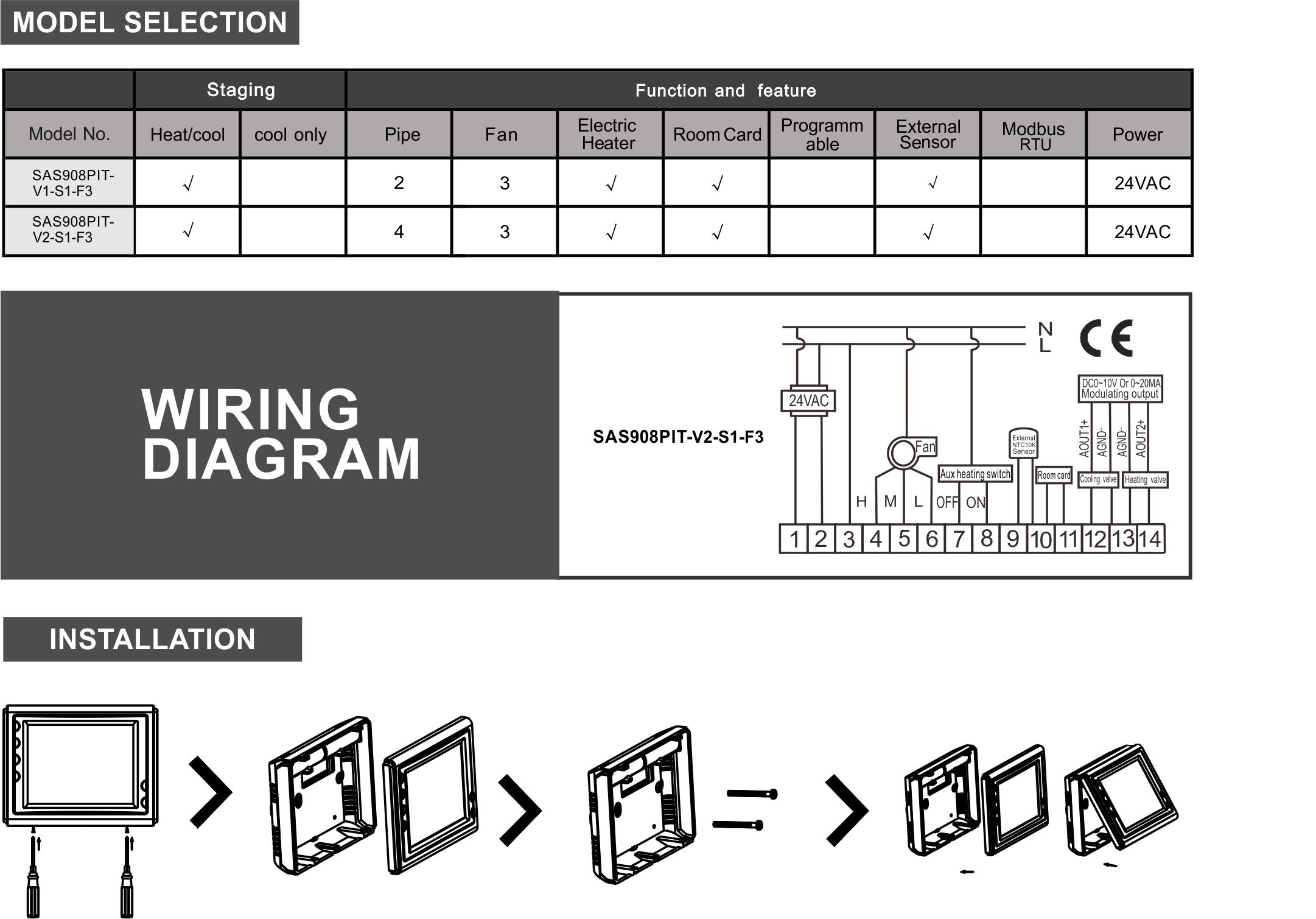

SPECIFICATION:
Power Supply: 18-30VAC 50/60Hz
Fan relay amps inductive: 5(3)A
Heat relay amps inductive: 1(0.5)A
Modulating output voltage: 0 to 20mA or 0 to 10VDC
Room temperature setting range: 5°C to 35°C (41°F to 95°F )
Accuracy:±0.2°F or ±0.1°C
