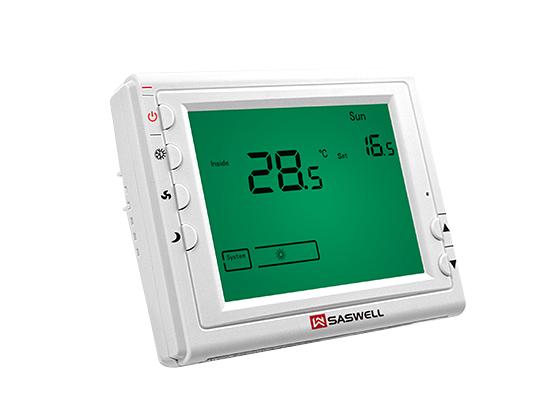

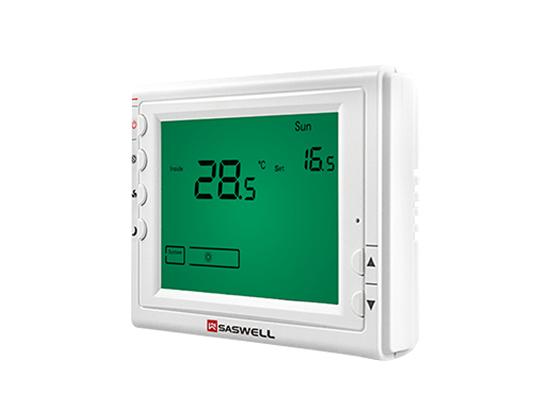

2H/2C AHU thermostat with external sensor SAS908MTW

2H/2C AHU thermostat with external sensor SAS908MTW

The 2H/2C AHU thermostat with external sensor helps improve energy efficiency by providing precise control of dual-stage heating and cooling operation. Help lower energy bills and reduce your environmental footprint by optimizing the performance of your HVAC system and reducing unnecessary energy consumption.

Feature:

Large LCD display with backlight (green or blue)

Set point and room temperature are displayed simultaneously.

Adjustable 3-speed fan with fan stop option.

Manual change over.

Display temperature recalibrates.

Never lose user setting in the event of power-off, no battery is required.

Room Card and Window Card option.

Inner Sensor or External sensor option.

Modbus communication

SPECIFICATION:

Power Supply: 100-240VAC 50/60Hz

Fan Relay Amps inductive: 8(5)A

Heat/Cool Relay Amps inductive: 1(0.5)A

Color: White

Set point Temperature Range: 5°C to 35°C

Dimensions：115mm×90mm ×28mm
