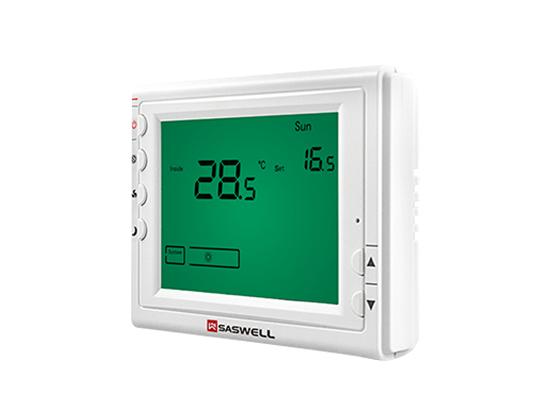

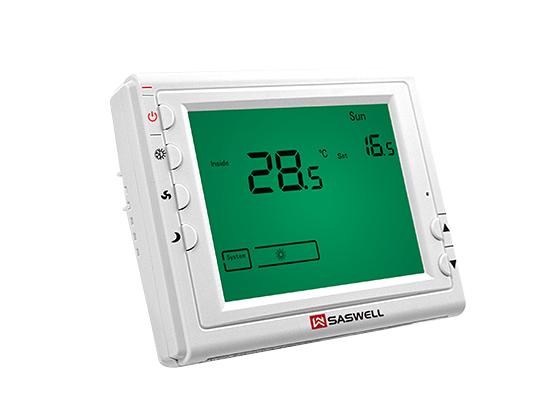

1H/1C AHU thermostat with external sensor SAS908STW

1H/1C AHU thermostat with external sensor SAS908STW

The 1H/1C AHU thermostat with external sensor is widely used in commercial, industrial and residential buildings and is ideally suited for a variety of environments. Its ability to manage single-stage heating and cooling makes it ideal for spaces that require reliable temperature control. Whether in an office building, factory or home, this thermostat delivers consistent comfort and energy efficiency.

feature:

Large LCD display with backlight

Set point and room temperature displayed simultaneously

Maintains the temperature within the range of 0.5℃ to the set point

Fans switch with on and auto

Manual change over

Never lost user setting in the event of power-off, no battery is required

Display temperature recalibrates

Sleep mode option

Compressor short cycling protection available

External sensor model option.（If there is a external sensor the temperature depend on it, and no

external sensor the temperature depend on Inner Sensor ）

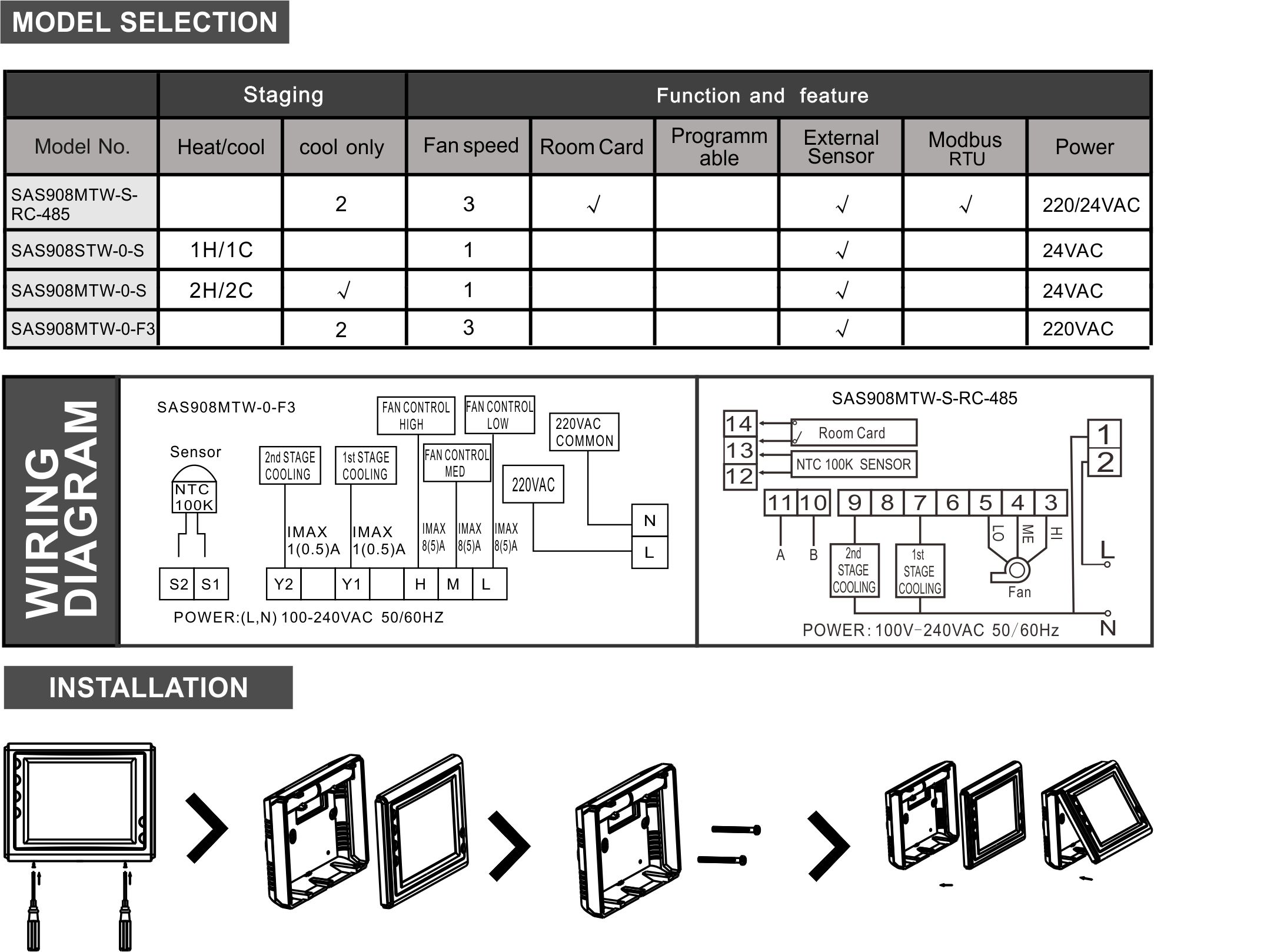

SPECIFICATION:

Electrical Rating：24VAC （18～30VAC 50/60Hz）

Fan Relay Amps inductive：3(2)A

Heat/Cool Relay Amps inductive：3(2)A

Set point Temperature Range：5℃ to 35℃

Dimensions：115mm×90mm ×28mm
