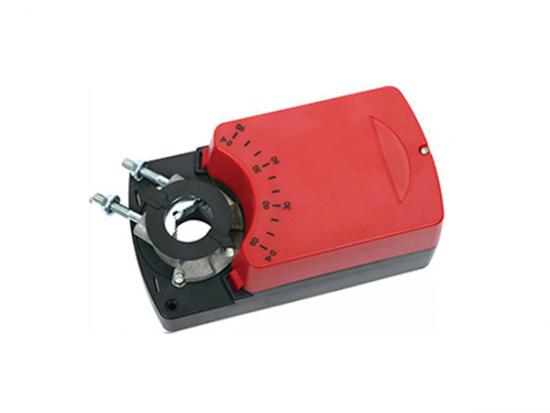

Damper Actuator SHF02-04 4N

Main Features
The damper actuator used in the building automatic control system of heating, ventilating, air-conditioning and cooling.
Product Details
Damper Actuator SHF02-04 4N

Item

SHF02-04A

SHF02-04D

Torque

4Nm

Damper area

1m2

Operating time

35S

Power Supply

24VAC/DC

24VAC/DC220VAC110VAC

Frequency

50/60Hz

Operating power consumption

2.5W

4.0W

Stoping power consumption

0.85W

3.0W

Wiring size

4.1VA

5.0VA

Weight

0.9Kg

1.1Kg

Control signal

0~10VDC

2 points and 3 points

Rotary angle

90°(Max93°)

0~90°

Usage Life

60000 Cycles

Noise level

45dB(A)

Protection class

IP class

IP44

Ambient temperature

-20~+50℃

Ambient humidity

5-95%RH

Storage

-40~+70℃

Certificate

CE

Damper Actuator SHF02-04 4N
