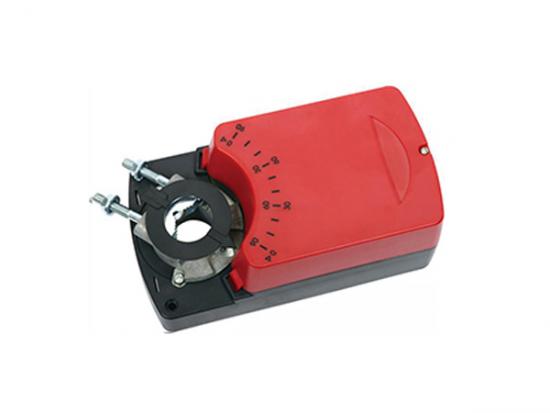

Actuator SHF02-08 8N

Item

SHF02-24A

SHF02-16D

SHF02-24D

SHF02-08A

SHF02-16A

SHF02-24A

Torque

8Nm

16Nm

24Nm

8Nm

16Nm

24Nm

Damper area

2m2

4m2

6m2

2m2

4m2

6m2

Operating time

30S

80S

125S

30S

80S

125S

Power Supply

AC24V、DC24V、AC220V/230V、AC110V

Frequency

50/60Hz

Operating power consumption

3.9W(24V)；4.8W(220V/230V)

4.0W(24V)；4.8W(220V/230V)

Stoping power consumption

0.4W(24V)；1.2W(220V/230V)

0.7W(24V)；1.0W(220V/230V)

Wiring size

6.5VA

6.5VA，7.5(230V)

Weight

1.1Kg

1.1Kg

Control signal

2 points and 3 points

0(4)…20mA   0(2)…10V

Rotary angle

0~90°

Limit angle

5~85°(5°Perstep)

Auxillary switch rating

3(1.5)A、230VAC

Usage Life

60，000 Cycles

Noise level

45dB(A)

Protection class

Ⅱ

IP class

IP44

Ambient temperature

-20~+50℃

Ambient humidity

5-95%RH

Storage

-40~+70℃

Certificate

CE
