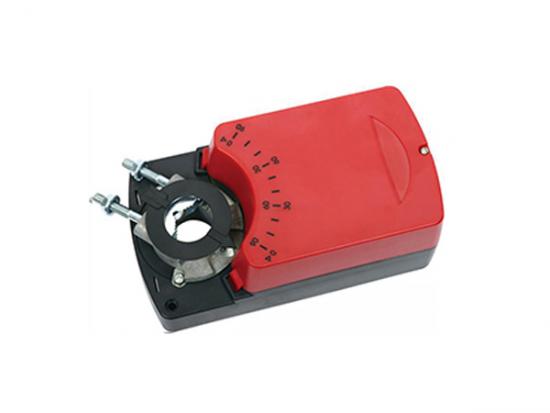

Damper Actuator SHF02-32 32N

Main Features
The series damper actuators are widely used in the building automatic control system of heating, ventilating, air-conditioning and cooling.
Product Details

Damper Actuator SHF02-32 32N

Item

SHF02-32N(F)

SHF02-32AN(F)

Torque

32Nm

Damper area

6m2

Operating time

140S

200S

Power Supply

AC24VDC24V

Frequency

50/60Hz

Operating power consumption

4.0W

2.5W

Stoping power consumption

0.5W

0.3W

Wiring size

3.0VA

4.5VA

Weight

1.1Kg

1.1Kg

Control signal

2 points and 3 points

0(4)…20mA   0(2)…10V

Rotary angle

0~90°

Limit angle

5~85°(5°Perstep)

Auxillary switch rating

3(1.5)A230VAC

Usage Life

60000 Cycles

Noise level

45dB(A)

Protection class

IP class

IP44

Ambient temperature

-20~+50℃

Ambient humidity

5-95%RH

Storage

-40~+70℃

Certificate

CE

Damper Actuator SHF02-32 32N
