Modulating 0-10V 2-Pipe Or 4 Pipe Fan Coil Unit Thermostat SAS922PIT

  • Weight:

    0.25kg

  • Dimension:

    86x86x12mm
Main Features
This modulating FCU thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
Contact Now
Product Details

Modulating 0-10V 2-Pipe Or 4 Pipe Fan Coil Unit Thermostat  SAS922PIT

This modulating FCU thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.

FEATURE：

Touch button easy for operation.
7 days programmable.
Heating,cooling and ventilation mode.
Auto fan with adjustable 3-fan speed.
Permanent user setting retention during power loss, no batteries are required.
Room Sensor or External sensor option.
Display shows both set points and room temperature simultaneously.
Modbus communication
Accuracy modulating control (4 to 20mA or 0 to 10VDC) system.

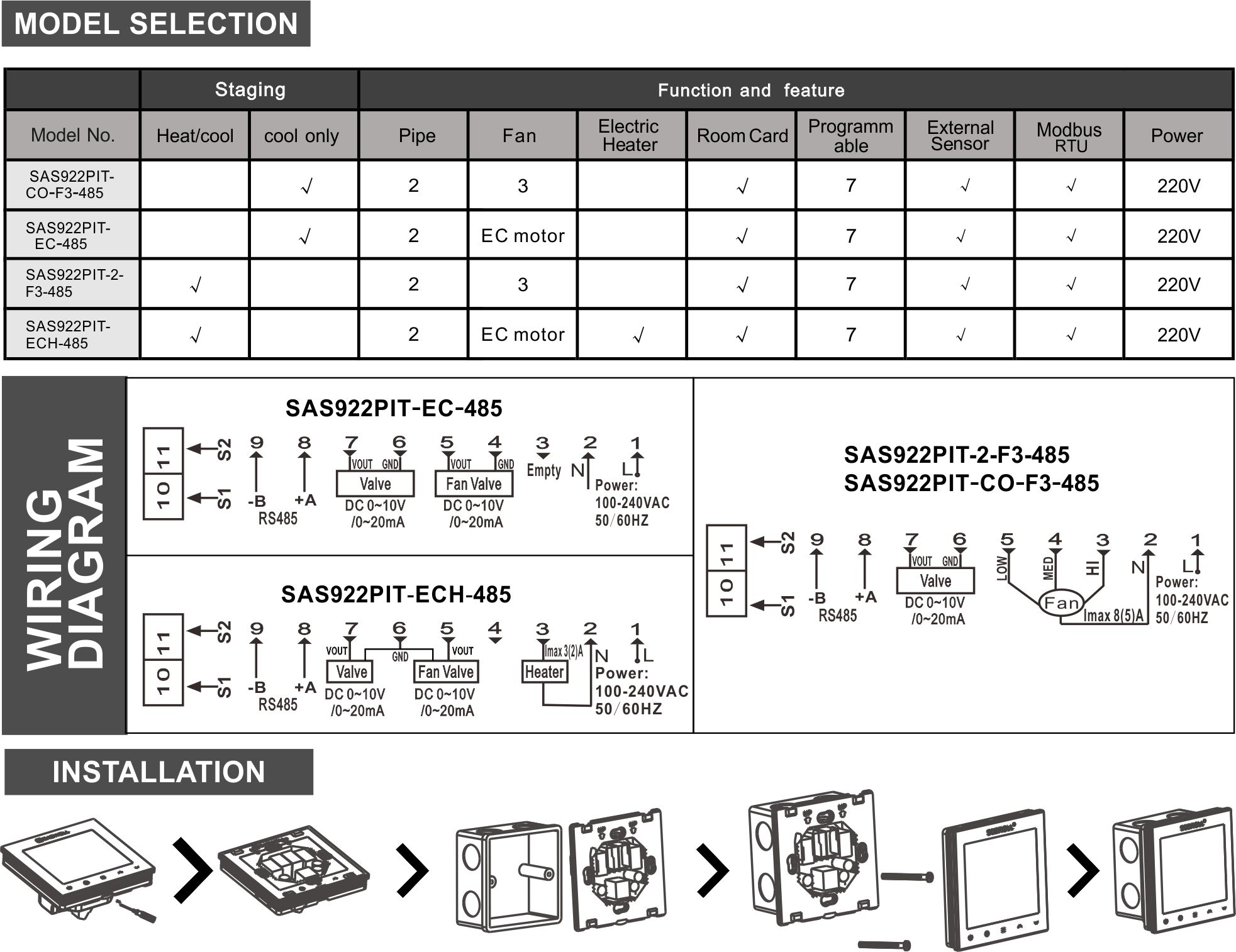

SPECIFICATION:

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Heat/Cool Relay Amps inductive: 3(2)A
Room Temperature Setting Range: 5°C to 35°C




Tags : modulating room thermostat modulating smart thermostat smart modulating thermostat modulating thermostat 0-10v modulating thermostat best modulating thermostat thermostat supplier smart thermostats manufacturer OEM thermostat
