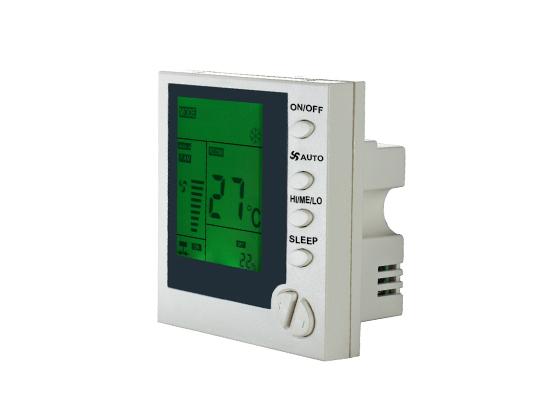

Single Stage Thermostat with External Temperature Sensor SAS903XSLP

Single Stage Thermostat with External Temperature Sensor SAS903XSLP

The two-pipe fan coil thermostat with an external sensor integrates a variety of advanced features, including room temperature correction coefficient settings, upper and lower temperature limits, different fan coil operation modes, and a power-off memory function. These functionalities ensure precise control and adaptability for diverse HVAC needs.

FEATURE：

Large LCD display with backlight

Temperature adjustments are simple with the large up-down arrows

Display shows both set points and room temperature simultaneously

Maintains the temperature to within 1 degree set point

Adjustable 3-speed fan with fan stop option.

Permanent user setting retention during power loss, no batteries are required

Three minutes compressor short cycling protection available

Optional temperature display of Celsius or Fahrenheit scale

SPECIFICATION:

Electrical Rating：100~240VAC 50/60Hz

Fan Relay Amps inductive： 8（5）A

Compressor Relay Amps inductive：8（5）A

Set point Temperature Range：20℃ to 35℃

Dimensions：86mm×86mm×15mm

Color： White

External sensor：NTC 10K
