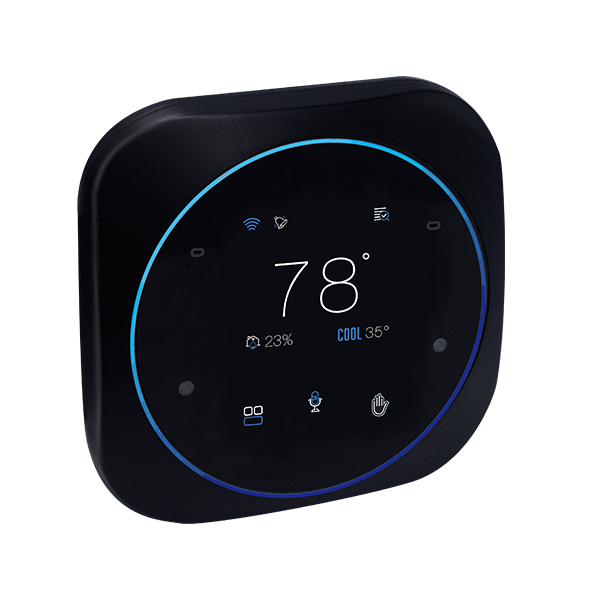

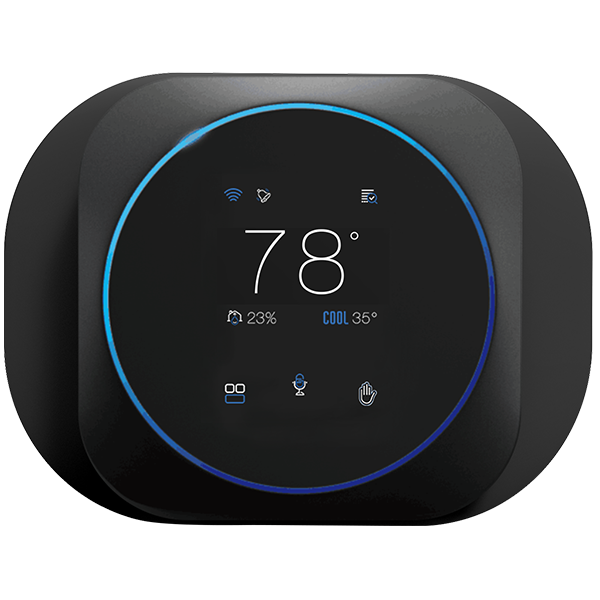

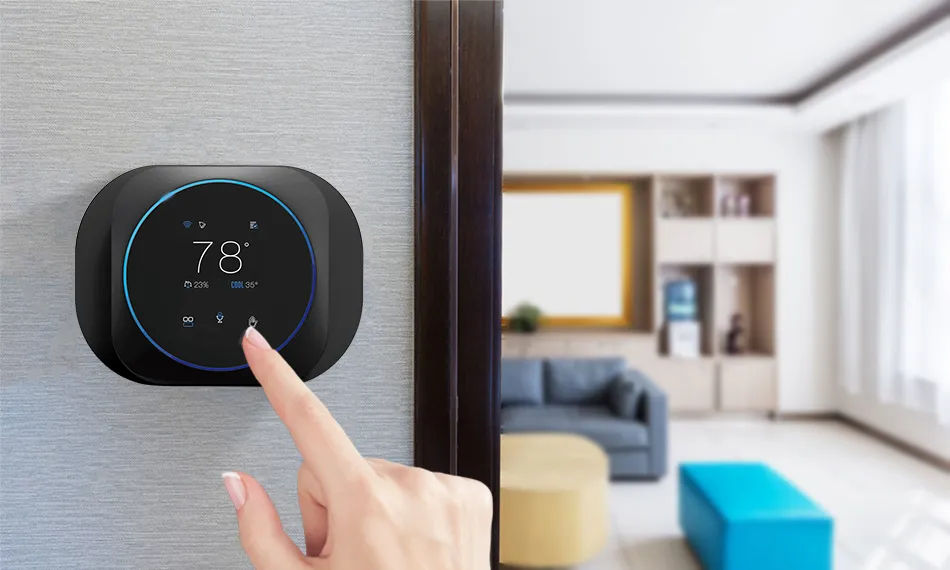

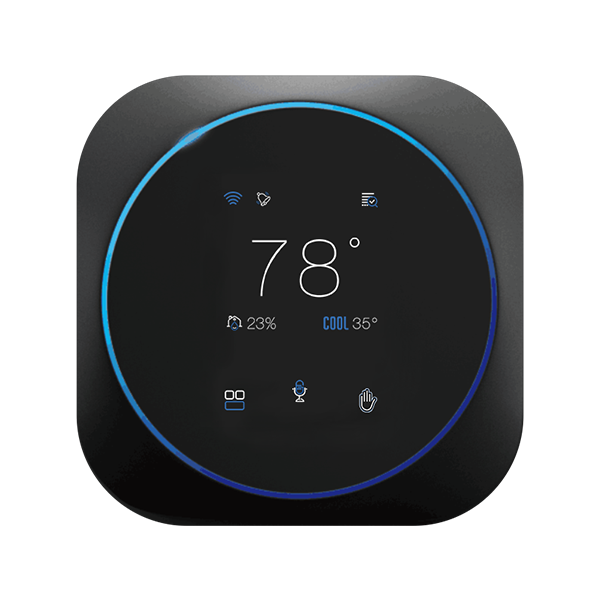

Big screen and touch key for easy operation
Programmable available
Fan switch with ON and AUTO functions
APP remote control

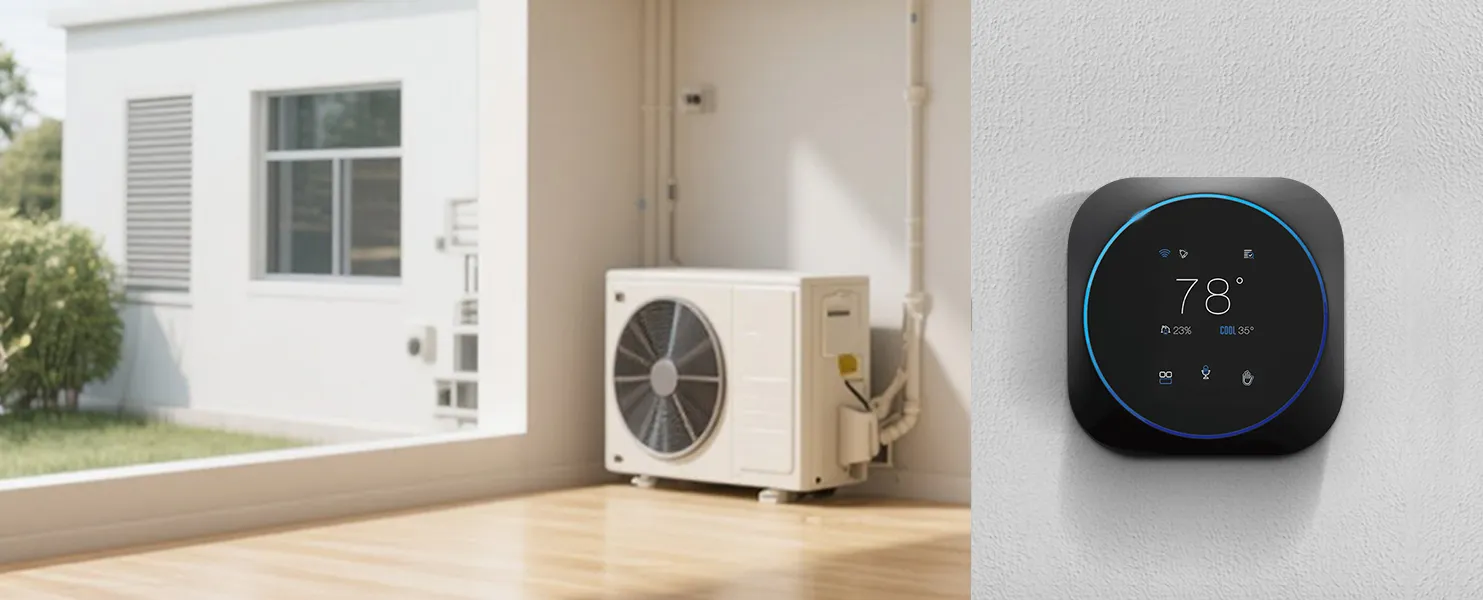

Up to 4-Stage of Heating and 2-Stage of Cooling
Display of room temperature, set temperature and current time simultaneously

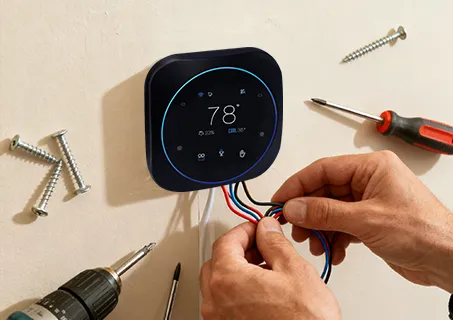

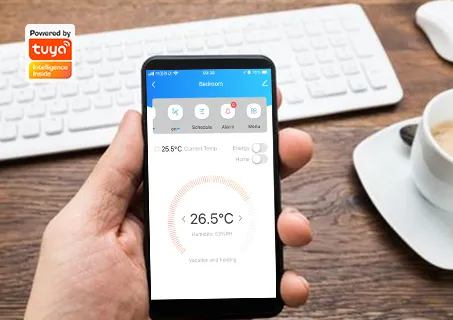

Featuring Built-in Alexa for direct voice control. 7-day scheduling, C-wire required. Remote control via Tuya App

| Model No. | Heat/cool | Cool only | Pipe | Speed fan | Programmable | Window card | Room card | External Sensor | Modbus RTU | WIFI | Power | Manual |
| T18XUTW-7-WIFI(TY) | 4H/2C |
|
|
AUTO/ON | √ |
|
|
√ |
|
√ | 24AC | download |
* Power supply: 24VAC(18-30VAC)60Hz
* Ambient temperature : 32°F~122°F(0°C~50°C)
* Temperature setting range: 41°F~95°F(5°C~35°C)
* Temperature setting accuracy: 1°F(0.1°C),1%RH
* Temperature display range: 41°F~99°F(5°C~37.5°C)
* Humidity range: 20%~90%RH
* Operating temperature range: ±1°F(0.5°C), ±1%RH
* Transport temperature range: 14°F~140°F(-10°C~60°C)
* Output: Relay Load Imax 24V/(1A)
* Wifi Communication protocol : TCP/IP,MQTT
* Wifi Frequency : 2.412GHz-2.4848GHz
* RF antenna emission frequency: 915MHz(not the standard)
* IP rating: IP 21
* Color: black
* Thermostat size: L110mm*W110mm *H28.6mm
* Backplate size: L165mm*W129mm *H10mm
