VAV Airflow, Pressure, Temp Control Solution - Lab & Cleanroom Energy-Saving HVAC

VAV Solutions

Based on LoRa and LoRaWan technology to upgrade the The VAV control system is a highly integrated and intelligent solution for airflow, pressure, and temperature control. It not only ensures stability and safety of the controlled environment but also significantly reduces energy consumption through demand-based air supply strategies. It provides an efficient, reliable, and easy-to-manage complete solution for various applications requiring precise environmental control.

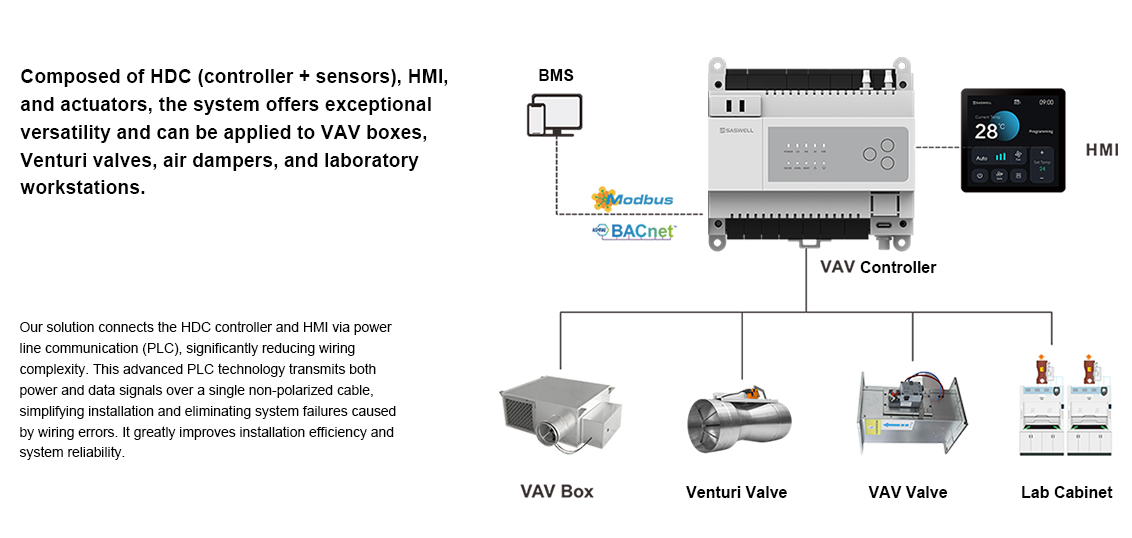

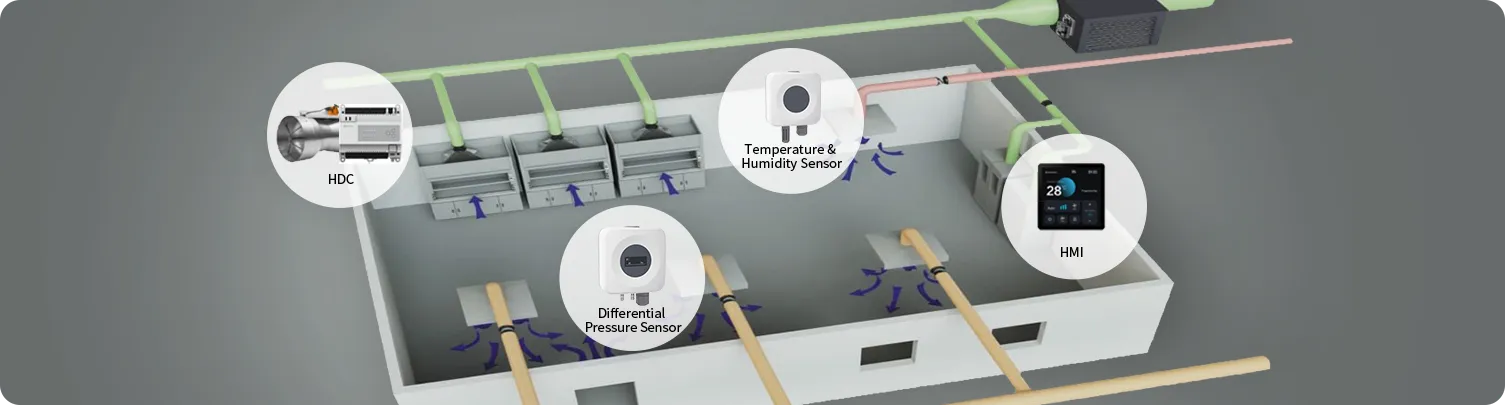

Solution Diagram

Advantages

Proven Reliability

Achieve high-precision environmental control through multi-point adjustments of airflow, pressure, and temperature.
Easy Construction and Maintenance

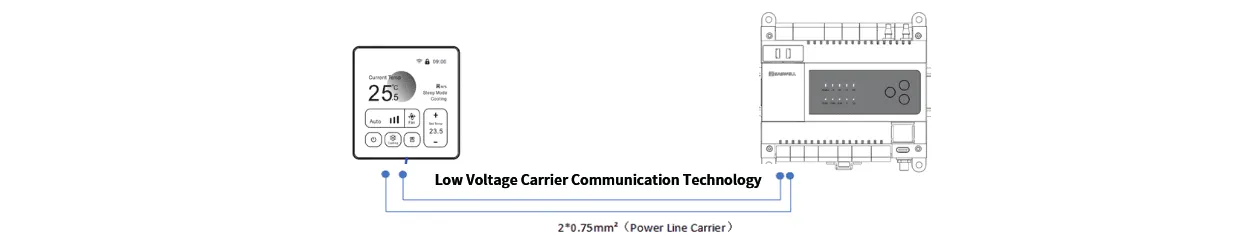

The HDC and HMI communicate via Power Line Communication (PLC) technology, greatly simplifying onsite wiring, reducing installation complexity, and preventing wiring errors due to its polarity-free design. This not only accelerates project implementation but also brings significant convenience for maintenance work.
Intelligent Interaction

Enable intelligent coordination with other devices (such as exhaust fans, fresh air units, and two-stage heaters) to achieve optimal overall control.

System Integration

Supports Modbus and BACnet for easy integration into existing building management systems, enabling centralized monitoring and management.
Energy Efficiency Optimization

Compared to traditional constant air volume systems, our VAV control solution can save up to 40% in energy consumption.
Safety Control and Fault Alerts

The system features self-diagnostics and fault alert functions, assisting maintenance personnel with early intervention.

Application Scenarios

Airflow control for cleanrooms and laboratory enclosures

Pressure control for industrial environments

Zoned temperature control for residential and apartment ventilation systems

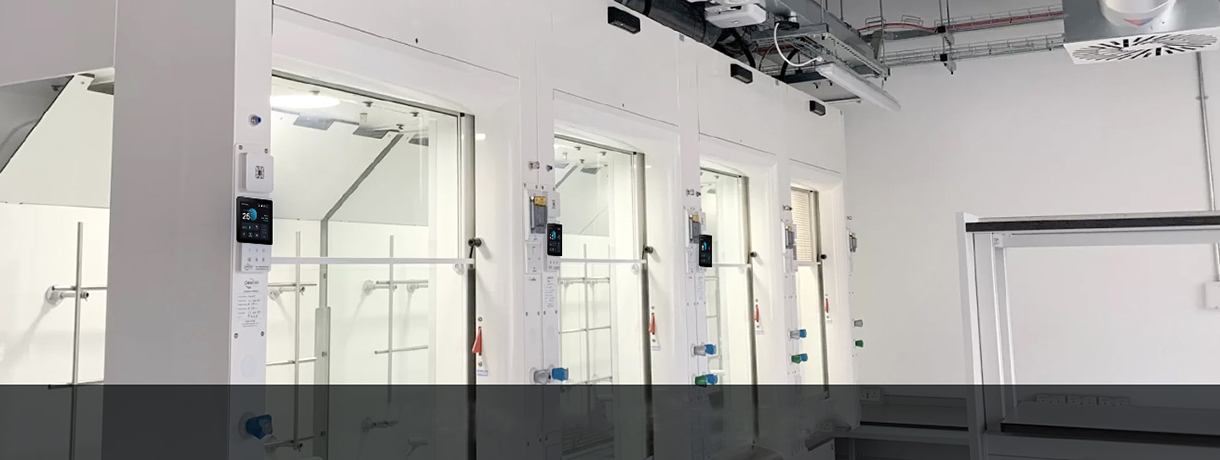

Integrated control of fume hoods, including lighting, sash, and control panel

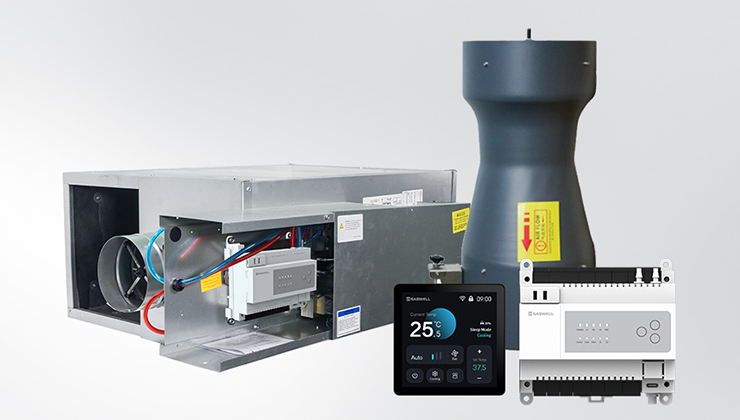

Related Products

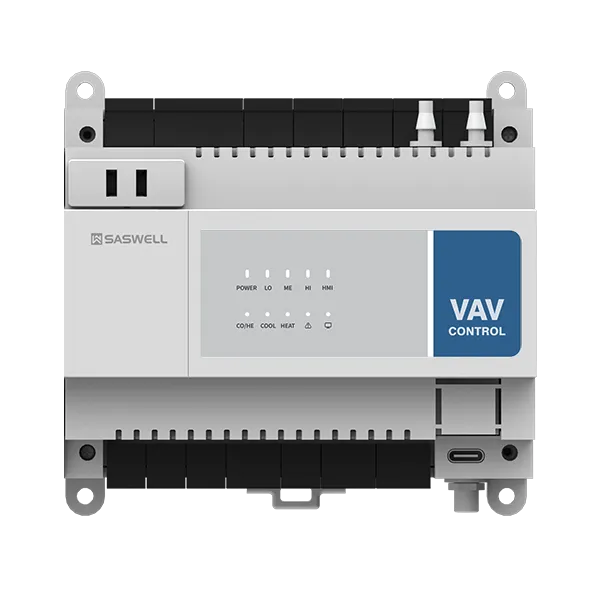

VAV Controller

HDC218-VAV

● Power Input: 100~240VAC / 50~60Hz
● Built-in Power Conversion Module: Provides 24V/1A for damper power supply
● Built-in Digital High-Precision Differential Pressure Sensor
● Supports BACnet MS/TP and Modbus Protocols

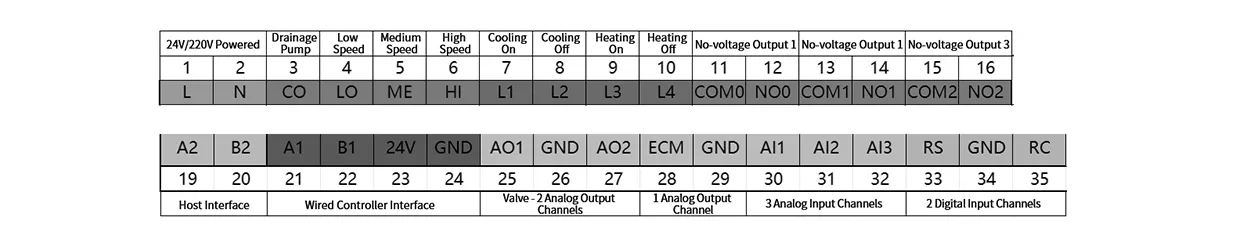

● 3 Analog Outputs (AO), 5 Digital Outputs (DO), 3 Digital or Analog Inputs
● Can be expanded with additional I/O via HDC-IO
● Applicable for VAV Box, Venturi Valve, Variable Air Volume Valve, Lab Fume Hood Control, etc.
● Dimensions: 121 x 113 x 47.3 (mm)

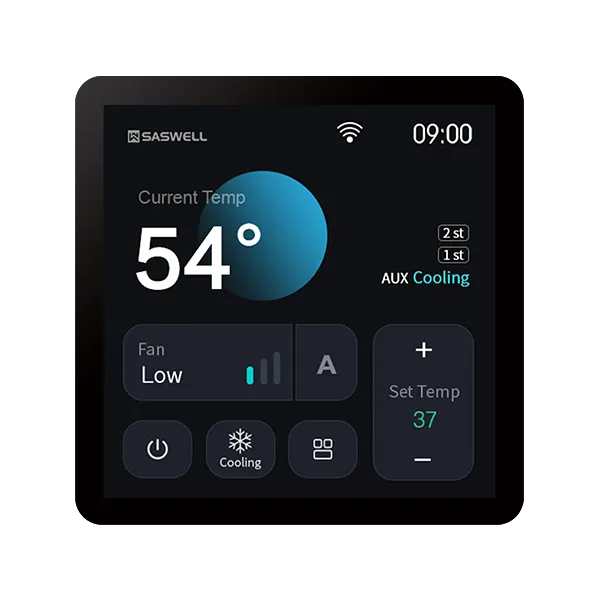

HMI Control

SAS965-HMI

● Power Supply: 9~30VDC, DC Carrier Communication and Power Supply
● Display: 4-inch full capacitive touch color screen, resolution 480*480 dpi
● Temperature Display Range: 0~60°C, accuracy ±0.5°C
● Humidity Display Range: 10~99%, accuracy ±5%
● Interface: 2-wire DC carrier communication; external NTC sensor
● Optional Wi-Fi Function: Supports remote control via mobile app
● Dimensions: 86*86*11mm
