Smart Radiator Control System Solutions for B2B/OEM Partners

Smart Radiator Control System

In the increasingly competitive European heating market, simply offering high-quality radiators is no longer sufficient. Consumers are seeking more efficient, comfortable, and energy-saving smart heating experiences. Our hydronic smart control system is the perfect tool for gaining a competitive edge and enhancing your brand value.

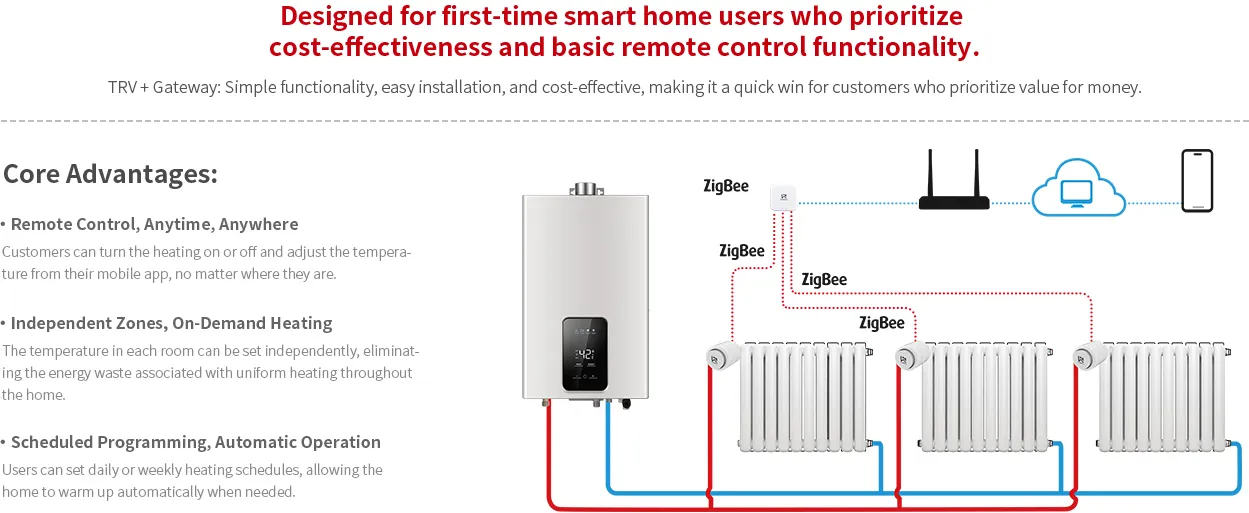

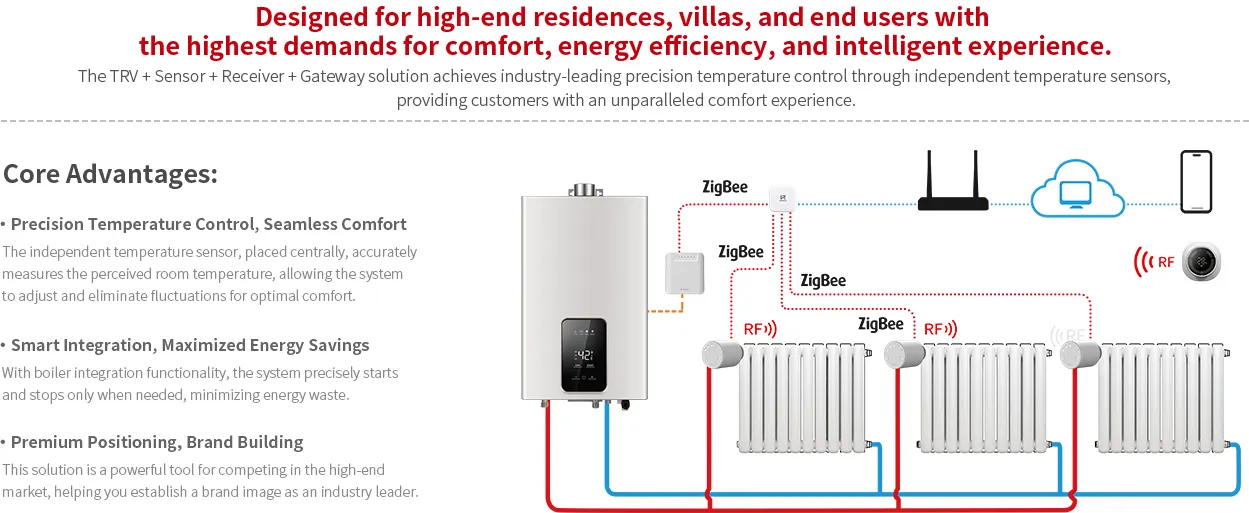

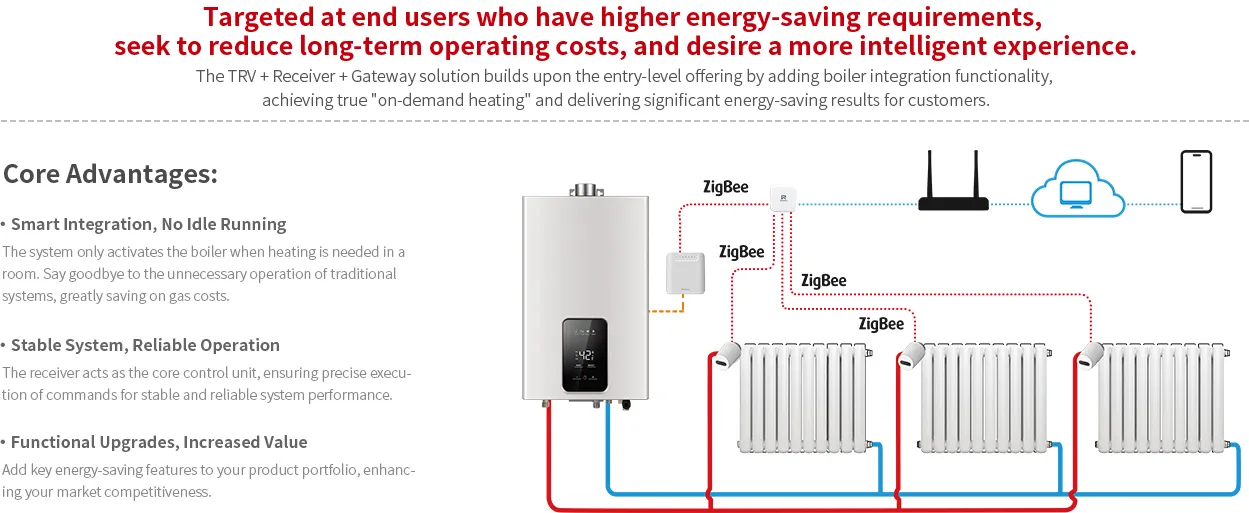

System Principle

We offer three flexible and customizable solutions to help you easily meet the needs of different customer segments.

Advantages

Expand Product Line

Easily expand your product range, upgrading from a single radiator supplier to a comprehensive heating solution provider.
Enhance Brand Strength

Establish an innovative, efficient, and energy-saving brand image to stand out in the competitive market.

Increase Profit Margins

High-value-added smart products can bring you higher profit margins.
Seize Market Opportunities

Meet the growing consumer demand for smart home solutions and lock in the future market.

Application Scenarios

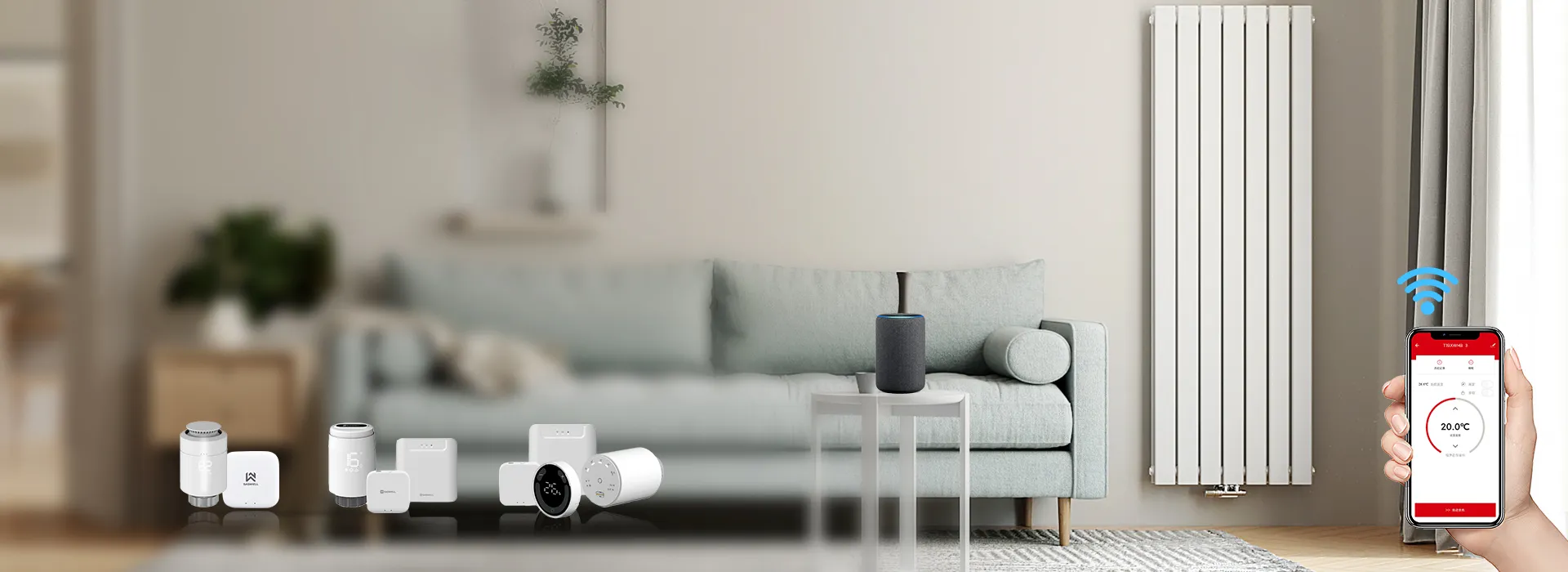

Residential

Apartment

Related Products

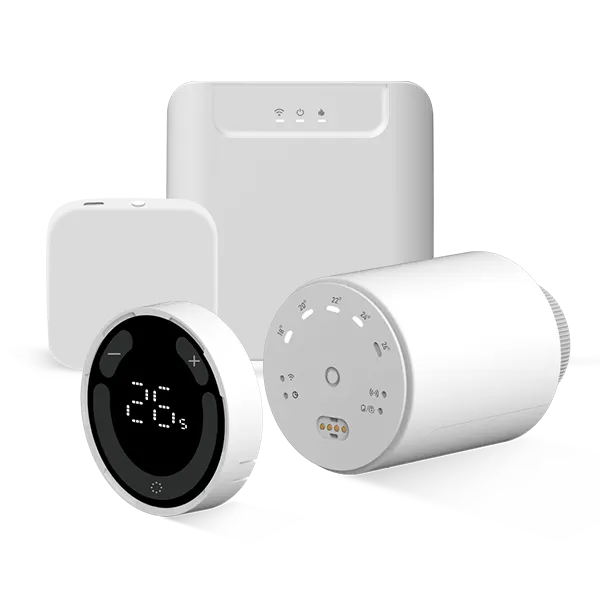

Gas Boiler Water Underfloor Heating Temperature Controller Kit

GEM208S-TF+GEM208V-TFZ

The TRV technical specification
● TRV power source: 2*AA 1.5V batteries(LR6) ● Sensor powersource: 2*AAA1.5Vbatteries(LR03)
● Temperaturesetting accuracy: 0.5℃ ● Temperature display range: 0-50°C
● Operation temperaturerange: 5-30°℃ ● Frequency: 2.4GHz/868MHz
● RF transmission distance: 60m in open air ● Zigbee wireless transmit range: 30m in open air
● The sensor dimension: Φ53.6mm*12.7mm ● TheTRVdimension: 55mm*86.3mm
The Gateway technical specification
● Power supply: 5V-1A ● Workingtemperature: -10~55°℃
● Working humidity: 10~90%RH(noncondensation) ● Wirelesstechnology: 2.4GWiFi,Zigbee
● Dimension: 60.5x60.5x16.1mm

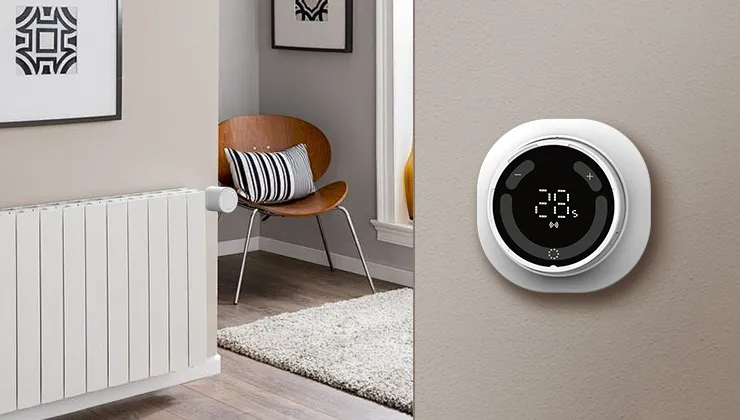

The thermostattechnical specification

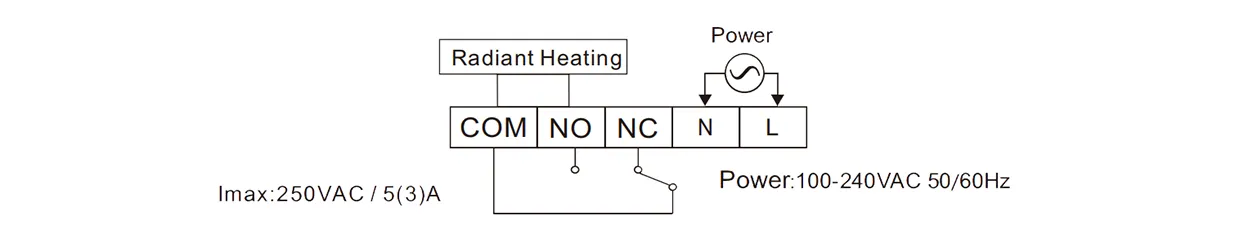

● Power Supply Voltage: 100-240VAC 50/60Hz
● Wireless Protocol Type: Tuya Zigbee
● Radio Frequency Range: 2.4GHz
● Protection Level: IP21
● Storage and Transport Temperature: -10°C ~ 70°C
● Operating Environment: 0°C ~ 40°C, 10% ~ 95% RH (Non-condensing)
● Wireless Transmission Range: 30m in open space

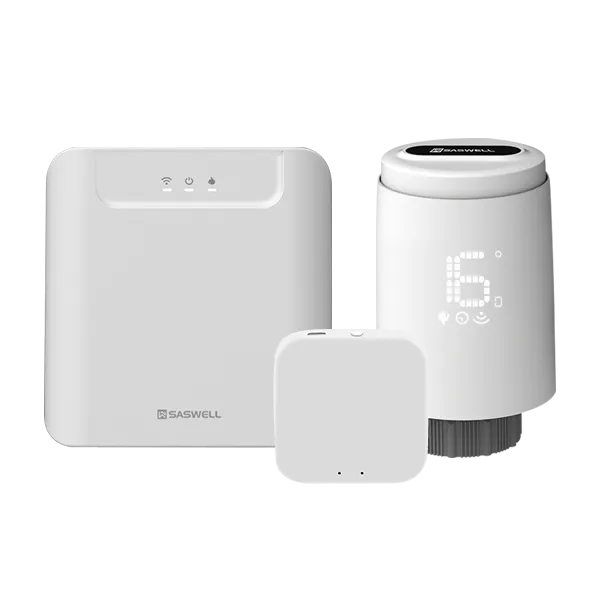

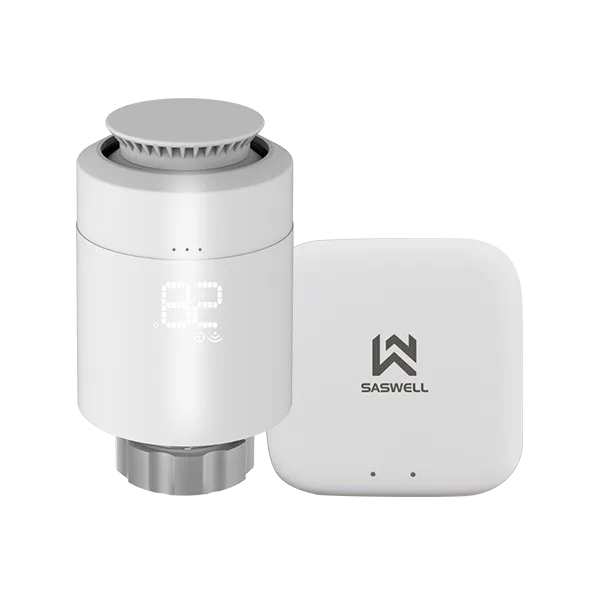

Smart Radiator Thermostat Control Kit

SEA888+SAS2024WHB+TYGWZB-01N

The TRV technical specification
● Power supply: 2x1.5V AA alkalinebatteries（LR6) ● Battery life: 1year
● Temperature display: :0~50°℃ ● Temperaturesettingrange: 5~30°℃
● Temperaturedisplayaccuracy: 0.5°℃ ● Frequency: 2.4GHz
● Wirelesstransmitrange: Open 30m in the air ● Dimension: 55*95.2mm
● Storagetemperature&humidity: -10~60°C，25~90%RH(noncondensation)
● Operationtemperature&humidity: 0~50°C,25~90%RH（noncondensation）
The Gateway technical specification
● Power supply: 5V-1A ● Workingtemperature: -10~55°℃
● Working humidity: 10~90%RH(noncondensation) ● Wirelesstechnology: 2.4GWiFi,Zigbee
● Dimension: 60.5x60.5x16.1mm
The thermostattechnical specification
● Power Supply Voltage: 100-240VAC 50/60Hz
● Wireless Protocol Type: Tuya Zigbee
● Radio Frequency Range: 2.4GHz
● Protection Level: IP21
● Storage and Transport Temperature: -10°C ~ 70°C
● Operating Environment: 0°C ~ 40°C, 10% ~ 95% RH (Non-condensing)
● Wireless Transmission Range: 30m in open space

Bluetooth Smart Radiator Thermostat

SEA802-ZT5

● Power source: 2x1.5V AA alkaline battery (LR6）
● Battery lifetime:1year
● Temperature setting range:5C~30°C
● Temperature setting accuracy:0.5°C
● Temperature display range:0°C~35°C
● Operation temperature range:o°C~50°C
● Shipping & storage temperature:-10°C~60°℃
● Frequency:868MHz
● Wireless transmit range: Open distance ≤10M
● Display: Led screen
● IP class:IP21

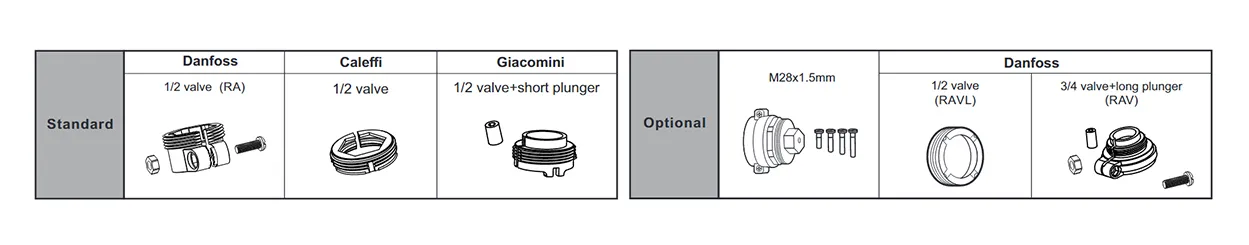

● Connection:M30x1.5mm
