Smart Wired Wireless Control for Heat Pump Radiant Systems

Smart heat pump controls (Heating & Cooling, Wired/Wireless)

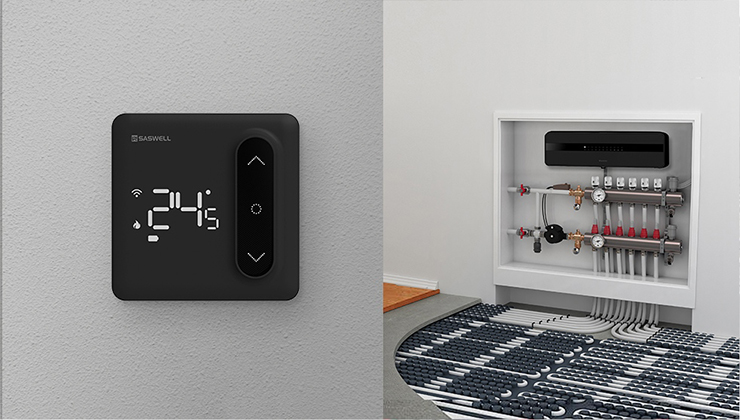

We provide intelligent control solutions for heat pump and underfloor heating systems, offering both heating and cooling functions. Our solutions support both wired and wireless installation, meeting the needs of new residential buildings and home renovations, helping distributors and brands quickly launch high-value-added products. Through flexible customization and open compatibility, we assist our partners in achieving differentiated strategies, enhancing market competitiveness, and meeting the demands of Europe’s energy-saving and smart home trends.

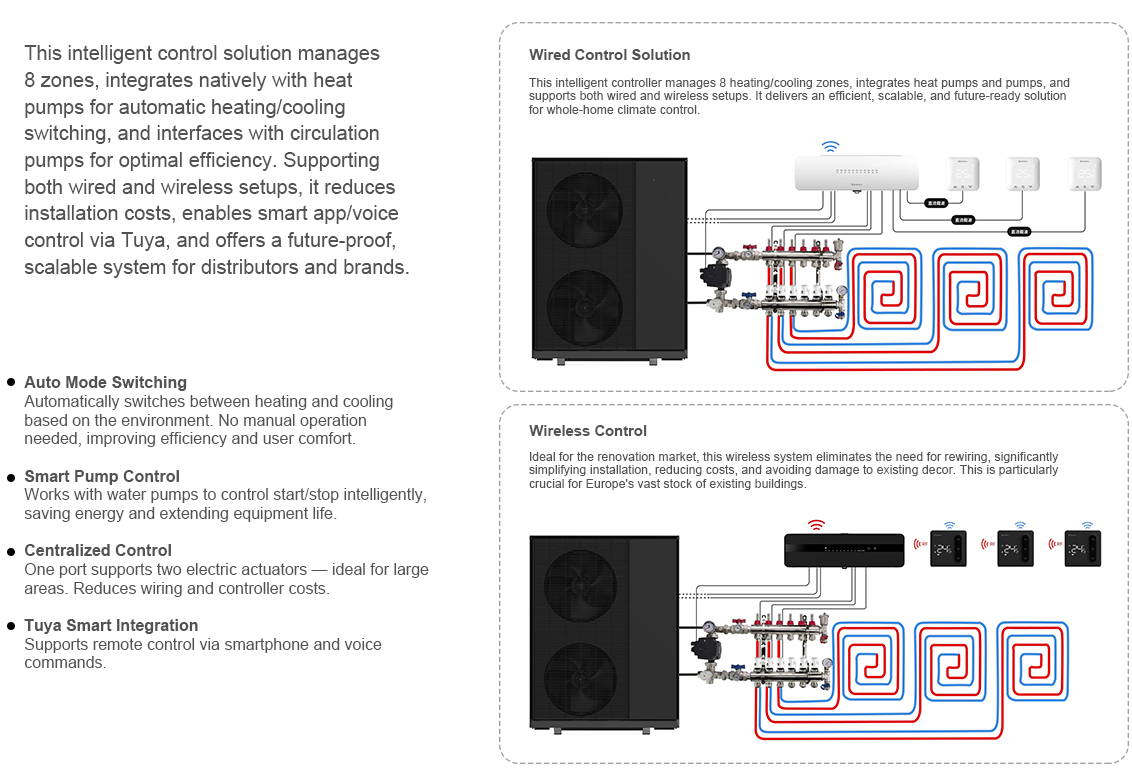

Solution Diagram

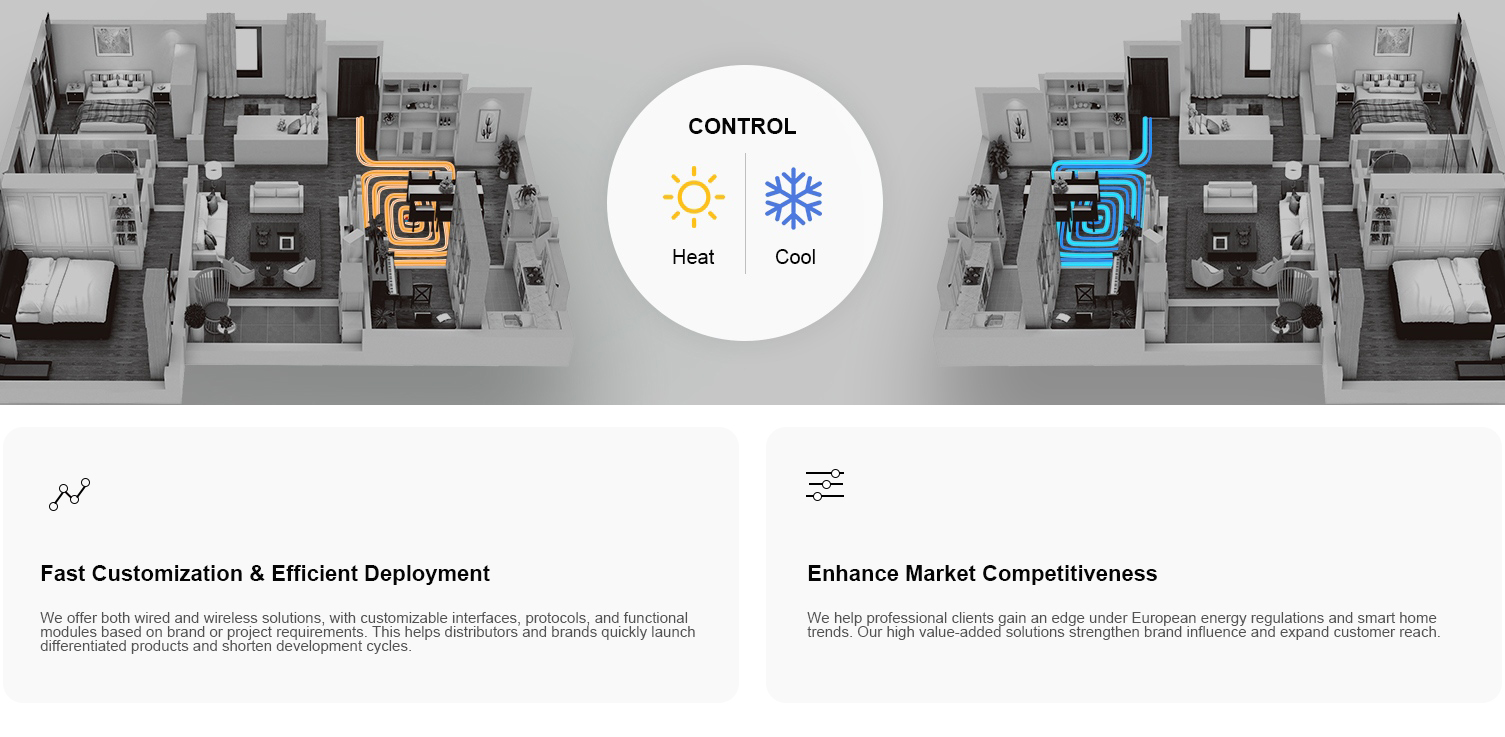

Advantages

Application Scenarios

Large Flat / Spacious Apartment

Villa

Related Products

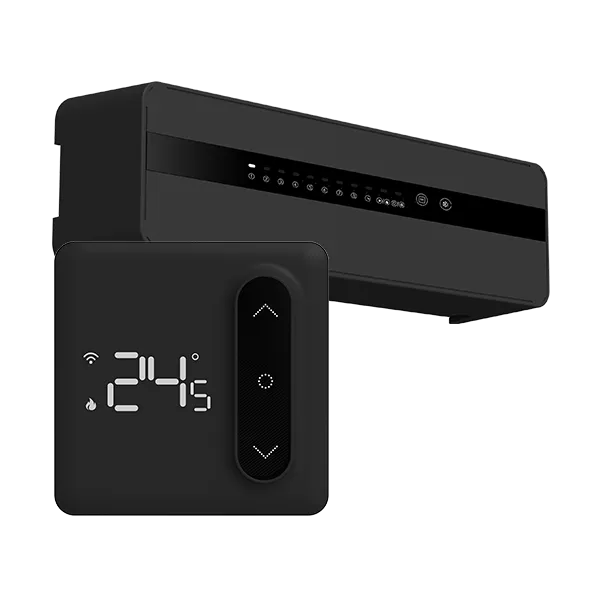

Wireless Heat Pump Control

SAS936BWCHB

SAS936BWCHB-7-DFZ(N)
● Power Supply: 2 x 1.5V AA Alkaline Batteries (LR6 Model)
● Battery Life: 1 year
● Temperature Display Range: 0~50°C
● Temperature Set Range: 5~50°C
● Temperature Display Accuracy: 0.1°C
● RF Wireless Transmission Distance: 100 meters (in open space)
● Zigbee Wireless Transmission Distance: 30 meters (in open space)
● Dimensions: 100 x 100 x 19.6 mm
● Storage Temperature and Humidity: -10~60°C, 25~90% Relative Humidity (non-condensing)
● Operating Temperature and Humidity: 0~50°C, 25~90% Relative Humidity (non-condensing)

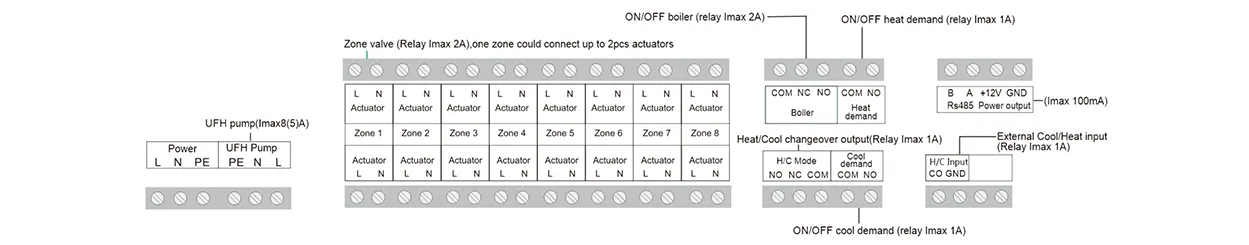

SCU217DE-485(N)
● Power Supply: 100-240VAC 50/60Hz
● Maximum Current: 10A
● Load Current Output: 250VAC 8(5)A
● Operating Temperature: 0°C~50°C, 0-80% RH
● Storage Temperature: -10°C~60°C, 0-90% RH
● Dimensions: 298 x 88 x 64 mm

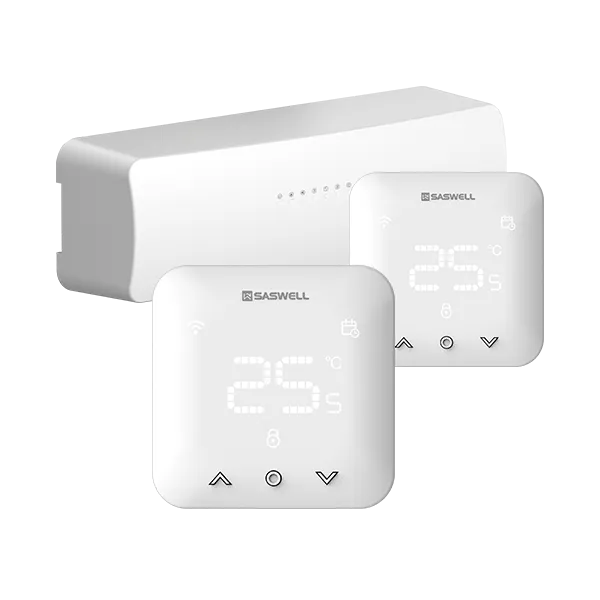

Wired Heat Pump Control

SAS931XWCH-XT-WIFI(TY)

Master [SAS931XWCH-0-BUS-WIFI(TY)] / Slave [SAS931XWCH-0-BUS-S]
● Power and Signal Input: DC12~18V, non-polar carrier input(Power to control center, max 100mA)
● Storage Environment Temperature and Humidity: -10~60°C, 0~90% RH (non-condensing)
● Operating Environment Temperature and Humidity: 0~50°C, 0~80% RH (non-condensing)
● Wi-Fi Antenna Transmission Frequency (Main Controller): 2.4GHz
● Wi-Fi Wireless Transmission Distance (Main Controller): 60m in open space
● Temperature Display Range: 0~50°C
● Display Accuracy: 0.1°C
● Color: White
● Dimensions: 86 x 86 x 13 mm
● Protection Rating: IP21

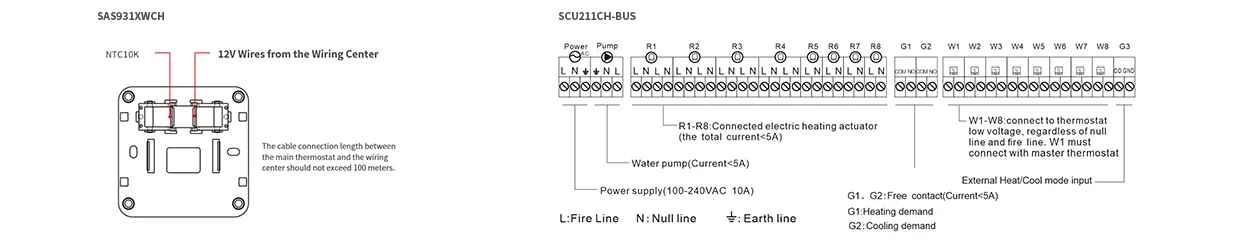

SCU211CH-BUS
● Power Supply: 100-240VAC 50/60Hz (Maximum Current 10A)
● Storage Environment Temperature and Humidity: -10~60°C, 0~90% RH (non-condensing)
● Operating Environment Temperature and Humidity: 0~50°C, 0~80% RH (non-condensing)
● Color: White
● Dimensions: 298 x 88 x 66 mm
● Protection Rating: IP40
