Dew Point Control & Smart Sensing Solutions for Constant-Environment HVAC

Dew Point Control & Sensing Solutions for Smart Constant-Environment Buildings

In the high-end residential market, Triple-Constant and Five-Constant systems (maintaining temperature, humidity, oxygen, cleanliness, and noise) have become mandatory standards for quality delivery. However, the complexity of system integration, poor multi-brand compatibility, and challenges in commissioning and maintenance place significant pressure on many integrators.

Solution Diagram

A deep understanding of the bespoke needs of high-end real estate projects.0ur products feature:
① Multi-system control - Fan coil, radiant, and fresh air systems in one.
② Custom design -Compatible with Legrand, Siemens, and customizable faceplate colors
③ Tailored functions - Minimalist or multi-key panels with logic and layout customized to project needs.

Advantages

Proven Reliability

Successfully deployed in tens of thousands of projects, with a failure rate below 0.2%, providing the most robust assurance for your projects.
Professional Custom Services

More than just selling products, we are your technical partner, offering full support from solution design and product customization to on-site commissioning.
Leading Technological Edge

Always at the forefront of the industry, with multiple core patents, ensuring your projects maintain a unique competitive advantage in the market.

Application Scenarios

Villa

Luxury Residence

Related Products

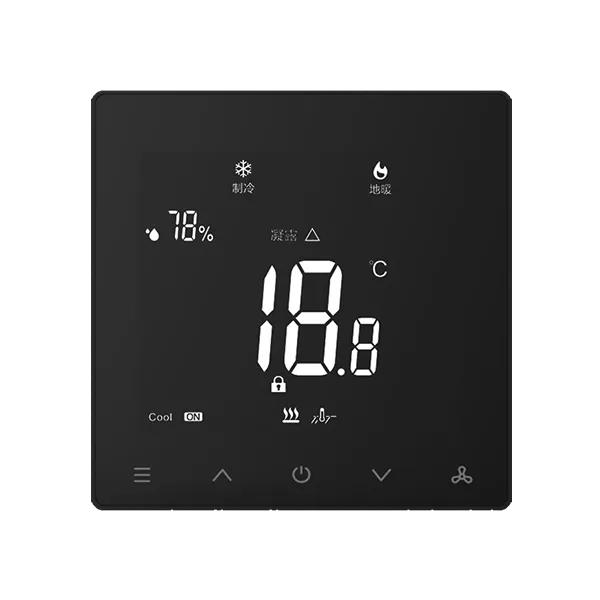

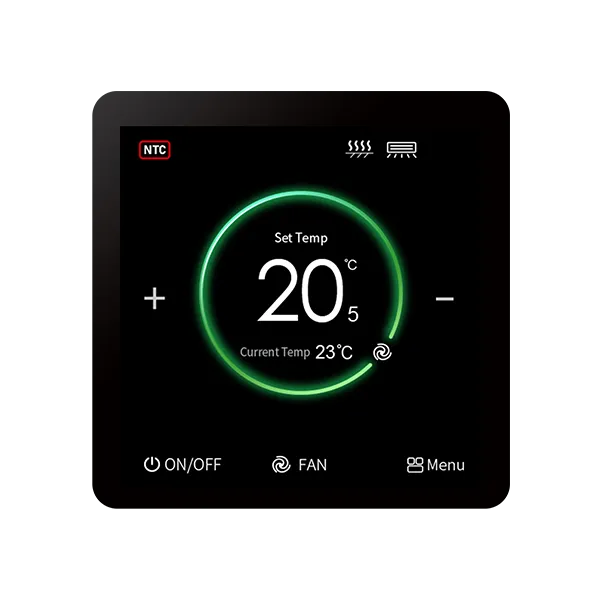

Condensation-Free Thermostat

SAS965FCH-485

● Power Supply Voltage: AC 85~250V, 50/60Hz (Self Power Consumption < 3W)
● Room Temperature Display Range: 0°C ~ 50°C
● Room Humidity Display Range: 5% ~ 95%
● Dew Point Temperature Measurement Range: 0°C ~ 50°C
● External Temperature Measurement Range: 0°C ~ 60°C
● Set Temperature Display Range: Cooling 20°C ~ 30°C, Heating 16°C ~ 26°C
● Room Temperature Display Accuracy: 0.1°C
● External Temperature Sensor Type: NTC 10K
● Storage and Transport Environment: Temperature -20°C ~ 70°C; Humidity 5% ~ 95% (Non-condensing)
● Communication Mode: RS485 Standard Modbus
● Product Dimensions: 86x86x12mm

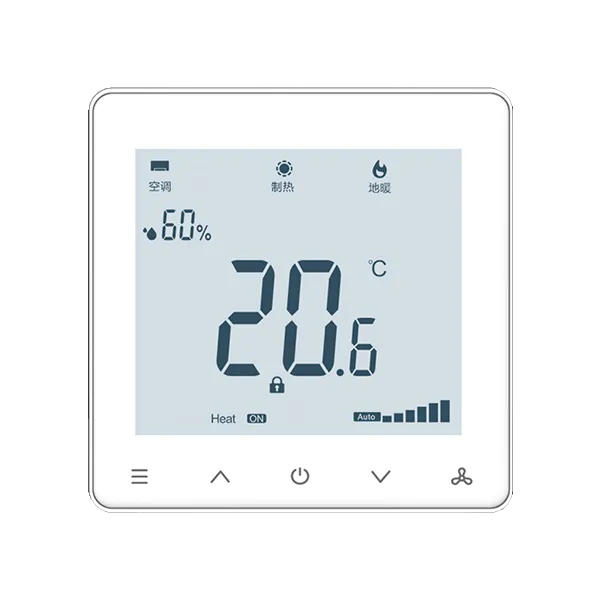

Condensation-Free Thermostat

SAS922BFCH-485

● Power Supply Voltage: AC 85~250V, 50/60Hz (Self Power Consumption < 3W)
● Room Temperature Display Range: 0°C ~ 50°C
● Room Humidity Display Range: 5% ~ 95%
● Set Temperature Display Range: Cooling 20°C ~ 30°C, Heating 16°C ~ 26°C
● Room Temperature Display Accuracy: 0.1°C
● Storage and Transport Environment: Temperature -20°C ~ 70°C; Humidity 5% ~ 95% (Non-condensing)
● Communication Mode: RS485 Standard Modbus
● Installation Size: Standard 86 Box
● Product Dimensions: 86x86x12mm
● Protection Level: IP21

Condensation-Free Thermostat

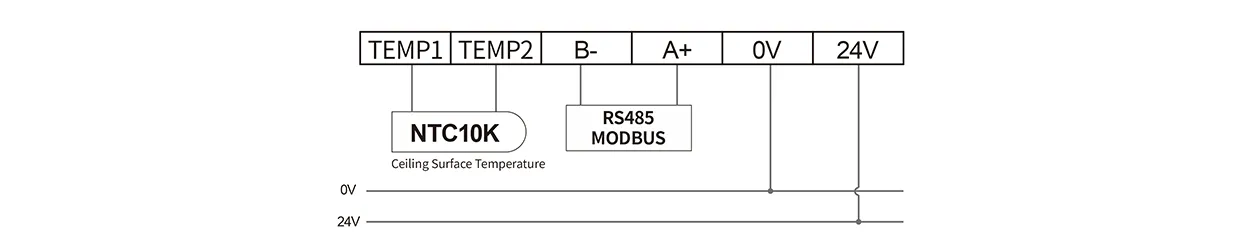

SAS922BXK-S24-485

● Power Supply Voltage: 12~24VAC/DC
● Room Temperature Display Range: 0°C ~ 50°C
● Room Humidity Display Range: 5% ~ 95%
● Dew Point Temperature Measurement Range: 0°C ~ 50°C
● External Temperature Measurement Range: 0°C ~ 60°C (Measurement range of the external temperature sensor)
● Set Temperature Display Range: Cooling 20°C ~ 30°C, Heating 16°C ~ 26°C
● Room Temperature Display Accuracy: 0.1°C
● External Temperature Sensor Type: NTC 10K
● Storage and Transport Environment: Temperature -20°C ~ 70°C; Humidity 5% ~ 95% (Non-condensing)
● Communication Mode: RS485 Standard Modbus
● Product Dimensions: 86x86x12mm

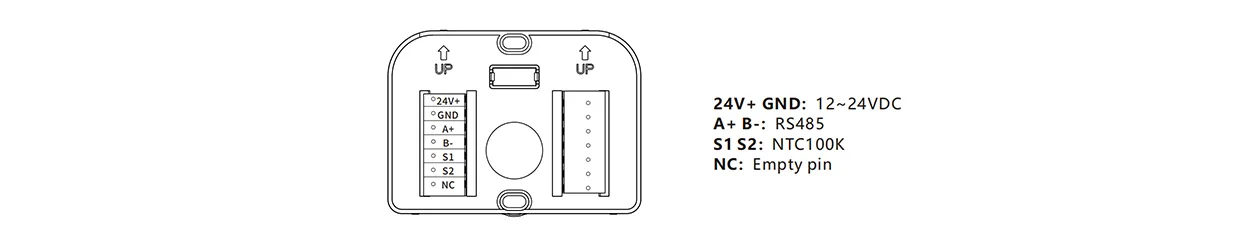

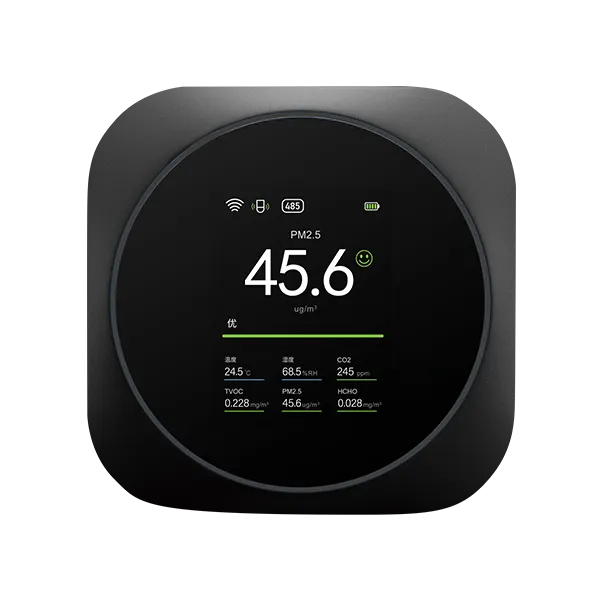

5 in 1 Air Quality Detector

T18XAIR-485-WiFi（TY）

● Power Input: 12~24VDC
● CO2: 400~2000ppm
● PM2.5: 1~999 μg/m³
● TVOC: Excellent/Good/Poor
● HCHO: 0~1.00mg/m³
● Temperature and Humidity Measurement Range: -10°C ~ +50°C, 0% ~ 95% RH
● NTC 100K Temperature Measurement Range: -10°C ~ +50°C
● Light Sensor & Motion Detection: Automatically adjusts screen brightness, auto wake-up
● Display Screen: 2.8-inch Color Display
● RS485 Communication Interface: RTU Format Modbus Protocol, 2-wire (Dip switch address configuration)
● Wireless Communication: Tuya WiFi (2.4G)
● Product Dimensions: 110x110x28.6mm

Temperature and Humidity Sensor

SAS922B-S24-485
