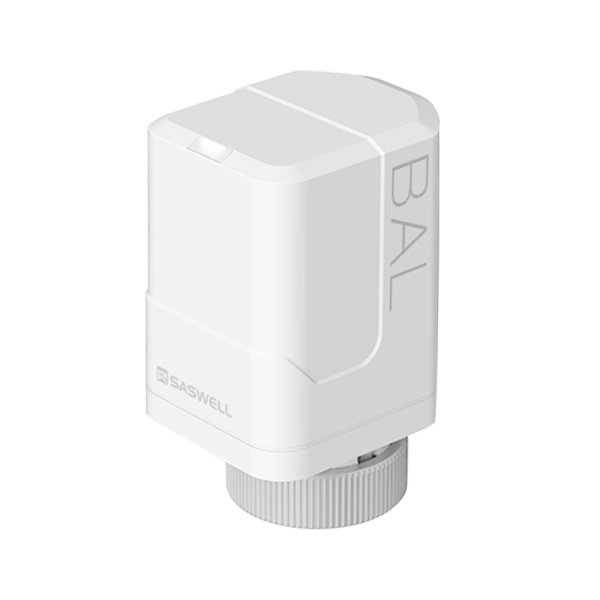

Modulating 0-10V Actuator

SA905-V

Get a quote

M30x1.5 threaded connection

Max stroke 6mm

Auto-zero self calibration

Stroke time 7.5sec/1mm, Force 140N~180N

Enclosure protection IP54

With 0.9M electric wire

Linear charactreristic (adjustable for equal-percentage characteristic)

Home Product Commercial Valve amd Actuators Fan Coil Actuators

Product Description

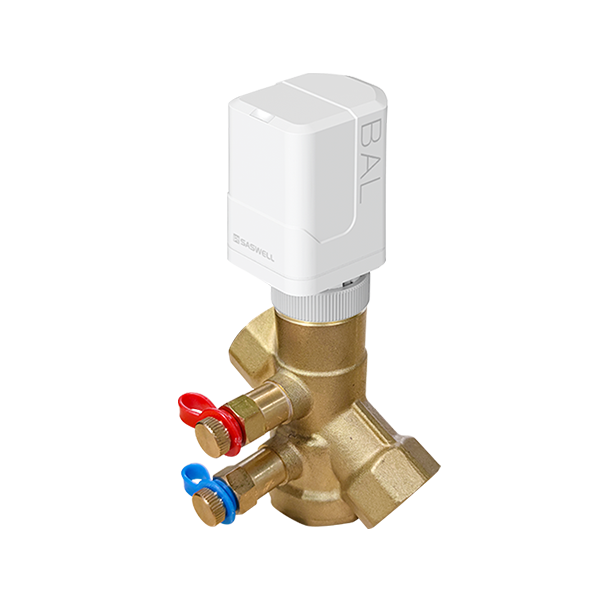

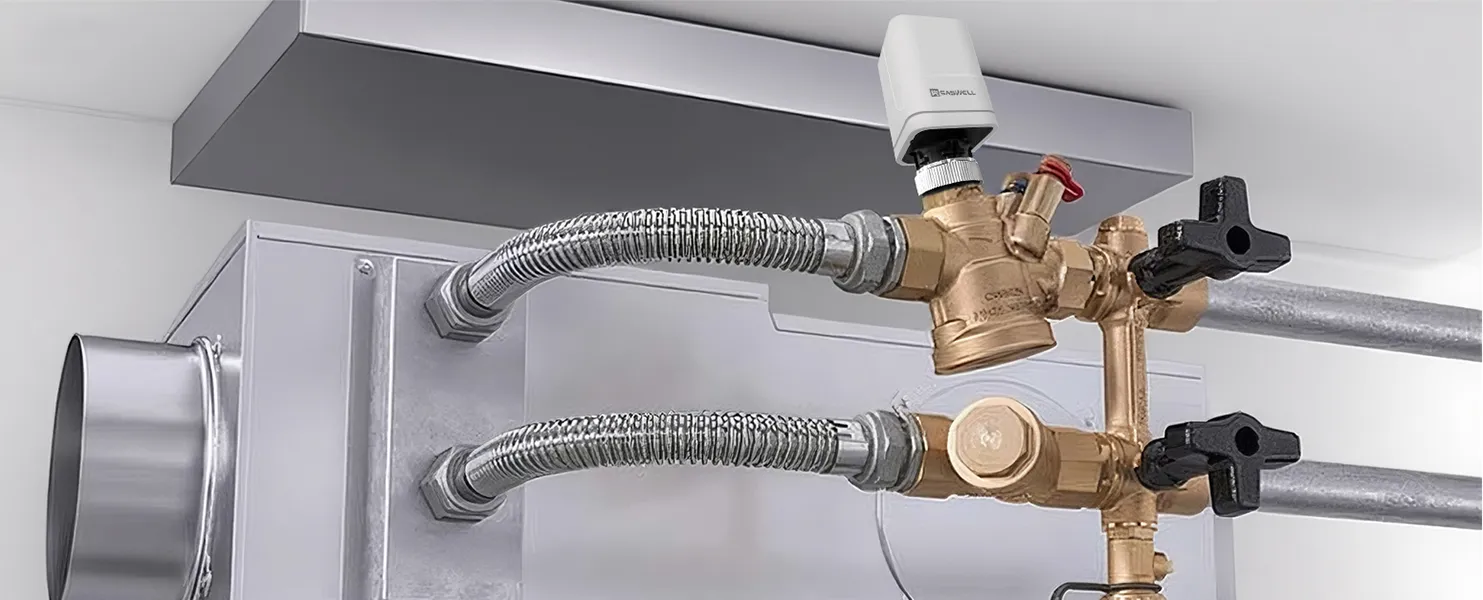

The SA905-V is a 0–10V modulating actuator designed for precise flow control in FCU, VAV, and AHU systems. When paired with a PICV valve, it enables high-precision room temperature regulation within ±0.1°C. It can upgrade standard PICVs to high- performance versions—offering flow presetting, easier operation, and more accurate maximum flow limitation via app control. This smart upgrade not only delivers all the functions of high-end PICVs but also significantly reduces overall system costs.

Product Selector

Model No.	Nominal Force	Voltage	Stroke	Control Signa	Manual
SA905-T(220V)	80-130N	220VAC	4.5mm	Automatic hydronic balancing valve actuator	download
SA905-T(24V)	80-130N	24VAC	4.5mm	Automatic hydronic balancing valve actuator	download
SAS905-V(220V)	160N	220VAC	6mm	Modulating 0-10V	download
SAS905-V(24V)	160	24VAC	6mm	Modulating 0-10V	download
SAS905-S	80-130N	220VAC	4.5mm	ON/OFF	download

Product Parameters

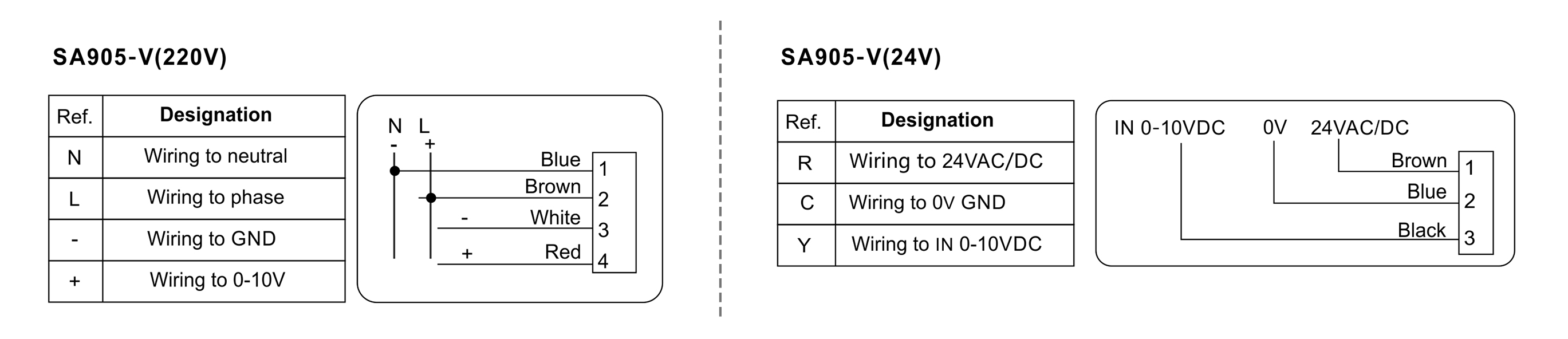

Power supply: SA905-V(220V): 100~240VAC 50/60Hz,

SA905-V(24V): 24V(18-36V)AC 50/60Hz

Control signal: 0-10VDC

Enclosure protection: IP54

Threaded connection: M30x1.5

Working ambient temperature: 0°C to +50°C

Working fluid temperature: 0°C to +95°C

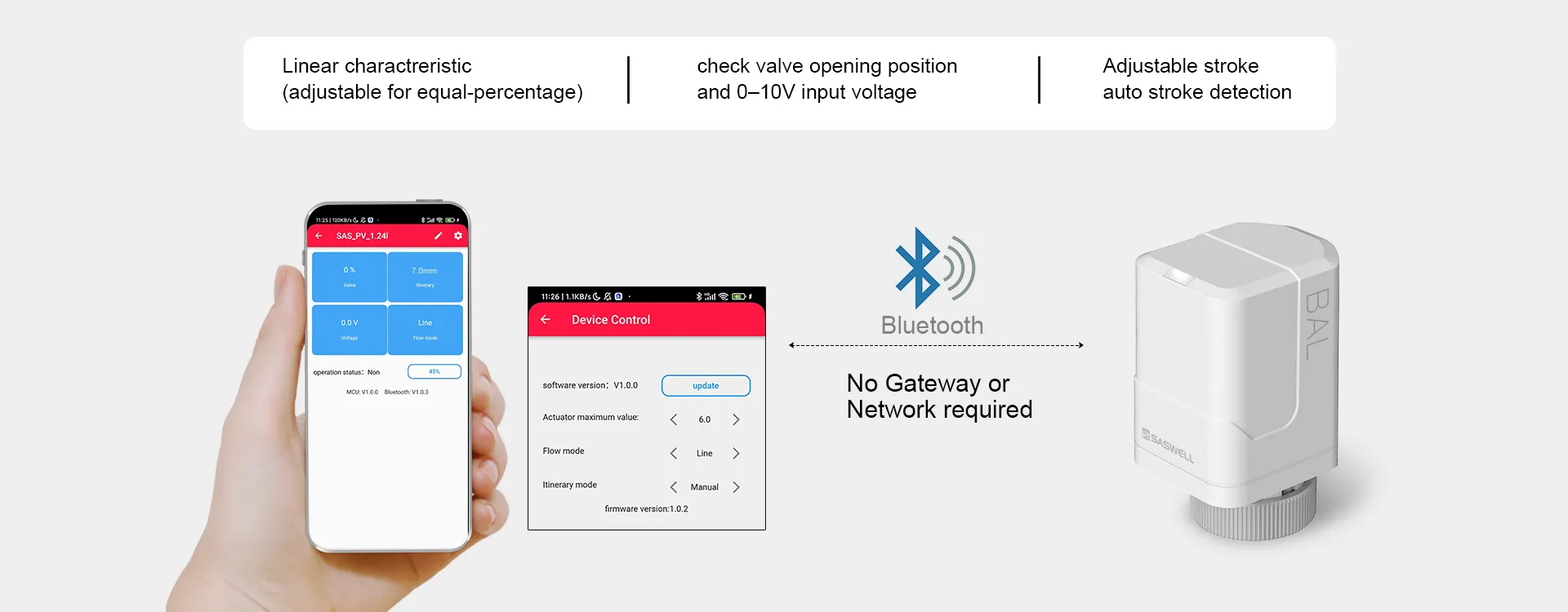

Smart app control for maintenance and compatibility

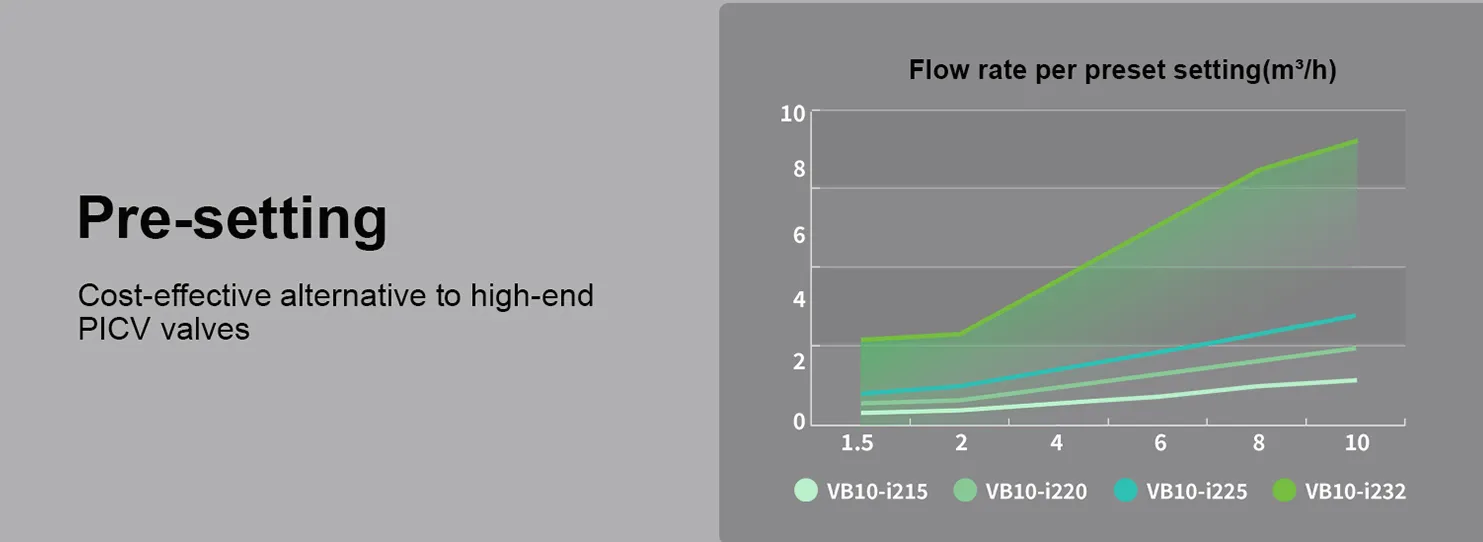

Using the SA905-V, the maximum flow rate of the PICV can be limited via an app, enabling low-end PICVs to achieve the same functionality as high-end models. This also simplifies operation and allows for more precise maximum flow setting.

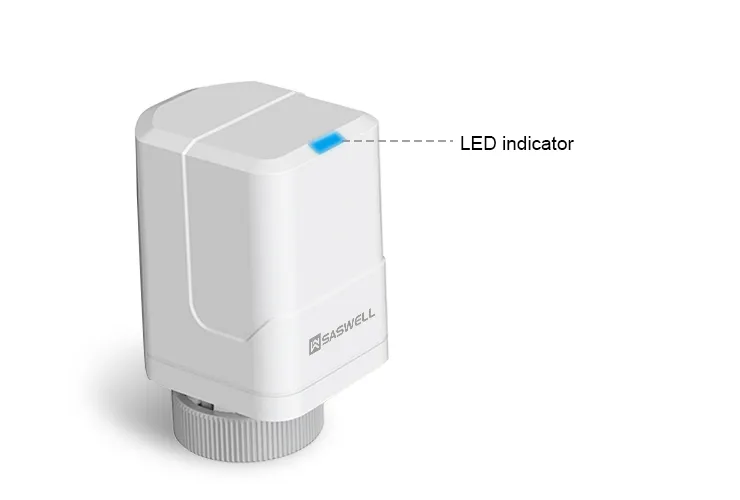

LED status indicator for clear device monitoring

Keep on（Green）: Normal working standby state

Flashing（Green）: In operation

Keep on（Blue）: Bluetooth connection successful

Fast and precise response

Stepper motor replaces wax core for precise and quicker temperature adjustments.

Actuation time: 150 seconds to open, 30 seconds to close

Related Products

Power-off auto-reset linear actuator

Power-off auto-reset linear actuator

SA905-S

Modulating 0-10V Actuator

Modulating electromechanical linear actuator

SA905-V

Modulating electromechanical linear actuator

Stroke time 7.5sec/1mm, thrust 160N

OTA

Bluetooth communication
