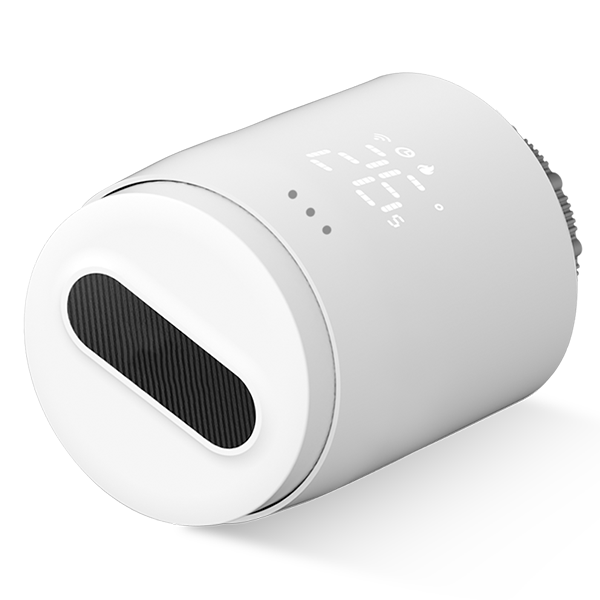

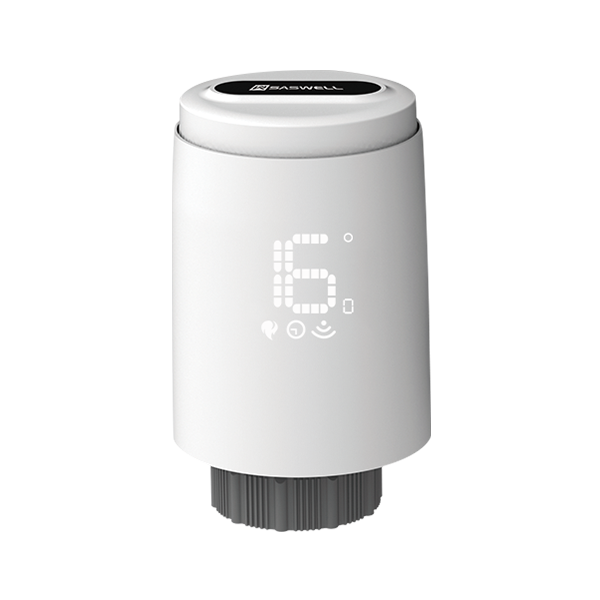

ZIGBEE 2.0 TRV

SEA888-Z03

ZIGBEE 2.0 TRV

Get a quote

Support Zigbee 2.0 connectivity

Power for 2x1.5V batteries

99% compatibility with common radiator valve models

Remote control via app and voice control

Anti-freezing protection

Child lock function

Home Product Residential Valves and Actuator Smart radiator thermostats (TRV)

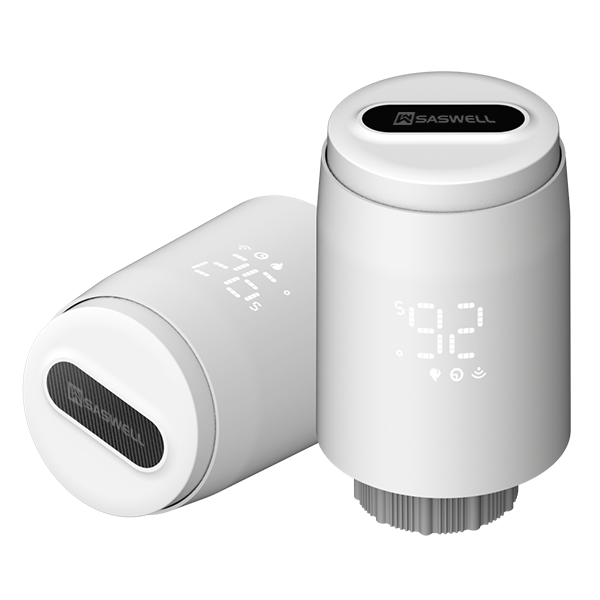

Product Description

The TRV is installed on the radiator and automatically adjusts the hot water flow to maintain the set room temperature. It enables remote temperature control via a smartphone or voice assistant. Support Zigbee 2.0 protocol.

Product Selector

Model No.	Programmable	LoRaWAN	ZIGBEE 2.0	WIFI	Power	Manual
SEA888-Z03	√		√		Battery	download

Product Parameters

Power source: 2x1.5V alkaline AA batteries(LR6)(Don't use the rechargeable battery)

Temperature setting accuracy: 0.5°C

Temperature display range: 0°C~50°C

Setting temperature range: 5°C~30°C

Shipping & storage temperature: -10°C~60°C

Network frequency: Zigbee 2.0

Wireless transmit range：Open distance 30M

Display screen:LED

IP class: IP21

Connection: M30x1.5mm

Smart scheduling

Support 5+2 / 5+1+1 / 7 days individual programming setting in the “Tuya Smart” app. Start with a basic schedule, then adjust it whenever you like, so you don’t waste energy heating an empty home.
Control individually

Almost all common radiator Valves can be replaced. Control the temperature in each room individually. See all the rooms that you control with thermostat in the APP. Check current temperature, create heating schedule and adjust individual room temperatures on the go.
Voice remote control

Free your hands. Just say to your smart home system like Amazon Alexa, Google assistant, and change your home heating setting without any touch.

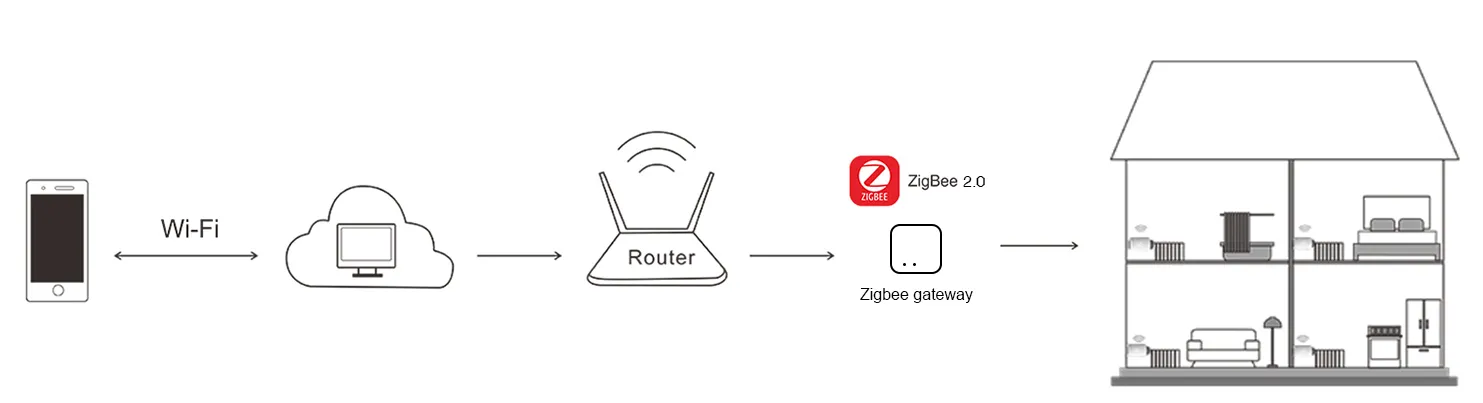

How it works?

Turn your heating up or down in the “TuyaSmart” app. The Zigbee Gateway, which is connected to the internet via the router, transmits this information wirelessly to your Smart TRVs.

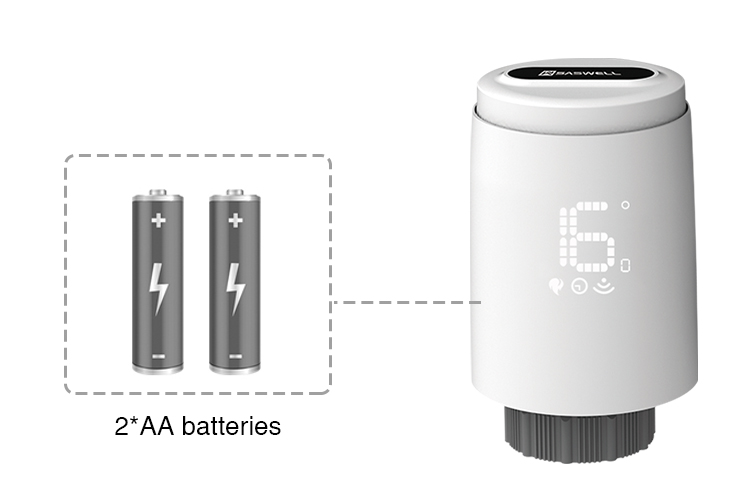

Efficient Power, Smarter Control

Powered by 2 AA batteries, the TRV offers reliable and efficient performance with easy battery replacement and no wiring required.

Tips:
* Battery life: 1 year

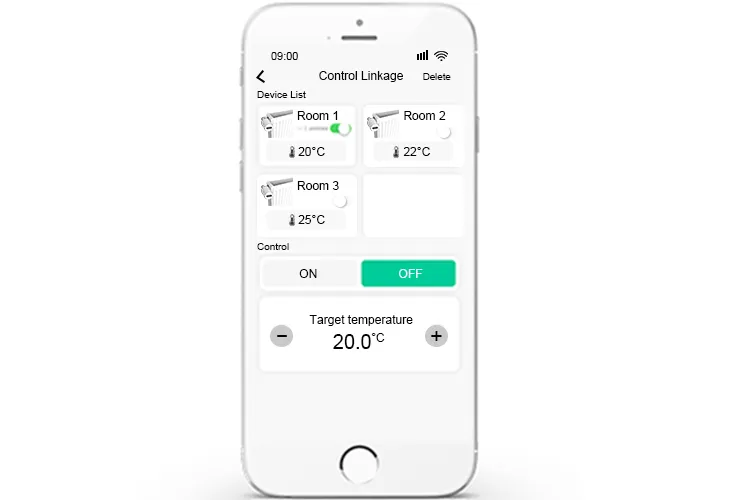

Easy to manage your TRVs

When there is multiple TRVs in a house, create groups to realize center control of several TRVs.Set a master control in a group, so all the other TRVs in same group working accordance with the master control (ON/OFF/ Setting temperature).

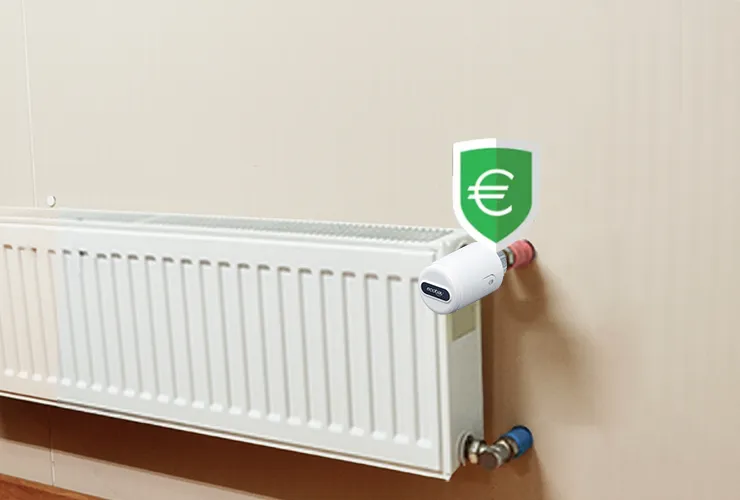

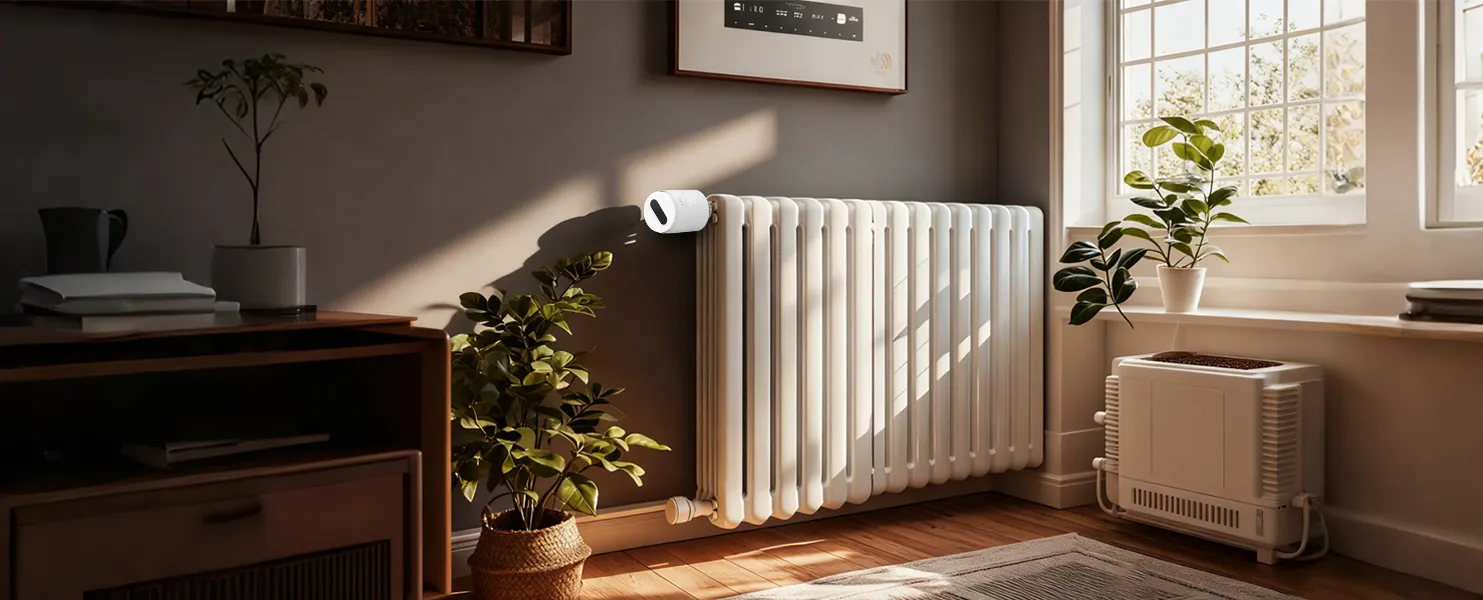

Installation on radiator

Smart Radiator Valve is install on the radiator. Regardless of who manufactured your heating system, it will help you save money and energy.

Smart features that make a difference

Designed for comfort, safety, and convenience at your fingertips.

Child lock function

The Child lock can be used to prevent others changing TRV setting.
Anti-freezing protection

The valve will be opened when the temperature is below 5°C, when the temperature rises to 8°C, the valve will be closed.
The anti-scale function

When you leave home for long time, TRV will open valve running 30 seconds every two weeks to prevent scale from clogged.
