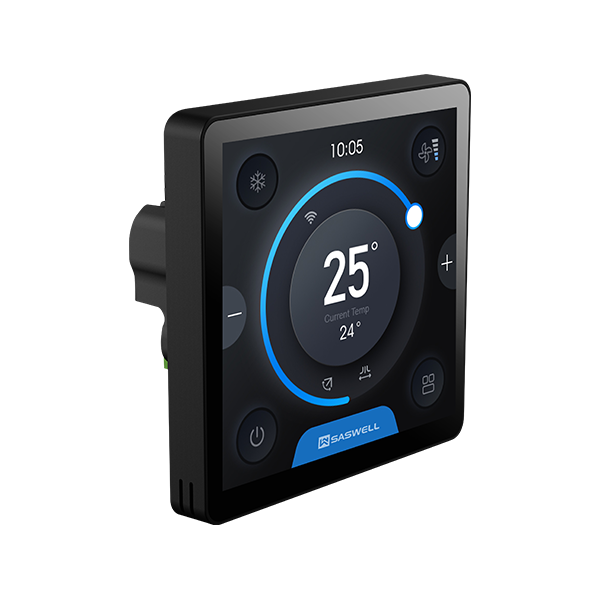

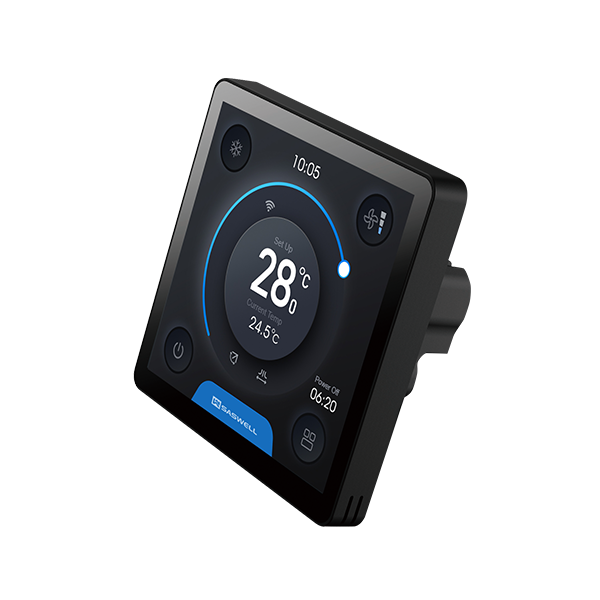

Smart wired controller

SAS965XK-485-WIFI-S12

Get a quote

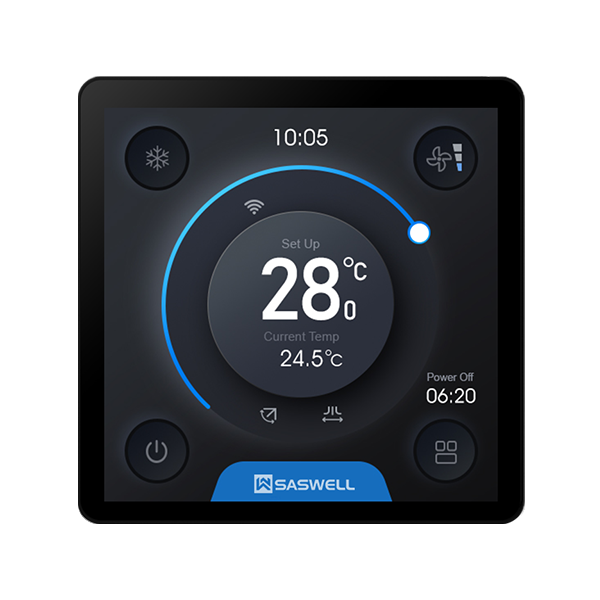

Full touch control and color display

Customized UI as you want

Low voltage more safety

Support modbus 485 and wifi smart control

Compatible with different brand Air conditioner

Home Product Commercial Thermostats Wired Remote Controller

Product Feature

The wired controller is designed to provide precise and convenient control of air conditioning systems. It features an intuitive interface with a clear display, allowing users to easily adjust temperature, fan speed, and operation modes. With its programmable timer and energy-saving functions, the controller ensures optimal comfort while minimizing power consumption.

Product Selector

Model No.

Control air condition

Fan speed

ECO mode

Sleep mode

Programmable

Swing

Timing

External Sensor

Modbus

WIFI

Power

Manual

SAS965XK-485-WIFI-S12

√

12VDC

download

Product Parameters

Power source: DC 12V

IP Rating: IP21

Temperature setting range: 20℃~32℃

Temperature display range: 0℃~50℃

Temperature increment: 0.5℃

Shipping & storage temperature: -10℃～60℃

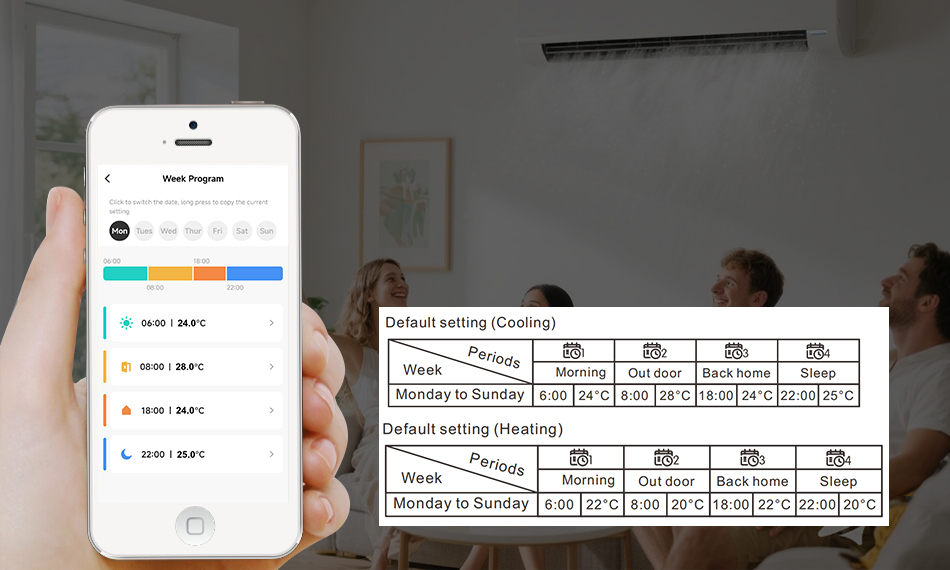

Rapid programming

Supports 7-day cooling and heating scheduling via the app, with up to 4 programmable periods per day. The wired controller allows quick access to enable or disable scheduling with a convenient shortcut function.
Sleep mode

The indoor unit will run according to pre-set sleep temperature curve, which creates a comfortable sleep environment and improves sleep quality.
Timing for power off

The wired controller allows you to set timed power on/off, so you can enjoy a comfortable temperature when you’re home and automatically turn off the unit when you’re away—no more worrying about forgetting to switch it off or wasting energy.

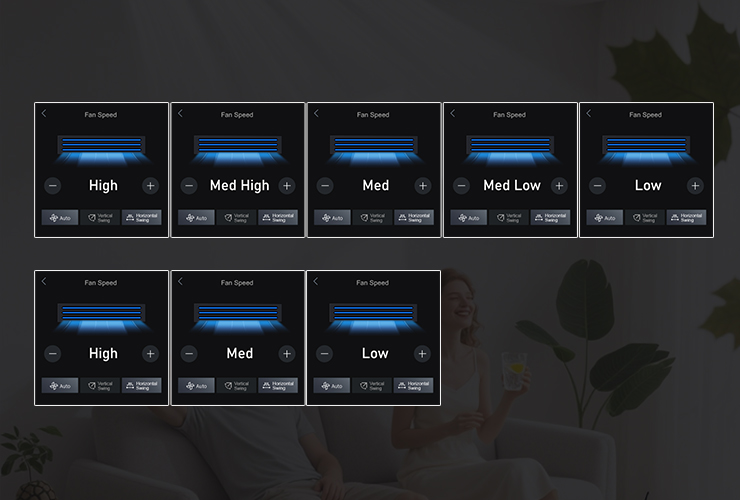

Fan speed

We have 5 speed(Low/Med Low/Med/Med High/High/Auto) or 3 speed(Low/Med/High/Auto) option based on your system is equipped.

More Smart Features for Better Comfort

It offers a range of intelligent functions to enhance performance and durability, including defrosting, mildew prevention, cleaning, and dust protection. These features work together to keep the system running efficiently and ensure cleaner, healthier air for your home.

Defrost function

The wired controller includes a defrost function that automatically clears frost, ensuring efficient operation and reliable heating even in cold conditions.
Mildew-Proof function

After shutdown, the air conditioner would automatically dry the moisture in the evaporator of indoor unit, so as to avoid mildewing.
Clean Function

The air conditioner can clean the evaporator automatically, which can not only keep air fresh, but also reduce the recession of cooling effect.
