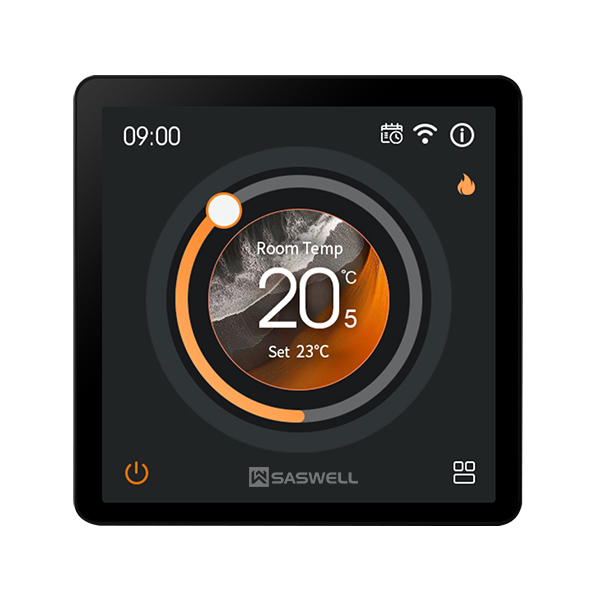

Full Touch Water Floor Heating Thermostat

SAS965WHL-7-WIFI(TY)

Get a quote

480*480 pixel 4-inch color screen display

Full-Screen capacitive touch

Anti-freeze function

Customizable UI

Rigorous double 85 environmental testing

7-day programming control

Home Product Smart control Smart HVAC Control WIFI Thermostats

Product Feature

The SAS965WHL is a smart color touchscreen water heating thermostat designed for residential homes and commercial spaces. Featuring a large 4-inch display, it offers intuitive temperature control and real-time energy monitoring via a mobile app.

Product Selector

Model No.

Heat/cool

Heat only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS965WHL-7-WIFI(TY)

√

220VAC

download

Product Parameters

Power source: AC100~240V，50/60Hz

Current temperature display range: 0℃~50℃

Floor temperature display range: 0℃~70℃ (NTC external sensor measuring range)

Current temperature setting range: 5℃~70℃

External sensor control range/Floor temperature protection range: 5℃~70℃

Accuracy: 0.1℃

External sensor: NTC 10K / NTC 100K

Storage temperature range: -20℃~70℃; 5~95% (no condensation)

Network frequency: 2.4GHz WIFI

Screen: 4-inch IPS screen, capacitive touch screen (71.86* 67.96mm, 480*480)

Dimensions: 86x86x12mm

IP Rating: IP21

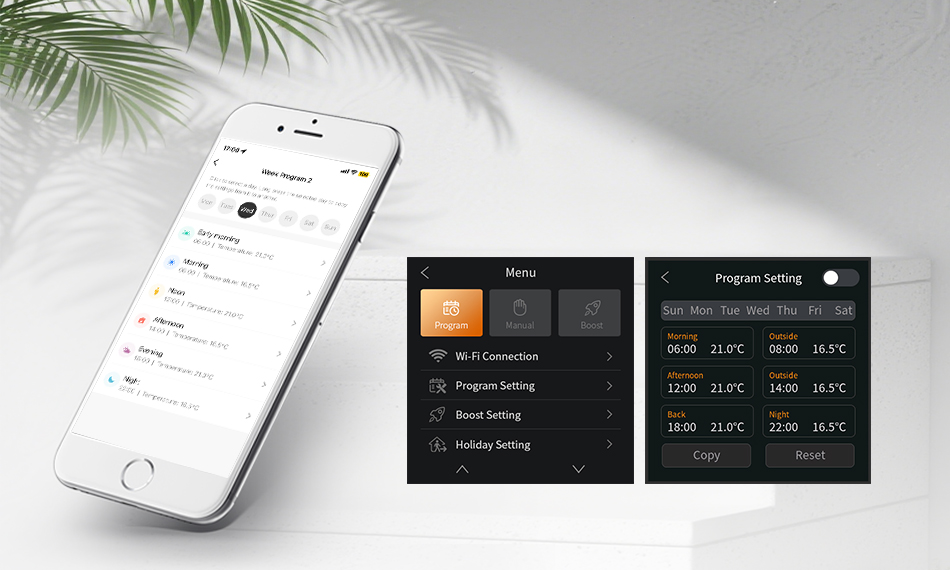

Rapid programming

Supports programming via the device or APP settings.

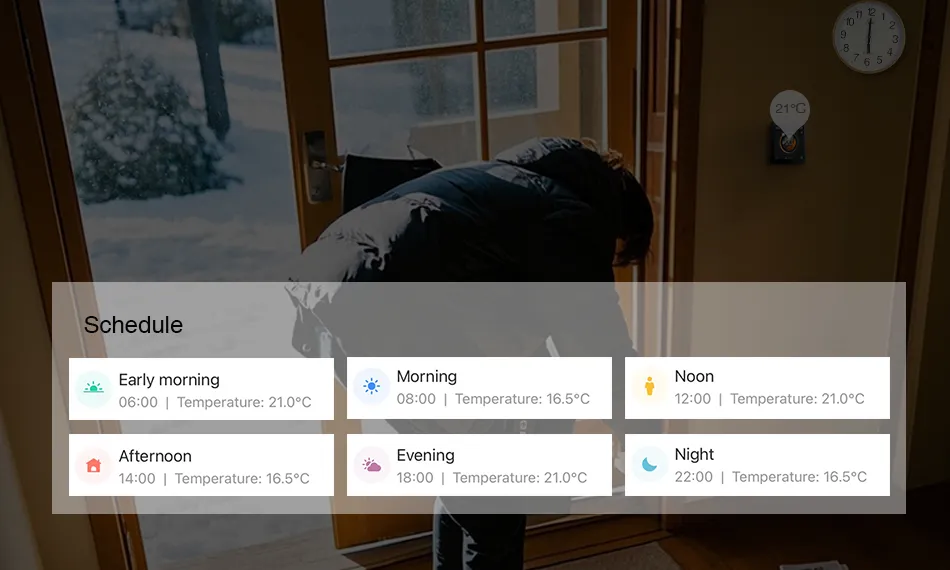

Optimum start function

It heats for you according to your personal schedule. For great evening and days ahead.
Not warm enough?

When you feel house is not enough warm, it could activate boost to heat with option from 1-12 hours.
Voice remote control

Work with Amazon Alexa and Google assistant.

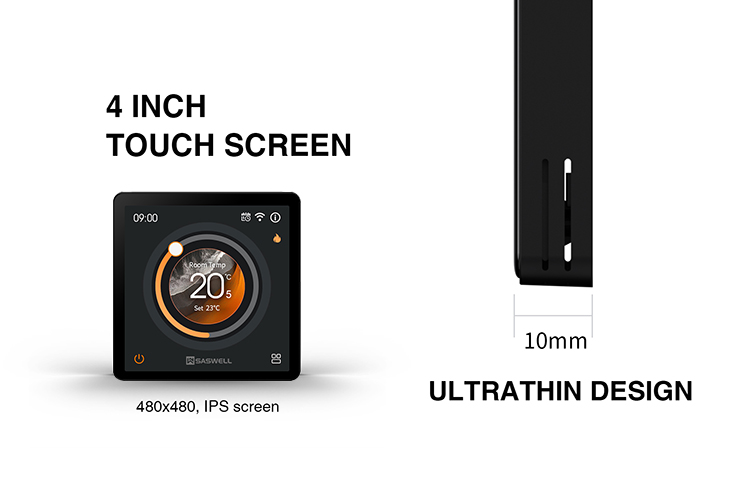

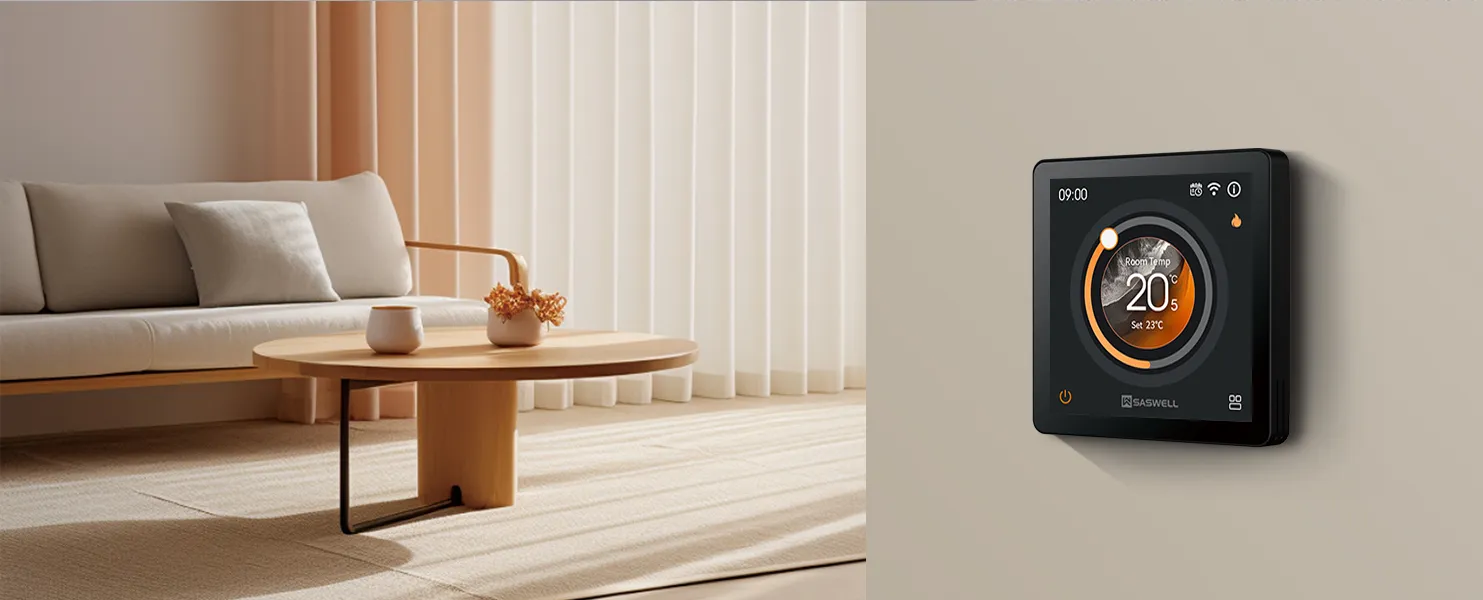

Super-slim design

With a thickness of only 10 mm, the ultra-thin design and 4-inch color display make it even more appealing。

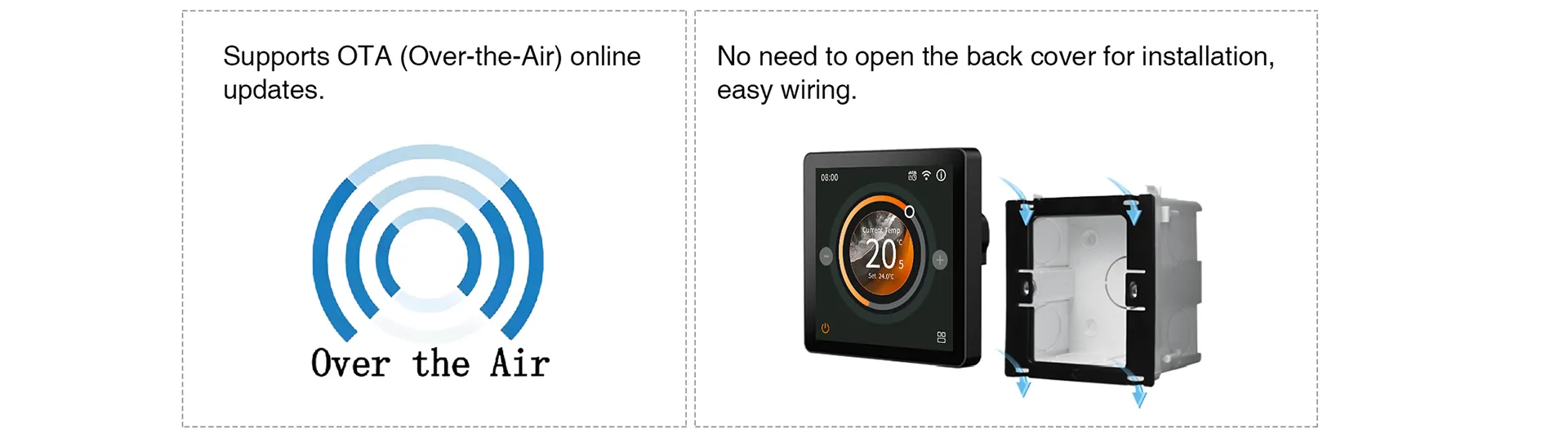

Easy to maintain and install

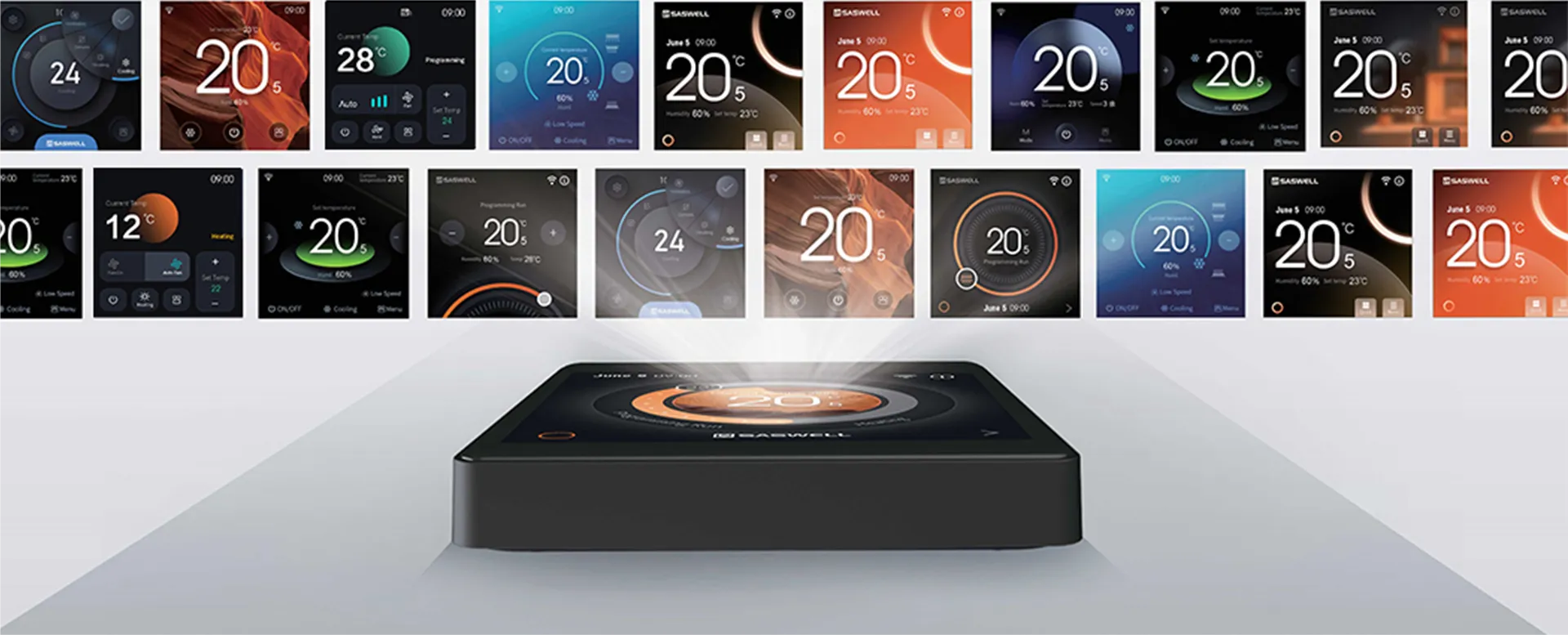

Diverse and dynamic UI option

Take full control of your user experience with our extensive UI customization features. Whether you prefer a clean, minimal look or a bold, vibrant style, our flexible design tools let you tailor every detail to reflect your personal taste. From color schemes and icon styles to layout arrangements and animations — every element is yours to customize. Create a unique, personalized interface that not only looks the way you want, but also works the way you need. It’s your space. Make it yours.
