High-Performance Hydronic Wiring Centres

The Universal Control Hub for Multi-Zone Heating

Optimize your HVAC infrastructure with our robust Waterline Controllers. Engineered for precision and reliability, our controllers serve as the central command for pumps, boilers, and heat pumps. From 5-zone compact units to 8-zone professional centers, we provide the intelligent energy-efficient zone management needed for modern residential and commercial climate control.

Hot Products

Wiring center with 5 independent control zones

Wireless wiring center with 5 independent control zones

SCU210DE
Wiring center with 5 independent control zones

Wired wiring center with 5 independent control zones

SCU210
Wireless wiring center with 8 independent control zones

8 independent control zones

SCU209-DE
Multi-Zone Waterline Heating Control Center

8 independent control zones

SCU209-LED

Application

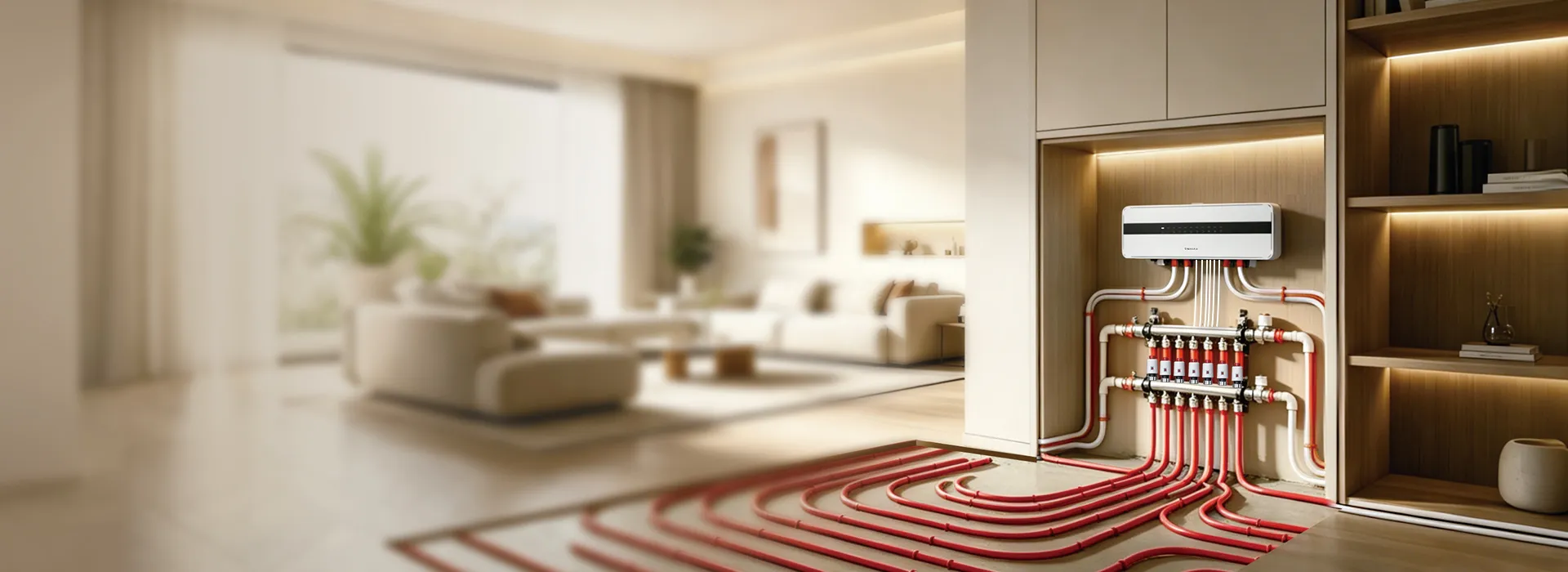

Our Manifold Wiring Centres act as a versatile interface between room thermostats and manifold actuators. With native support for diverse hydronic configurations—including Heat Pump integration, hybrid systems, and standard S-Plan/Y-Plan setups—they ensure synchronized operation of heat sources and circulation pumps to maximize system efficiency.

Key Functions

Adaptive Zone Control

Available in 5 or 8 independent channels (ways) to match any project size, with ample power to drive 2-3 actuators per channel.
Universal Voltage Support

Full compatibility with 230V AC (EU) and 24V AC (US) versions, functioning as a global zone valve control box.
Intelligent Interlock Logic

Seamlessly synchronizes boilers, heat pumps, and circulation pumps to bridge the gap between various HVAC hardware brands.

Hardware Lifecycle Protection

Integrated boiler & pump delay start/stop logic safeguards expensive components from short-cycling and mechanical wear.
Hybrid Connectivity Modes

Choose between wired reliability and RF wireless flexibility, making it the premier retrofit heating solution.
Installer-Centric Design

Features DIN-rail mounting and clear LED diagnostics for each zone, ensuring rapid commissioning and easy maintenance.

Application Scenarios

Designed for versatility, our controllers are the ideal choice for modern apartments, luxury villas, and light commercial spaces. Whether installed in a standard electrical cabinet or tucked into a compact manifold cupboard, they provide the robust logic needed for multi-floor climate control and complex HVAC integration.

Apartments

luxury apartments

Apartments

Partnership & Support

As a strategic HVAC manufacturer, we empower our partners with more than just hardware; we provide a complete ecosystem of technical excellence and global market readiness.

Tailored OEM/ODM Solutions

Comprehensive customization including private labeling, specialized hardware configurations, and region-specific input features.
Expert Engineering Support

Direct access to our technical team for custom wiring schematics, system integration advice, and professional troubleshooting.
Reliable Global Service

Robust warranty terms and efficient technical backup across key international markets, ensuring partner confidence.

FAQ

A multi-zone wiring centre (like our 5 or 8-zone models) acts as the "brain" of your hydronic heating system. It simplifies wiring by centralising connections from thermostats to actuators. More importantly, it provides intelligent interlock logic—ensuring that the boiler and pump only run when there is an active heat demand, significantly reducing energy bills and mechanical wear.

Yes. Our controllers are designed with high versatility to fit standard hydraulic configurations. The 8-zone professional model specifically supports 5-wire valve connections common in UK S-Plan systems, allowing for seamless integrated control of both space heating and Domestic Hot Water (DHW).

This is a critical protection feature. Thermal actuators take 2–3 minutes to fully open. Without a delay function, the boiler and pump might start against a closed valve, causing hydraulic shock or pump burnout. Our controllers include a built-in delay to ensure the water path is open before the heat source ignites, extending the lifespan of your equipment.

No, to ensure safety and system stability, you should choose the specific voltage model that matches your thermostats and actuators. We offer both 230V AC (standard for EU/UK) and 24V AC (standard for North America and specialized projects) versions to meet your specific project requirements.

Each channel on our 5-zone and 8-zone controllers is designed to drive 2–3 thermal actuators (depending on the total current draw). This allows you to manage multiple heating loops within a single large room or open-plan area using one thermostat.

Yes. We provide both hardwired reliability and RF wireless flexibility. Our RF models are the ideal retrofit heating solution, allowing you to upgrade an existing system to multi-zone control without the need for destructive wall chasing or rewiring.

Our controllers feature Visual Diagnostics. Each zone has a dedicated LED that lights up when that zone is calling for heat. There are also master LEDs for Power, Pump, and Boiler status. This makes commissioning and troubleshooting incredibly fast—you can see at a glance exactly which part of the system is active.

Absolutely. Our logic is Heat Pump Ready. Whether you are using a traditional gas boiler or a modern air-to-water heat pump, the dry contact or powered output can trigger the heat source efficiently based on demand.
