Optimized Heat Pump linkage for integrated FCU and radiant floor heating control.

Engineered specifically for Air-to-Water Heat Pump systems, this solution integrates smart thermostats with a centralized wiring center to synchronize FCU cooling and underfloor heating. The system manages the heat pump’s operational cycles and mode switching via universal volt-free contacts, while incorporating optional PICVs to achieve dynamic hydraulic balancing, ensuring maximum COP (Coefficient of Performance).

Contact Our Team

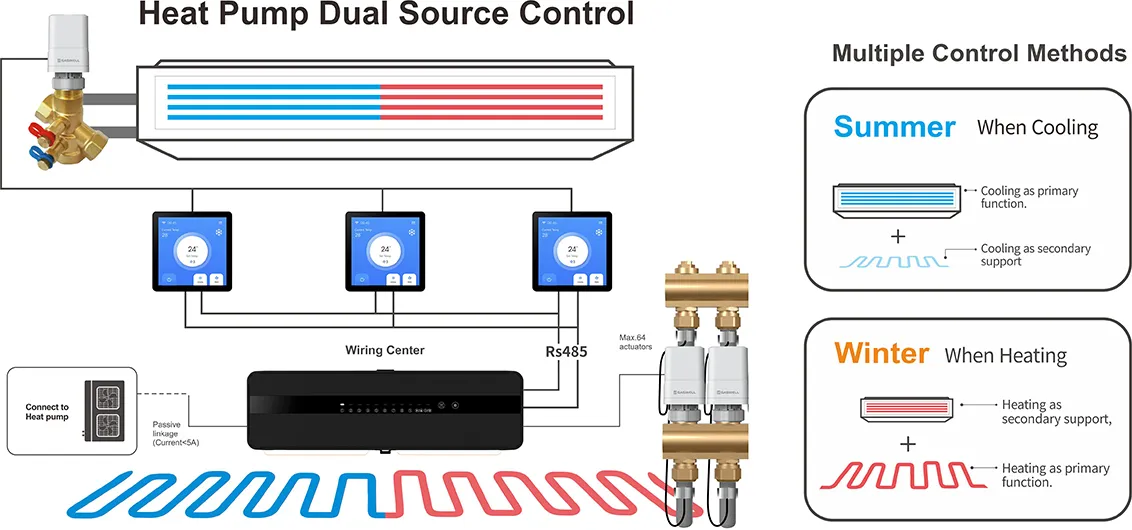

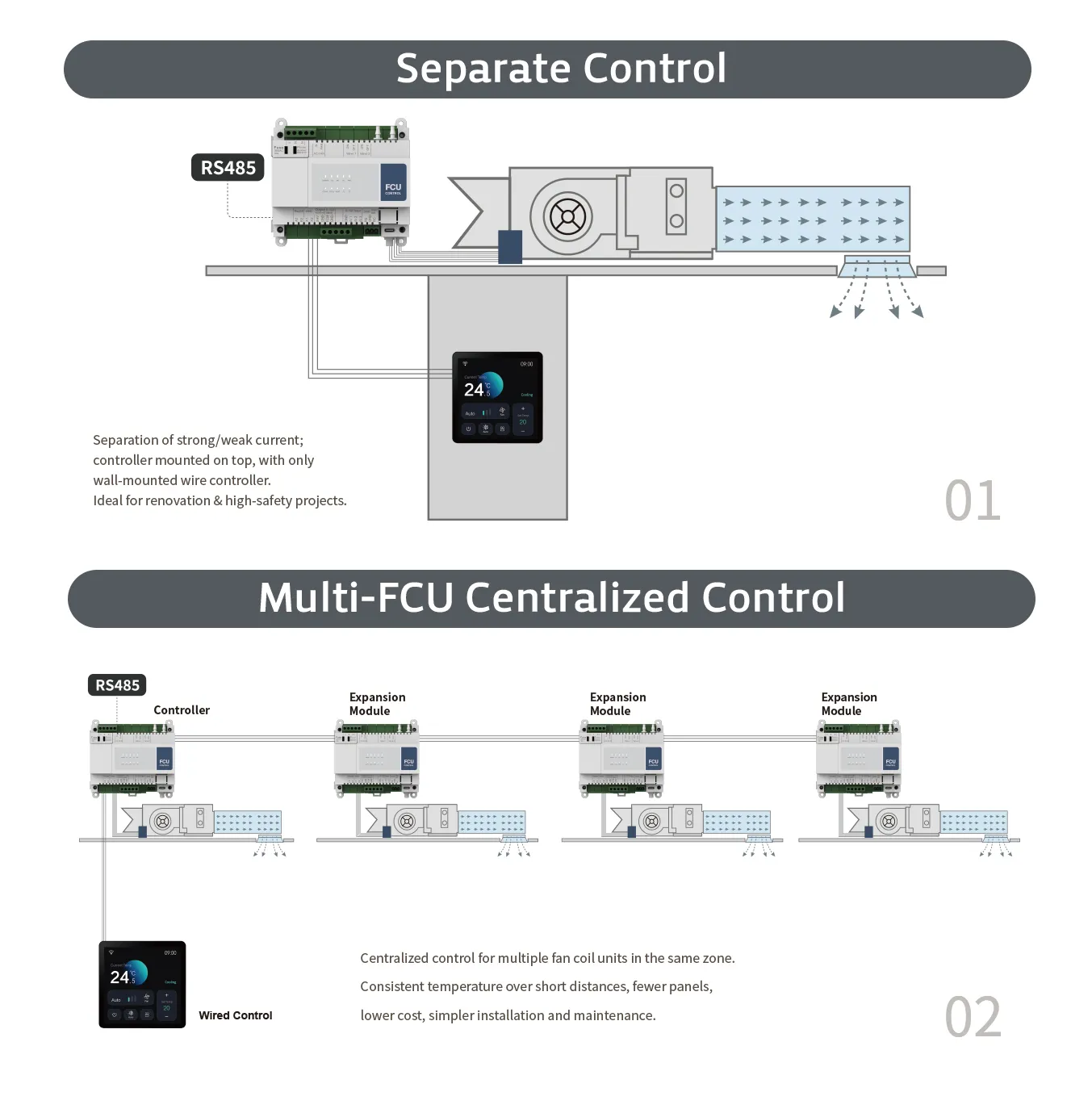

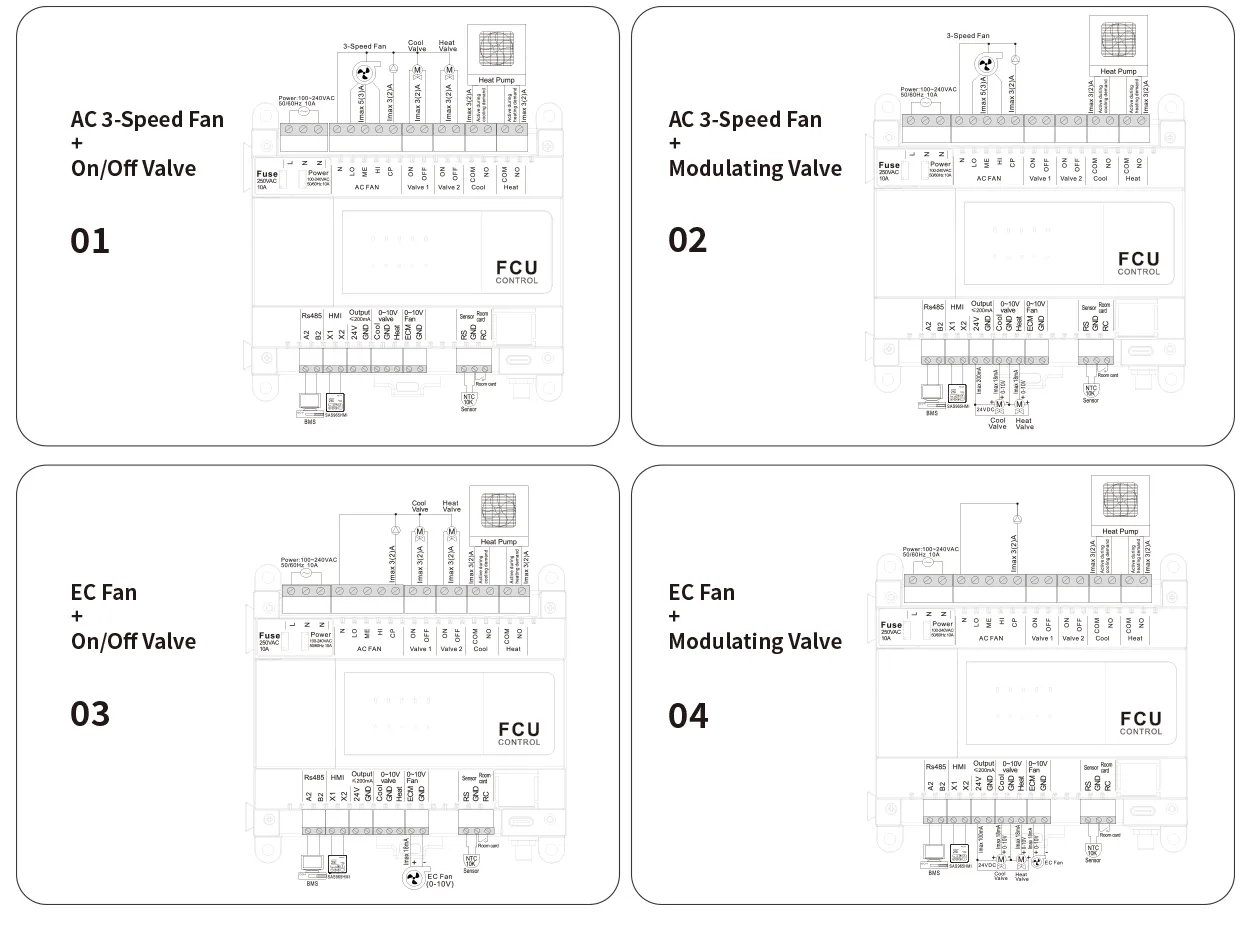

Solution Diagram

The smart thermostat monitors ambient loads to coordinate the central wiring center. Based on real-time demand, the center signals the Heat Pump’s on/off status via universal volt-free contacts while managing fan speeds and thermal valves. The optional PICV maintains a constant flow rate across all loops, protecting the heat pump from pressure-related cycling and ensuring stable water temperatures.

Advantages

Universal Brand Linkage

Volt-free interface ensures seamless integration with any air-to-water heat pump brand.
Agile HMI Tailoring

Fast-track 7-day UI design to align the controller with your unique brand identity.
Equipment Longevity

Smart demand logic reduces heat pump "short-cycling," extending service life and optimizing COP.

Dynamic Flow Stability

Optional PICV technology automatically prevents hydraulic imbalance and system noise in every loop.
Simplified Field Wiring

Modular wiring center design significantly reduces installation complexity and labor costs for installers.
Global Technical Expertise

Expert support localized for major international HVAC standards and diverse climatic conditions.

Application Scenarios

Ideal for luxury residences, boutique hotels, and eco-friendly office buildings, this solution excels in projects requiring universal heat pump compatibility and premium climate comfort through sophisticated radiant floor heating and hydronic management.

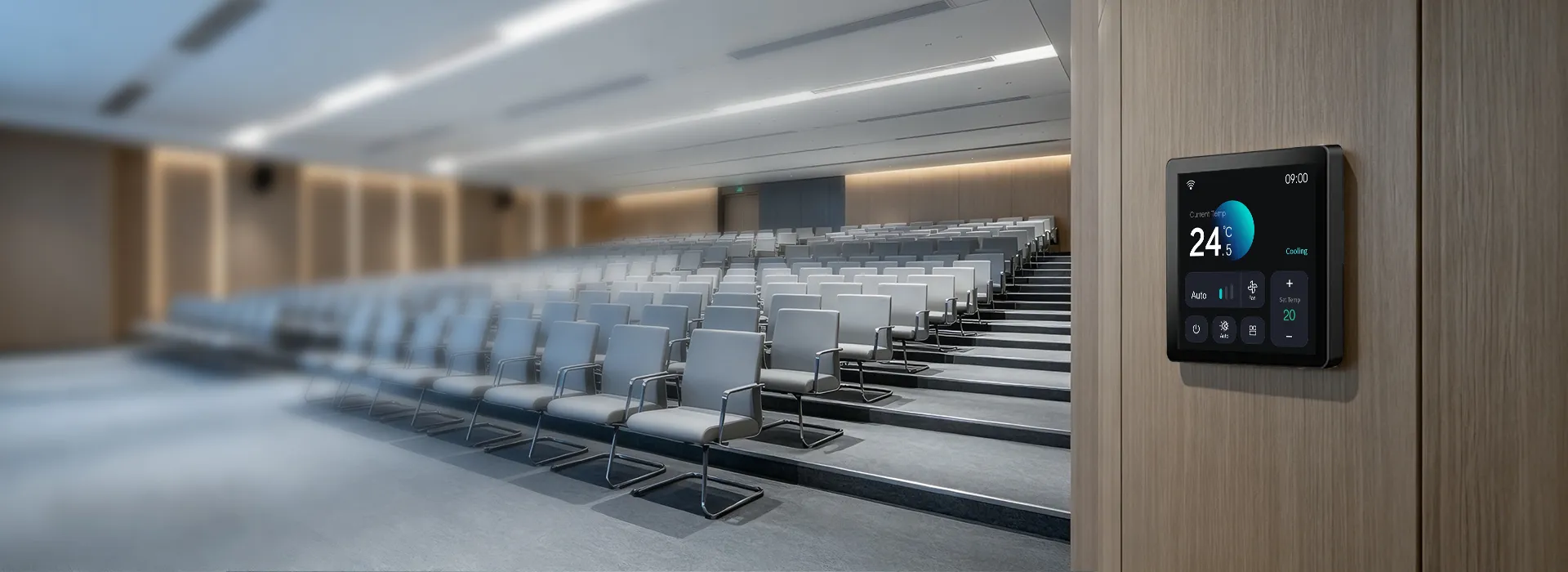

office

luxury apartments

Hotel

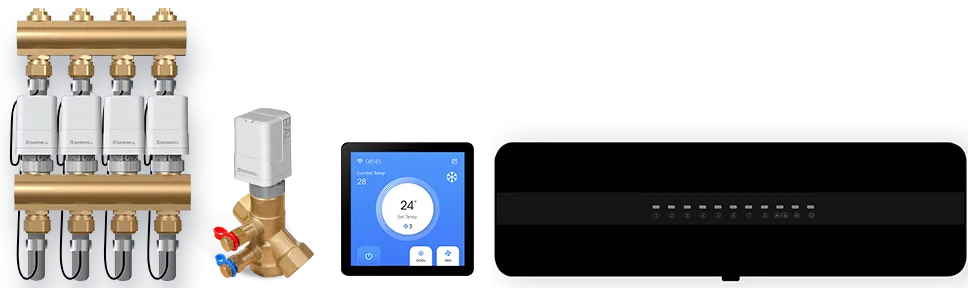

Related Products

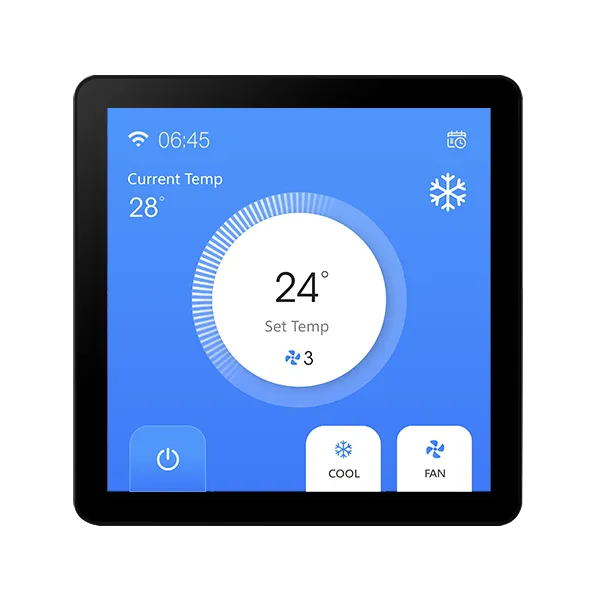

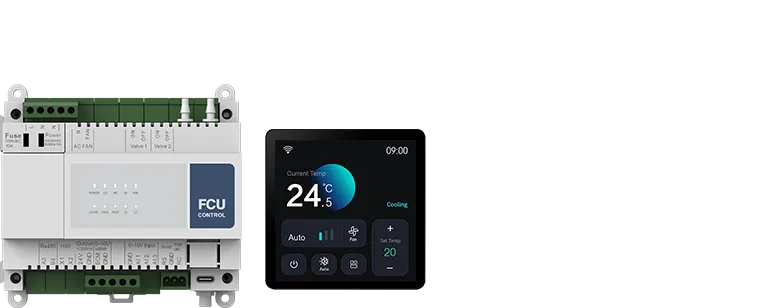

4-Inch Color Screen Modbus Reversible HP Controller

SAS965FCH

LEARN MORE

● Power Supply: 100-240VAC, 50/60Hz
● Max Load Current: 3A / 250VAC
● Built-in Room Temp. Control Range: 5°C - 35°C
● External Sensor Control Range: 5°C - 70°C (Optional/Not included)C
● Temperature Display Accuracy: 0.1°C
● Operating Temperature: 0°C - 50°C
● Storage Temperature: -10°C - 60°C
● Dimensions: 86mm x 86mm x 13mm

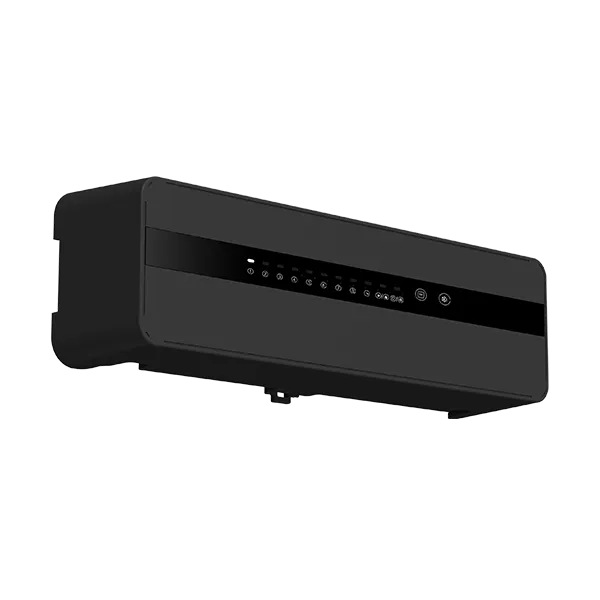

Wireless wiring center with 8 independent control zones

SCU217DE-485(N)

LEARN MORE

● Power Supply: 100-240VAC 50/60Hz
● Maximum Current: 10A
● Load Current Output: 250VAC 8(5)A
● Operating Temperature: 0°C~50°C, 0-80% RH
● Storage Temperature: -10°C~60°C, 0-90% RH
● Dimensions: 298 x 88 x 64 mm

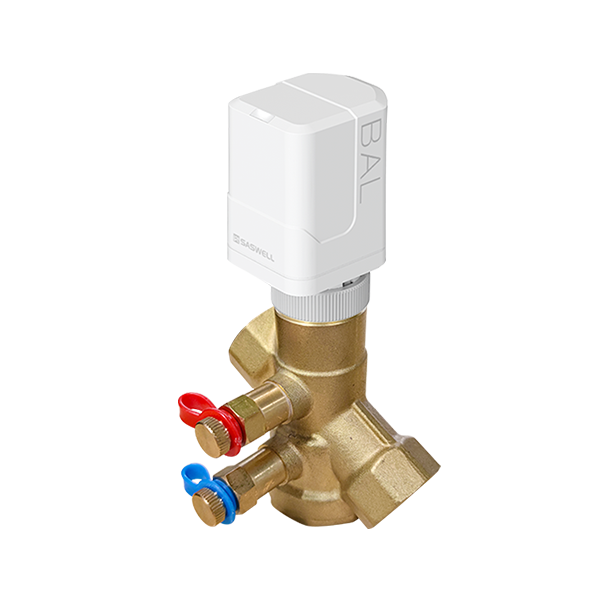

PICV Best Value | Smart 0-10V Control Valve with Bluetooth

SA905-VB10

LEARN MORE

● Power supply: SA905-V(220V): 100~240VAC 50/60Hz
● SA905-V(24V): 24V(18-36V)AC 50/60Hz
● Control signal: 0-10VDC
● Enclosure protection: IP54
● Threaded connection: M30x1.5
● Working ambient temperature: 0°C to +50°C
● Working fluid temperature: 0°C to +95°C

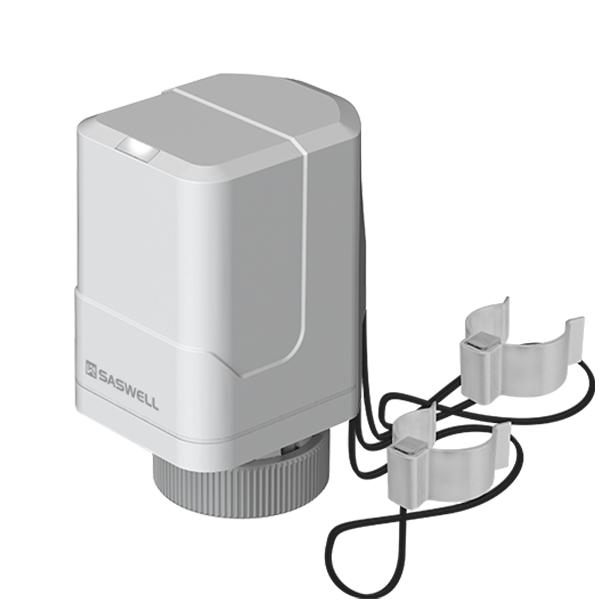

UFH Auto Balancing Actuator ΔT Stepper Motor Control

SA905-T

LEARN MORE

● Power supply: SA905-T(220V):100-240VAC; SA905-T(24V):24VAC
● Power consumption: ≤2W
● Stroke: 4.5mm
● Force: 80N~130N
● Ambient temperature: 0 ~ +50°C
● Ambient humidity: 10%~90%,non-condensing
● Protective housing: IP 54
● Valve interface: M30x1.5mm
● Temperature sensor: NTC 100K, clip for pipe outer diameter from 12~20mm
● Fluid temperature:10~60°C(Flow temperature limitation is active when lever is closed )

FAQ

Yes. Our solution utilizes universal volt-free (dry contact) linkage, making it compatible with 99% of air-to-water heat pump brands. It provides a reliable bridge between your high-end indoor control logic and the heat pump’s basic on/off coordination.

Our smart wiring center features integrated delay logic and multi-zone demand aggregation. The heat pump is signaled to start only when there is a verified thermal load, and it remains operational for an optimized period to ensure system stability and extend equipment service life.

Yes, that is our core strength. For our Smart HMI platforms, we offer a fast-track design service. From UI prototype confirmation to firmware readiness, we can complete the branding and interface customization within 7 days to help you reach the market faster.

A PICV ensures a constant flow rate in each loop regardless of pressure fluctuations in the pipe network. It eliminates hydraulic imbalance, prevents over-flow noise, and ensures that the heat pump operates at its highest COP (Coefficient of Performance).

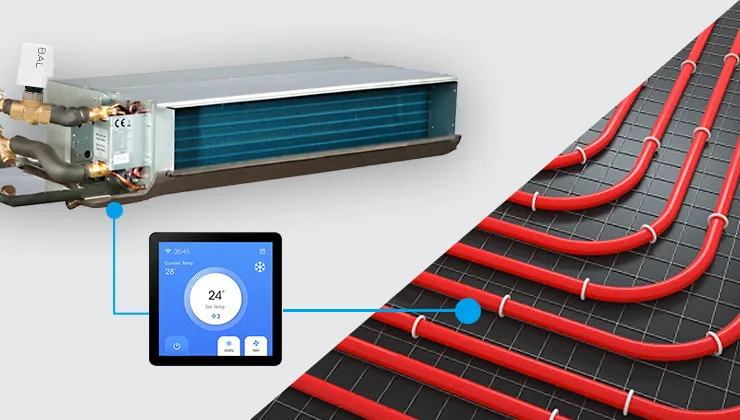

The system is designed with sophisticated synergy logic. It prevents thermal conflict by intelligently switching between modes—utilizing FCUs for rapid cooling/dehumidification and underfloor loops for silent, comfortable heating, ensuring premium indoor climate control.

Absolutely. Our controllers and wiring centers are ready for Modbus and BACnet protocol integration, allowing seamless communication with higher-level smart building platforms and remote monitoring systems.
