Multi-Room Wireless Heating Solution – 50% Labor Savings, No Rewiring

Overview

Wired multi‑zone is costly and disruptive – wireless makes retrofitting simple.

Traditional wired systems require individual thermostats and dedicated cabling per zone, driving up labor costs and damaging walls and floors. For occupied homes or businesses, such upgrades are often impractical.

The SAS936FHL Wireless Kit changes that. One transmitter controls up to 8 receivers – each wired directly into existing heating loads. No new cables, no wall chases. Installation time cut by over half, with flexible independent zone control.

Core Capabilities

● Boiler On‑Demand Interlock
● One‑to‑8 control
● No rewiring
● 50% labor savings
● Weekly scheduling

Recommended Reading: Learn how wireless RF retrofitting cuts labor costs by 50%

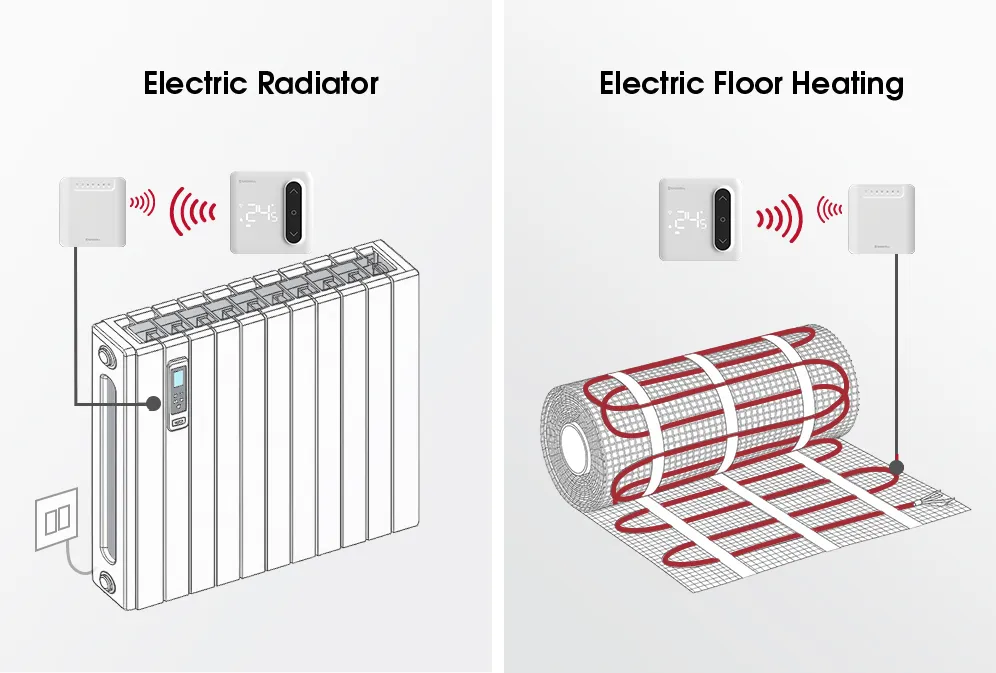

Wireless multi-zone electric heating solution overview for retrofit and large-space applications

Solution Architecture

One transmitter, 8 receivers, 30m wireless range.

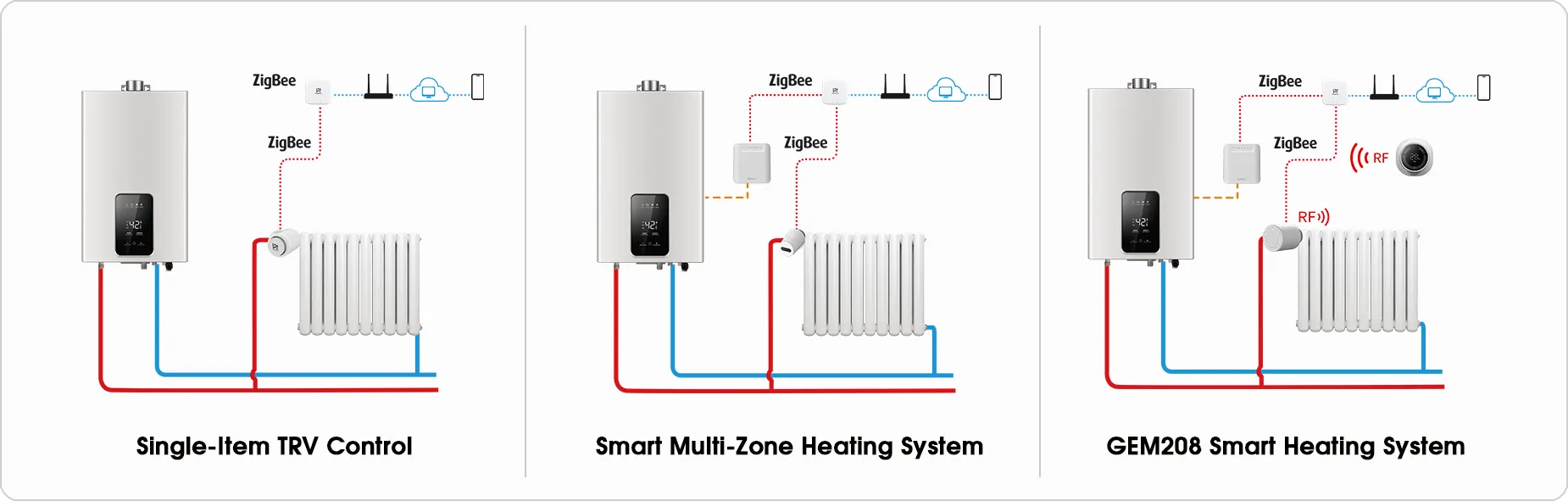

Comparison of multiple smart radiator valve control applications for heating systems

Dimension	SAS936FHL Wireless Kit	Traditional Wired
Control	Single transmitter, wireless	Individual wired thermostats
Wiring	None	Per-zone cabling required
Installation	50% faster	Slow, zone by zone
Disruption	Zero	Wall chases, major damage
Expansion	Add receivers anytime	Requires full rewiring

Architecture Highlights

● Transmitter‑Receiver: Commands sent wirelessly, executed locally – no control cables.

● Star Topology: One transmitter manages up to 8 distributed receivers.

● Local Storage: Each receiver stores its own 7‑day schedule, retains through power loss.

Application Scenarios

Whole‑Home Retrofit - Zone comfort, whole‑home savings

Challenge: Different rooms have different heating needs. Traditional rewiring is costly, damaging, and disruptive to daily life.

Our solution: Transmitter in hallway, receivers connected to existing loads per room. Each room runs its own daily schedule – warm bedrooms at night, comfortable study by day, unoccupied rooms at reduced temps.

● Wireless control

● 7‑day scheduling

● Dual sensors

Wireless multi-zone electric heating solution for whole-home retrofit

Office / Retail Zone Management – Heating on demand, zone by zone

Challenge: Workstations, meeting rooms, storage, and display areas have very different usage patterns. Wired upgrades disrupt business.

Our solution: Transmitter in management area, each receiver programmed independently – meeting rooms pre‑heated before use, storage at base temp, display areas comfortable all day. All zones monitored from one interface.

● Zone independence

● Weekly scheduling

● Energy management

Wireless multi-zone electric heating solution for office and retail zone management

Advantages

50% Labor Savings

Wireless eliminates per-zone cabling, install time halved.
Zero Disruption

No wall cutting, no finish damage – ideal for occupied spaces.
Flexible Expansion

One transmitter supports up to 8 receivers, add zones anytime.

Related Products

SAS936FHL– Wireless Multi‑Zone Thermostat Kit

LEARN MORE

SAS936WHB

Power supply: 2x1.5V AA alkaline batteries(LR6)

Output(Relay): Imax 8(5)A 250VAC

Battery life: 1 year

Temperature display: 0~50°C

Temperature setting range: 5~30°C

Temperature display accuracy: 0.1°C

Zigbee wireless transmit range: 30m in open air

Dimensions: 100*100*19mm

Storage temperature & humidity: -10~60°C, 25~90%RH (non condensation)

Operation temperature & humidity: 0~50°C, 25~90%RH (non condensation)

SAS2024FHL

Power source: 100-240VAC 50/60Hz

Temperature display range(APP): 0°C-70°C

Temperature setting accuracy(App): ±0.5°C

Temperature setting range(APP): 5°C-40°C (In Switch Mode)

Temperature display accuracy(APP): 0.1°C

Wireless Protocol Communication: Zigbee(Tuya)

Radio Frequency Range: 2.4GHz

Protection Level: IP21

Compatibility: Compatible with all class II electric radiators

Shipping & storage temperature: -10°C ~70°C

Working environment: -10°C~60°C, 10%~95% RH Non-condensation

Wireless transmit range: Open air in 30M

External sensor type: NTC 100K
