SEA series smart thermostatic radiator valves installed on living room radiators

Smart Radiator Thermostats (TRV)

From Wi‑Fi and Zigbee to Z‑Wave and LoRaWAN, the SEA Series delivers precision radiator control for every project – residential renovations, multi‑zone homes, and BMS‑integrated commercial buildings.
Contact Now
Home Product SEA Series Smart Thermostatic Radiator Valves
Product Lineup

The SEA Series is our core smart thermostatic radiator valve product line, covering Wi‑Fi, Zigbee, Z‑Wave, and LoRaWAN protocols to meet diverse installation needs – from DIY home upgrades to large‑scale commercial deployments.

1

Selection Guide

Choose the right boiler thermostat for your project — from communication protocols and control logic to region‑specific system compatibility.


How to decide between high precision and low precision?
Comparison Low‑Precision TRV High‑Precision TRV
Control Logic Open‑loop (command only – no verification) Closed‑loop (command → execute → measure → correct)
Temperature Accuracy ±1℃ ±0.6℃
Stroke Self‑Learning ✕ ✓
Dual‑Mode Control ✕ ✓ (Temperature / Opening %)
Full‑Stroke Time ~125s ~27s (5× faster)
Estimated Battery Life ~2.7 years (with 4×AA) ~5.1 years (with 4×AA)
Noise Level <40dB(A) <35dB(A)


Pro Tip from SASWELL HVAC Engineers

How to decide? The core value of high‑precision TRV lies in closed‑loop control – it not only sends commands but also verifies execution. This is critical for remote opening‑control, BMS integration, and multi‑valve consistency. Consider high‑precision if your project requires:

● For Residential Projects: High‑precision TRVs deliver superior comfort with faster response and quieter operation — ideal for bedrooms and living areas.

● For Large‑Scale Installations: The extended battery life (5.1 years) and closed‑loop accuracy reduce maintenance costs and improve tenant satisfaction.

● For Retrofits: Both options are drop‑in replacements for standard M30×1.5 valves — upgrade without repiping.

Choose high‑precision for these scenarios. If your project is primarily basic heating with no need for system‑level control or remote execution precision, low‑precision is the more cost‑effective choice.


How to decide between local interface and no local interface?
Whether end‑users need to interact with the device determines the choice.
With Local Interface: Buttons or dials, LED display, manual temperature adjustment, and real‑time status viewing. Ideal for homes, rentals, and small offices where users need direct access.

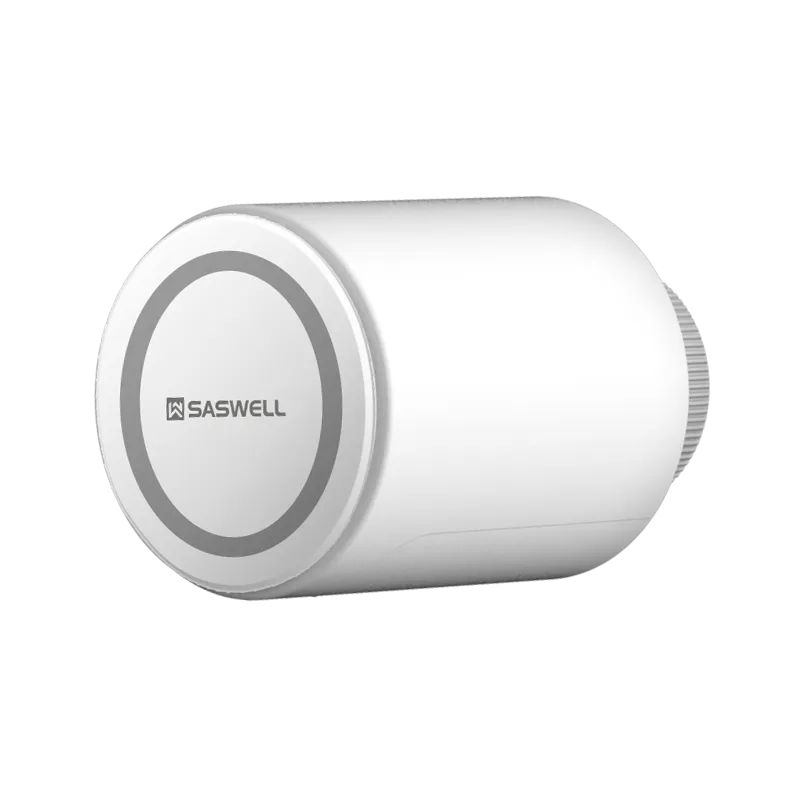

No Local Interface: :No buttons, no dials, no display – a pure actuator that executes commands from gateway or BMS only. Ideal for hotels, hospitals, offices, and campuses where users should not interact with the device – eliminating tampering, misoperation, and the need for user training.

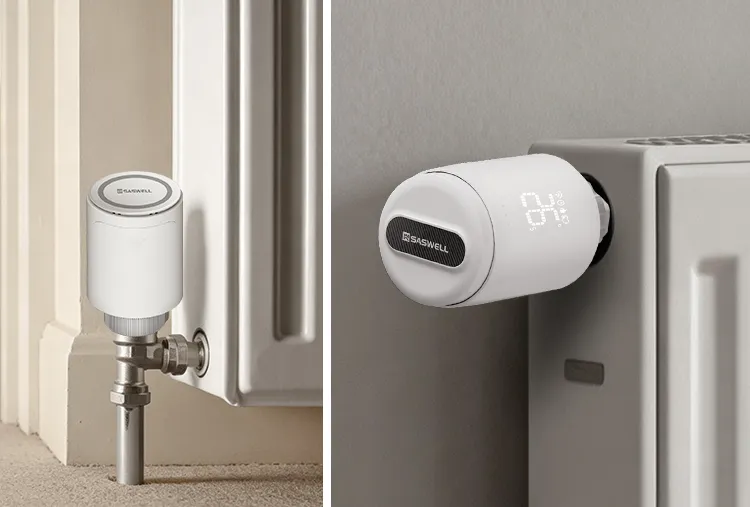

Comparison of TRV with display and no-display interface for radiator control
How to decide between integrated and split sensor?
Whether the sensor is mounted on the valve body or placed separately determines the temperature reference point.
Integrated Sensor: Built into the valve body, measures temperature around the radiator. Simple installation, no extra parts. Suitable for radiators in open, well‑ventilated locations. However, if blocked by curtains, furniture, or installed in a corner or cabinet, the sensor may read trapped heat – causing the room to feel cold while the TRV thinks it has reached setpoint.

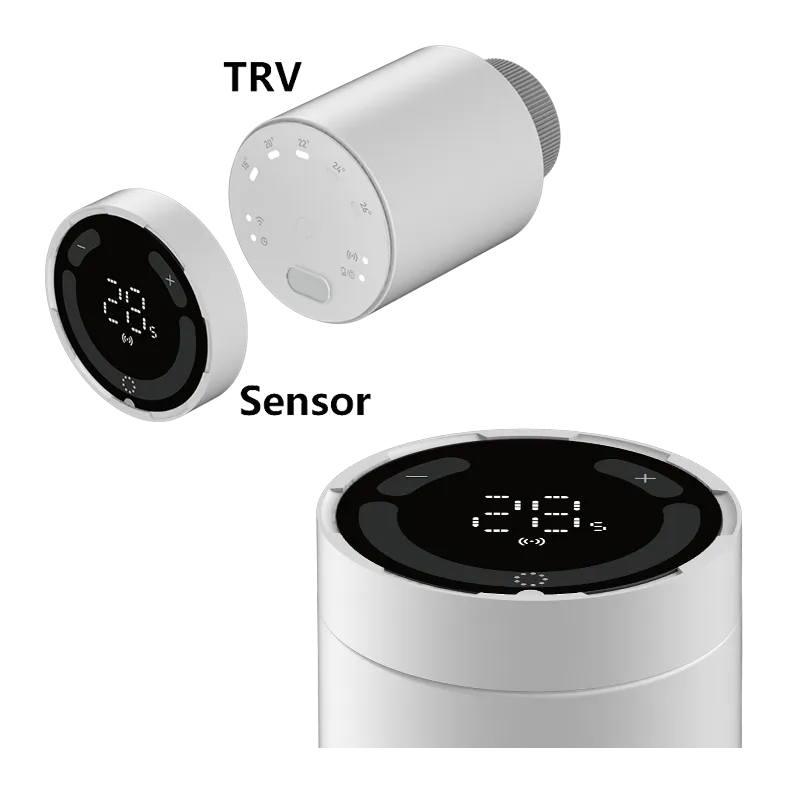

Split Sensor: Actuator and sensor are separate – the sensor can be placed on a wall or desktop to measure actual occupied‑area temperature. More complex installation, but ideal for radiators in poor locations. The sensor is free from heat source interference, and the system heats based on where people actually sit, sleep, and live – not the temperature around the radiator.

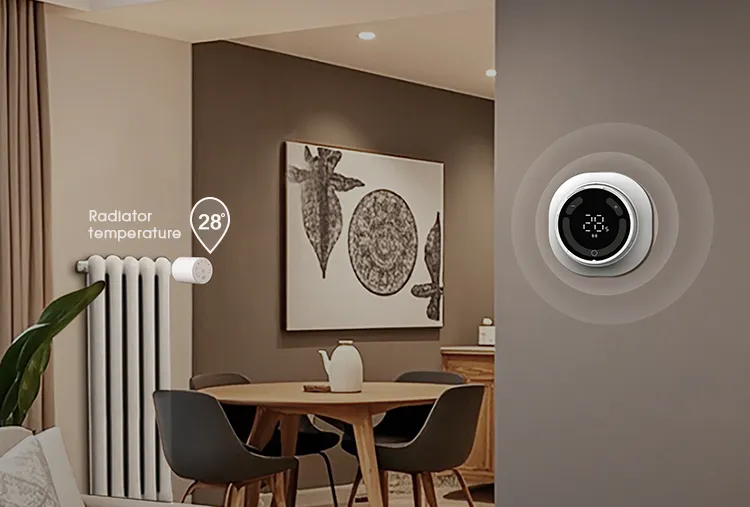

Split-type TRV with external sensor for true spatial temperature sensing
Not certain which control architecture applies?
Our engineering team offers complimentary project-specific matching.
Request a Site Match

Connectivity & Integration

Multi‑Protocol Support
The SEA Series covers Wi‑Fi, Zigbee, Z‑Wave, and LoRaWAN. Wi‑Fi models connect directly to your router – no gateway needed. Zigbee and Z‑Wave integrate with standard residential gateways. LoRaWAN models are purpose‑built for commercial IoT infrastructure.

APP & Voice Control
All SEA Series TRVs work with the Tuya/Smart Life APP for remote scheduling, temperature adjustment, and monitoring. Voice control via Amazon Alexa and Google Home is supported across all models.

BMS Integration
The LoRaWAN‑based SEA889 integrates with any standard Building Management System via MQTT or BACnet interfaces – enabling centralized control and monitoring without vendor lock‑in. Other SEA Series models connect through their respective gateways for local and cloud‑based management.

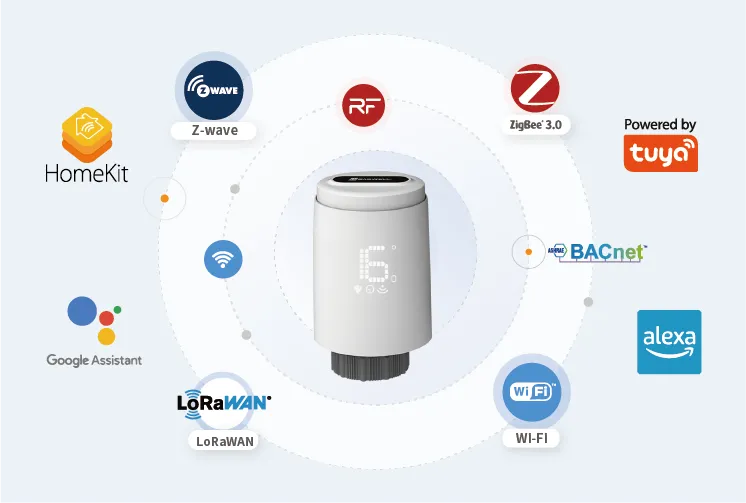

Multi-protocol control architecture for TRV with Wi-Fi, Zigbee, Z-Wave and LoRaWAN

Global Market Readiness

European Valve Compatibility
SEA Series TRVs feature a standard M30×1.5mm connection and include a comprehensive adapter set covering Danfoss RA, RAV, RAVL, Caleffi, Giacomin, M28×1.5 (Comap, Herz, TA), and more – ensuring compatibility with 90%+ of existing European radiator valves.
Energy Efficiency Compliance
SEA Series TRVs deliver measurable heating cost reduction through precise temperature control, scheduling, and boiler interlock capabilities – fully aligned with energy subsidy criteria in markets such as France.
Multi‑Region Protocol Support
Wi‑Fi and Zigbee models serve global residential markets. Z‑Wave models are tuned for North American and European frequencies. LoRaWAN models operate on 868/915MHz bands, covering major commercial IoT deployments worldwide.
Global market compliance certifications for SEA series smart TRV
