SV60

Electric Valve

Get a quote

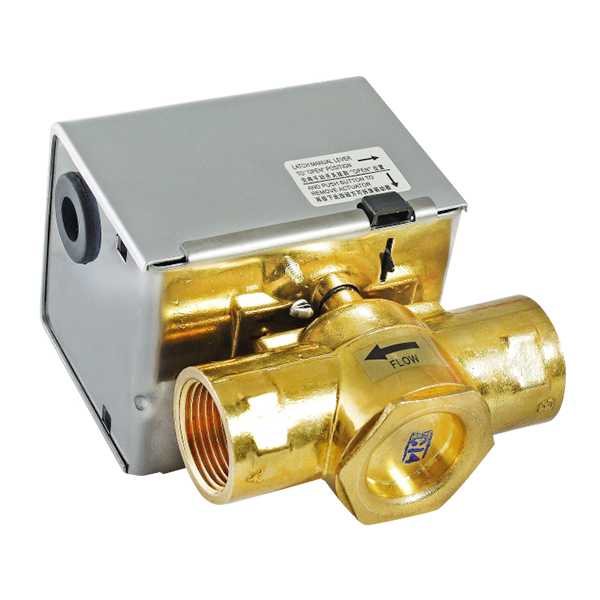

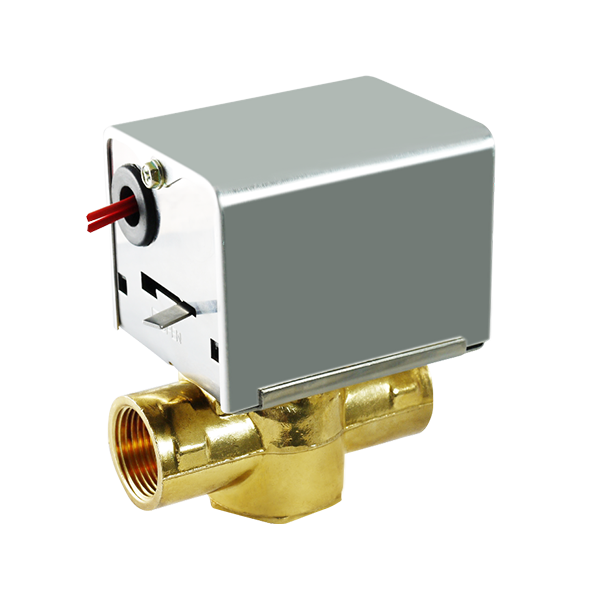

Forging brass body, stainless steel base,aluminum shell

For fan coil and heating control

Switch type valve, 2 normally closed and 3 shunt type

Use closed unidirectional hysteresis motor,using tje spring return and have a waterproof function.

The first valve can be installed in the fan coil, a radiator or air processor, finally installing the driver

The driver and the valve body is directly connected, fast, simple, without any connection and calibration tools

Electric valve with fastening form,dismounting conveniently

Low power consumption, low noise

Home Product Commercial Valve amd Actuators Zone Valves

Product Selector

Model No.	Pressure Rating	Self power consumption	Operating Mode	WIFI	Power	Manual
SV60	1.6MPa	<6.5W	On/Off valve		220V	download

Product Parameters

Supply voltage:AC220V±10%,50/60Hz

Self power consumption:<6.5W

Norminal Pressure:1.6MPa

The valve action time:The opening time:≤18s

Opening and closing time:≤17s

Working conditions:Ambient air temperature:5～40℃

The temperature of the medium pipeline:5～90℃

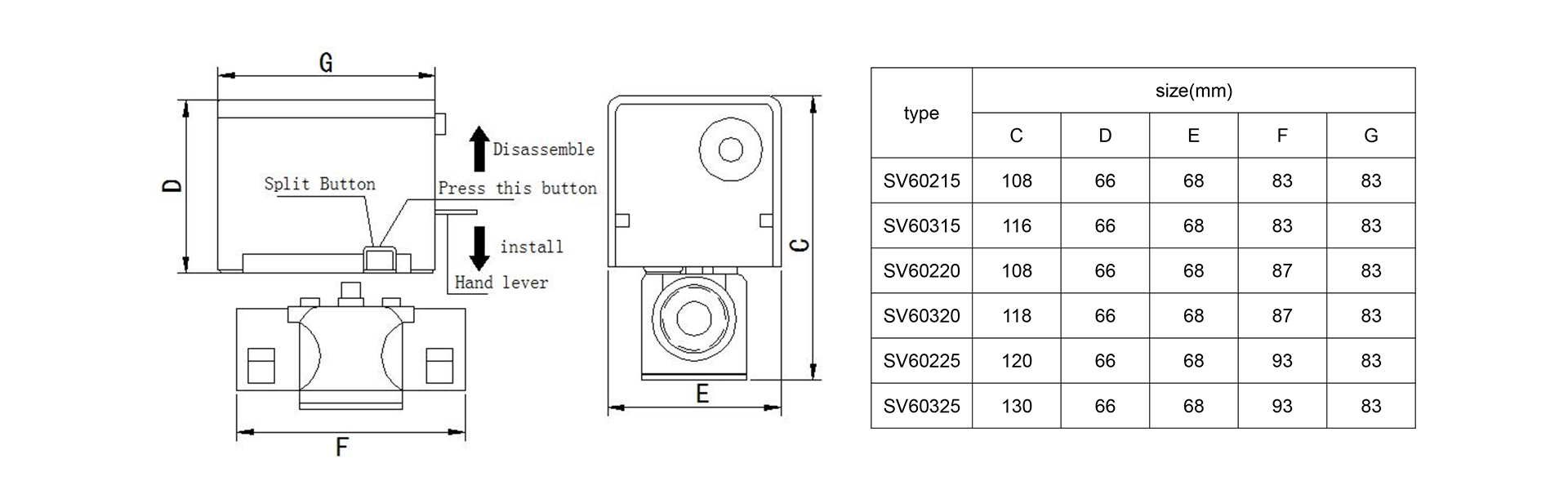

Dimension
