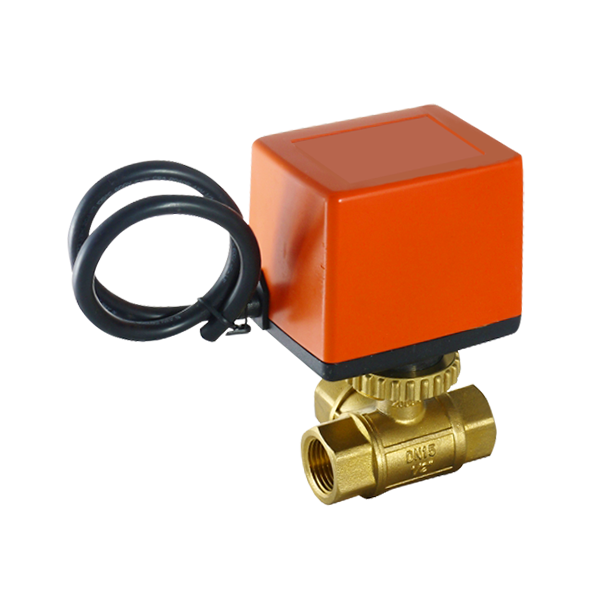

SV80
Electric Valve
Get a quote

Large flow,no blocking by the slag,shut off the pressure difference is big

The actuator can be matched with "1/2, 3/4", 1 "three kinds of body

The actuator can be assembled in 2 directions, which is convenient for wiring and maintenance

HomeProductCommercialValve amd ActuatorsZone Valves
Product Selector
Model No. Pressure Rating Max Differential Pressure Operating Mode WIFI Power Manual
SV80 2MPa 1MPa 3-point control 24VAC or on/off
AC220V, AC24V
download
Product Parameters

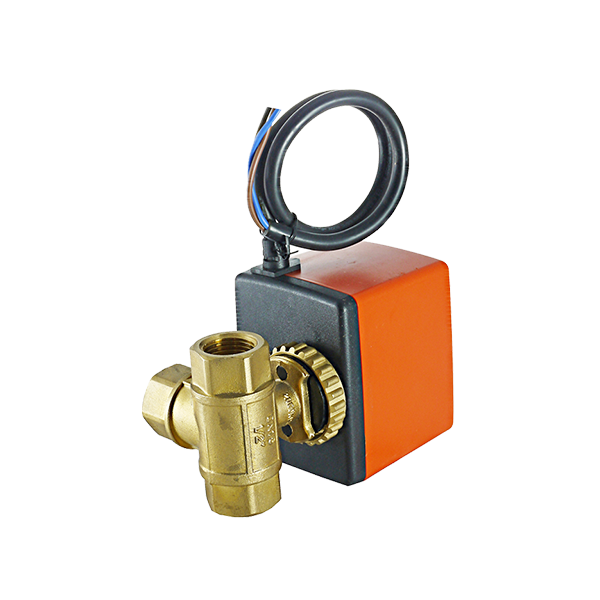

Types: 2-way Valve, 3-way Valve (side), 3-way Valve (base)

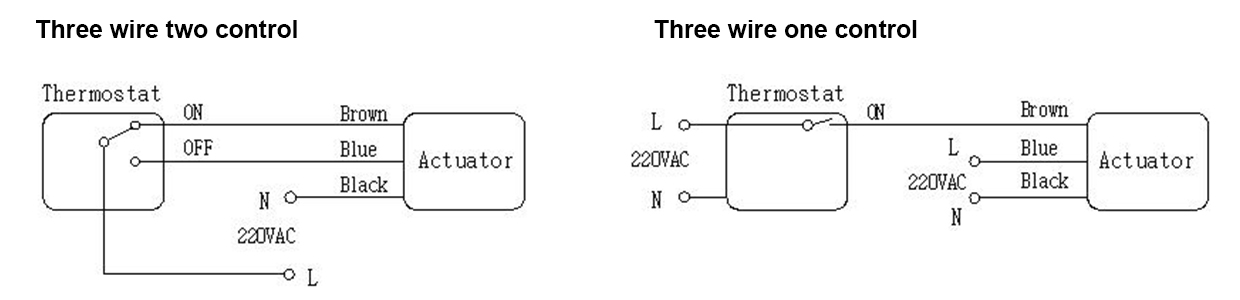

Operating Mode: 3-point control 24VAC or on/off

Power supply: AC220V, AC24V

Power Consumption: 5W(during valve position change)

Running Time: 15sec.(50Hz)/12 sec.(60Hz)

Seal: 2 EPDM O-rings, lubricated

Pressure Rating : 2MPa

Media Temp.Range: 1℃ to 95℃

Max Differential Pressure: 1MPa

Protection Grade: IP65

Servicing: maintenance free

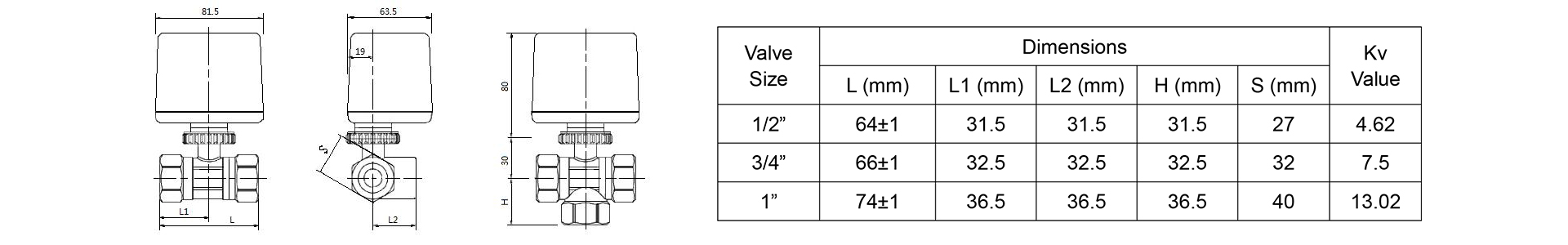

Dimension
FAQ
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
