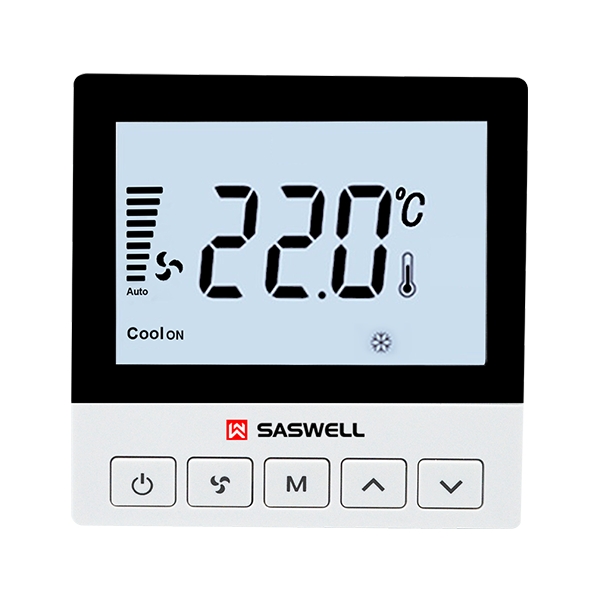

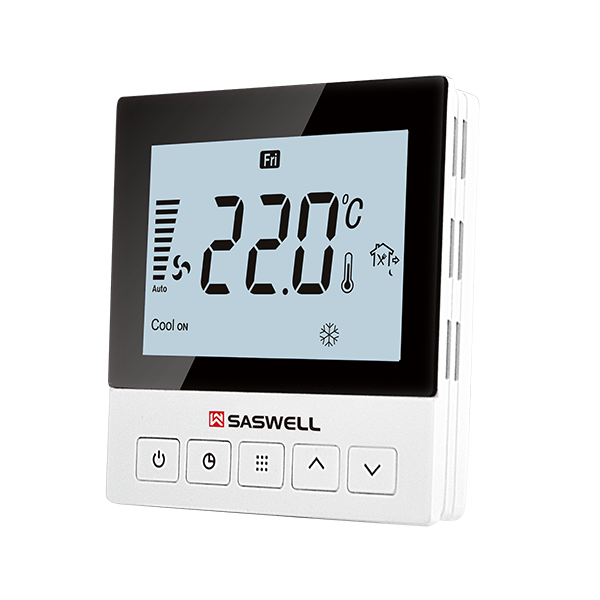

DX THERMOSTAT SAS921SLP

SAS921SLP

Get a quote

Large LCD display with backlight

Auto fan with adjustable 3-fan speed

7 days programmable

Permanent user setting retention during power loss, no batteries are required

Compressor delay

Home Product Commercial Thermostats DX Unit Thermostats

Product Description

This cooling-only thermostat is designed specifically for direct expansion (DX) systems, offering reliable temperature control and essential protection features. It includes a built-in compressor delay to prevent short cycling and extend compressor life, as well as an auto fan function with three adjustable fan speeds (Low, Medium, High) to optimize airflow and comfort.

Product Selector

Model No.

Heat/cool

Only cool

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS921SLP-7-S

√

24V/220VAC

download

Product Parameters

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Compressor Relay Amps inductive: 8(5)A
Set point Temperature Range: 5°C to 35°C
Dimensions: 88mm×88mm×15mm
