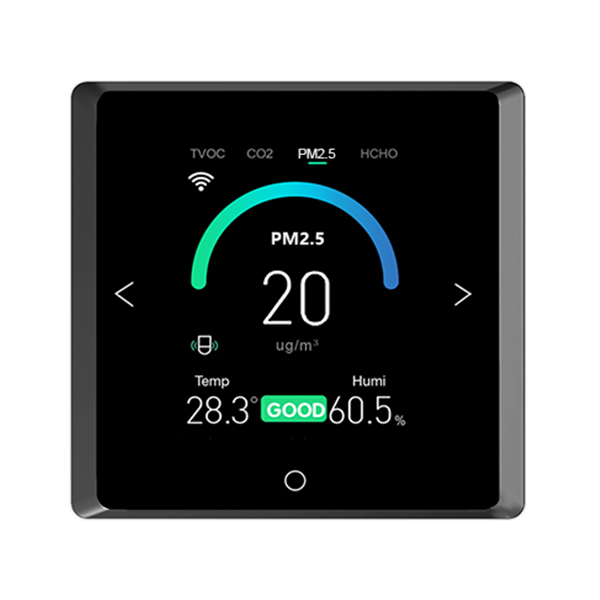

AIR QUALITY CONTROL

AQC912X

AIR QUALITY CONTROL

Get a quote

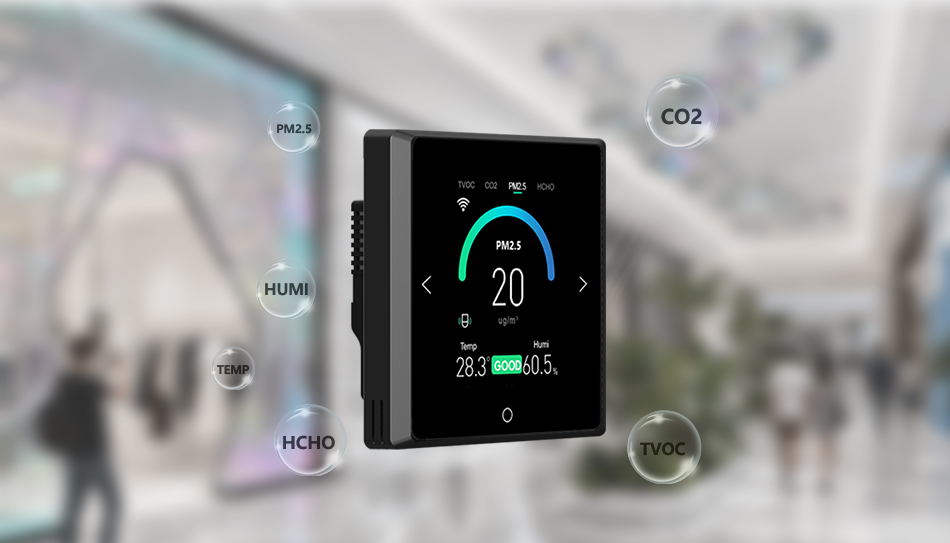

PM2.5/HUMI/TEMP/HCHO/CO2/TVOC detection

Supports RS-485 and WIFI protocols

Automatically adjusts screen brightness based on ambient conditions

Utilizes high-precision sensor technology

Different colors indicate air quality levels at a glance

Home Product Residential Sensors Indoor Air Quality (IAQ) Monitors

Product Description

Unlock an Energy-Saving & Healthier Place Through AQC912.Adopt independent high-precision single module to accurately detect the value of air quality.

Product Selector

Model No.

Precision module

Air Quality Indicator

Display

Modbus 485

Wifi

LoRaWAN

Zigbee

Bluetooth

Operation

Dimension

Power

Manual

AQC912XPCTH-485-WIFI

All-in-one sensor

√

2.8 inch

√

Touch Key

L86*W86*H12mm

24VAC

download

AQC912PCTH-485

All-in-one sensor

√

L86*W86*H12mm

24VAC

download

AQC912BXPCTH-485-LORA

Independent module

√

2.8 inch

√

Touch Key

L86*W86*H30mm

24VAC

Product Parameters

Power Supply:24VAC/DC(0.1A )

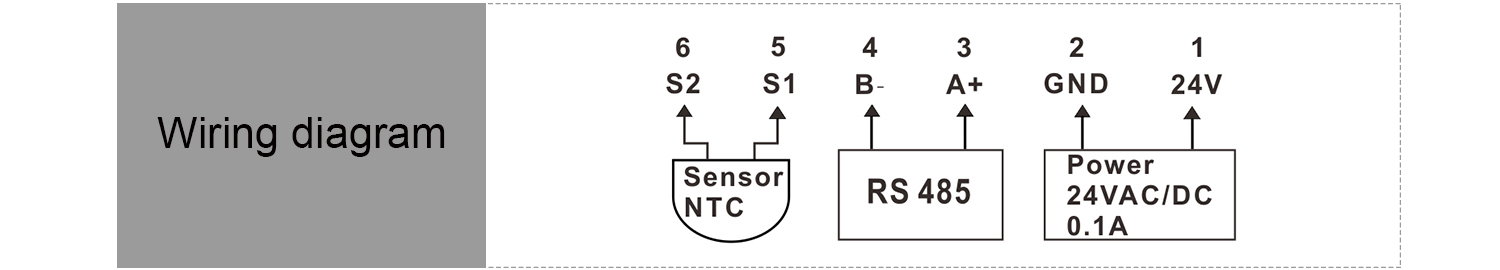

Wiring Terminal:24V、GND、RS485(A+、B-)、NTC10K/100K(S1、S2)

Display:2.8 inch colorful screen

Operation:Touch Key

Communication:Modbus RTU, 2-wires (Dial-code adrress)

Wireless Conn:Tuya WI FI(2.4G)

IP Class:IP21

Dimension:L86mm*W86mm*H12mm

Unlock an Energy-Saving & Healthier Place

Accurate detection of PM2.5, humidity (HUMI), temperature (TEMP), formaldehyde (HCHO), carbon dioxide (CO2), and total volatile organic compounds (TVOC).

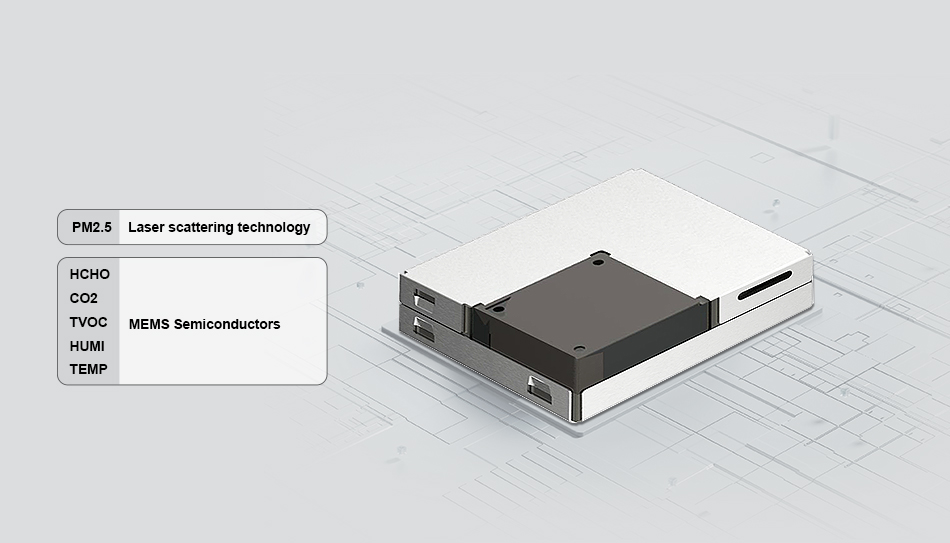

Sensor technology

Adopting all-in-one module

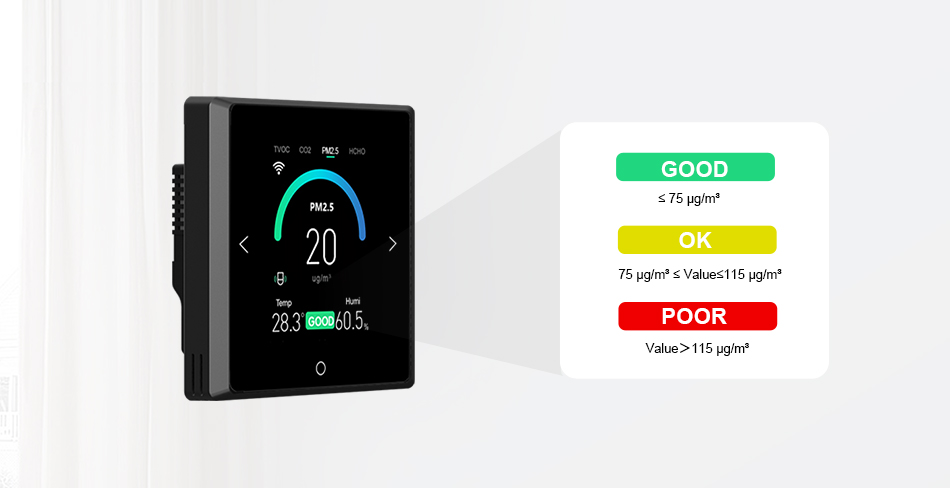

Color alarm in traffic light

With green, yellow, red, the three different colors to display indoor air quality and let you know your surroundings air quality at one glance.

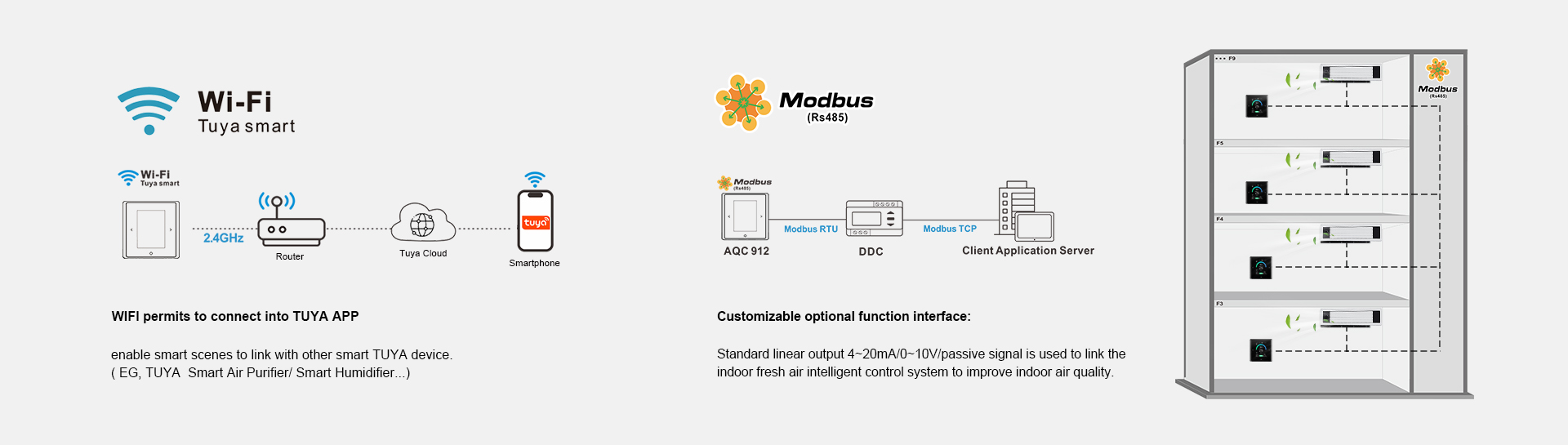

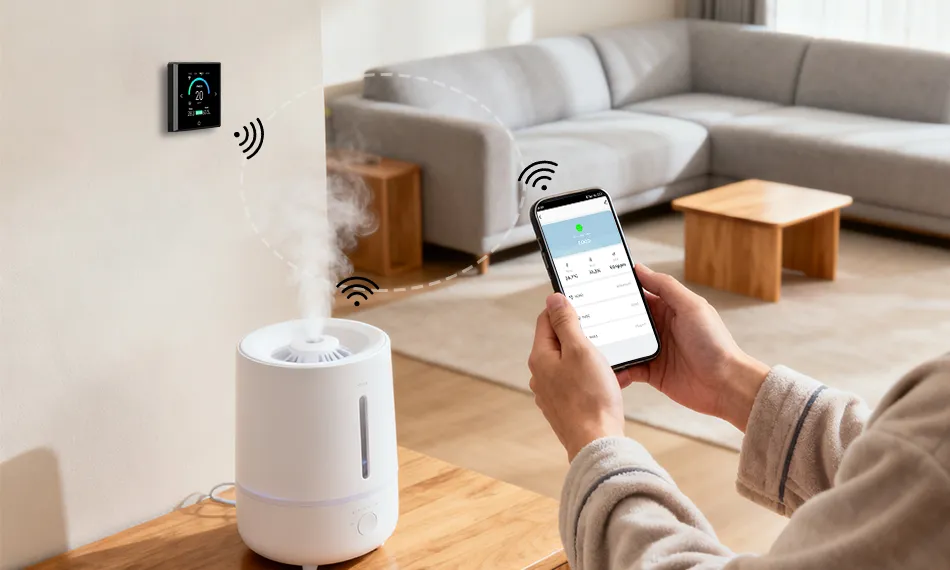

Smart linked

WlFl permits to connect into TUYA APPenable smart scenes to link with other smart TUYA device.(EG, TUYA Smart Air Purifier/ Smart Humidifier...)

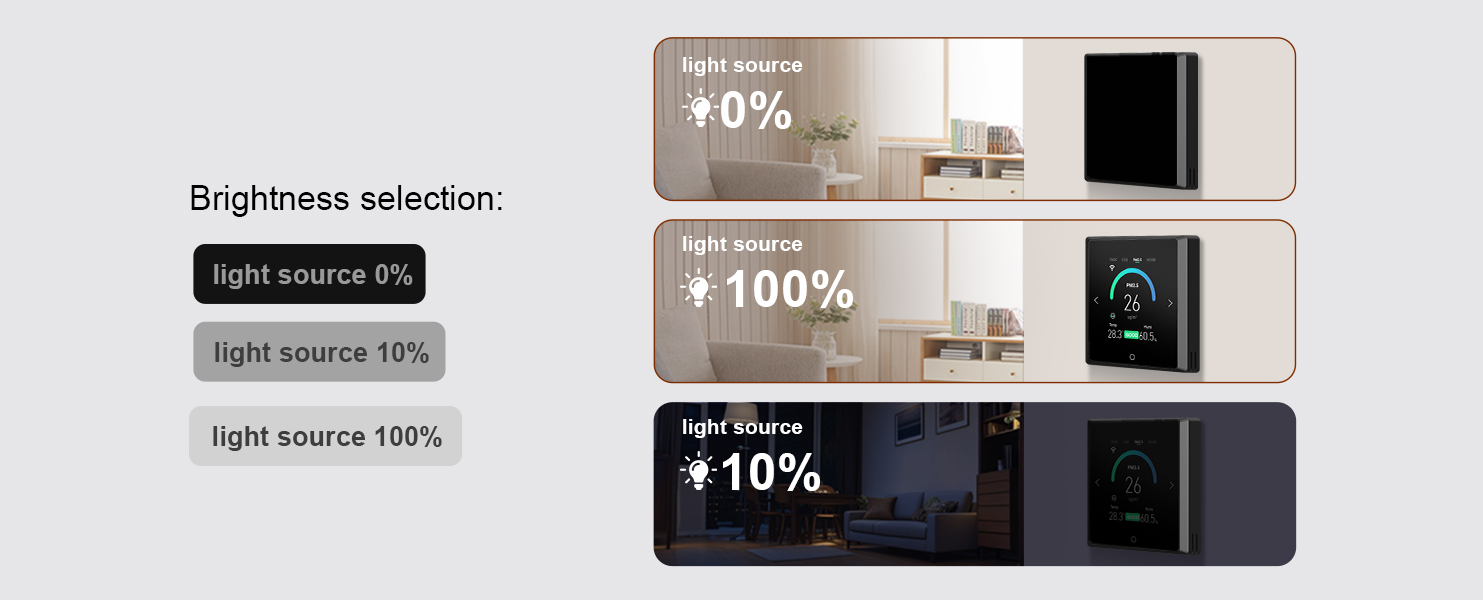

Smart Backlight

Automatically adjust the screen brightness to the appropriate level according to the ambient light source.

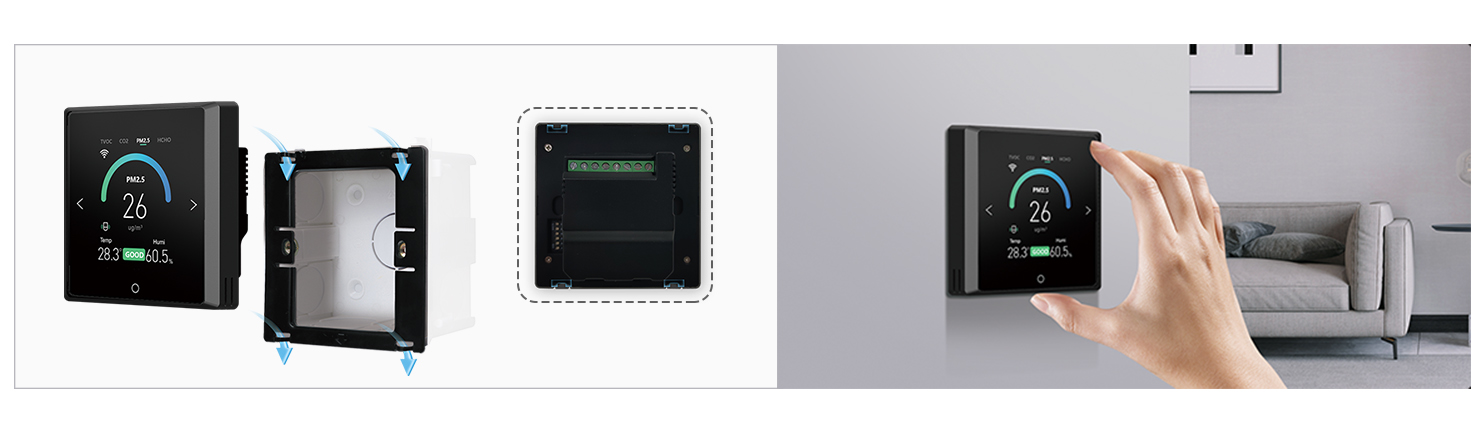

Installation

Easy to remove with the metal backplate, reduce maintenance time and cost.
