T18AIR
AIR QUALITY CONTROL

PM2.5/HUMI/TEMP/HCHO/CO2/TVOC detection

Supports RS-485 protocols

Automatically adjusts screen brightness based on ambient conditions

Utilizes high-precision sensor technology

Different colors indicate air quality levels at a glance

Product Description
Unlock an Energy-Saving & Healthier Place Through T18AIR.
Product Selector
Model No. WIFI Modbus RTU External sensor Screen display Touch button Power Manual
T18XAIR-485-WIFI(TY) download
T18AIR-485


download
Product Parameters

Power Supply:12-24VDC

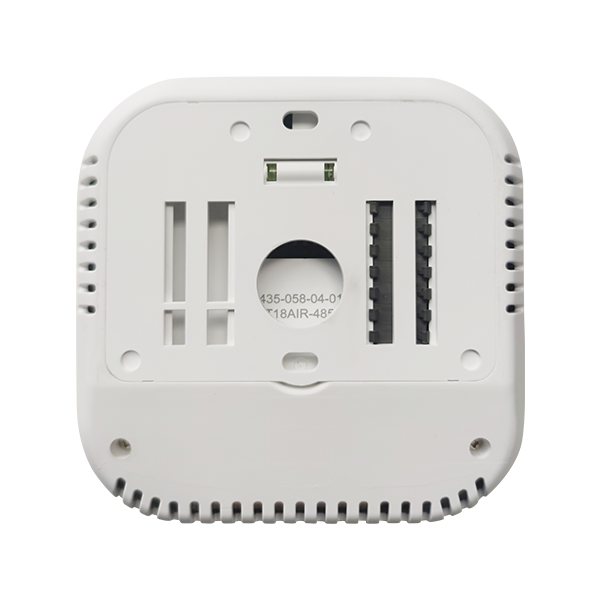

Wiring Terminal:24V、GND、RS485(A+、B-)、NTC10K/100K(S1、S2)、NC

Display:2.8 inch colorful screen

Button:Touch Key

Communication:RTU format MODBUS protocol, two-wire system (dial-code configuration address)

IP Class:IP21

Dimension:L110mm*W110mm*H28.6mm

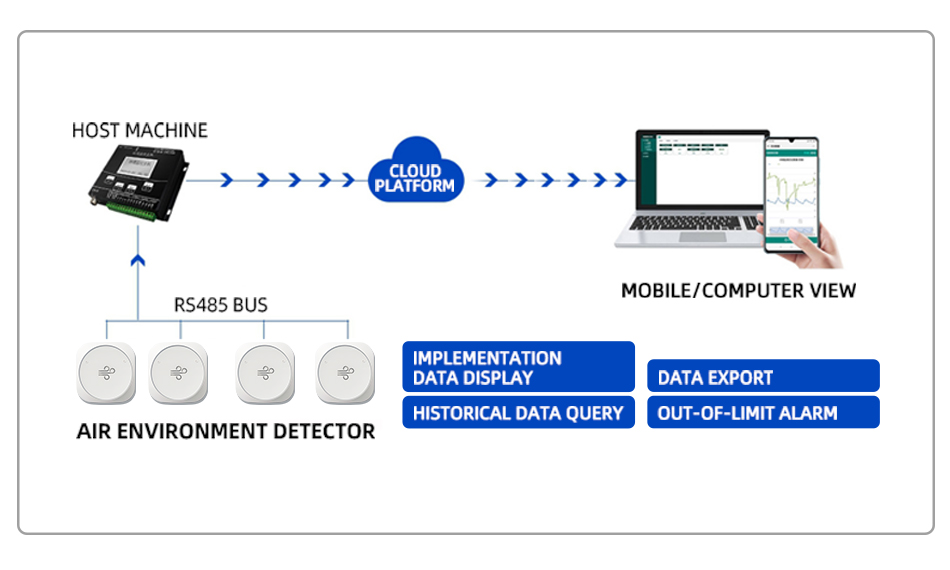

  • RS485 wired application
    Easily integrate smart building systems viaModbus RTU communications to automaticallyadjust HVAC ventilation systems based onreal-time air quality data.

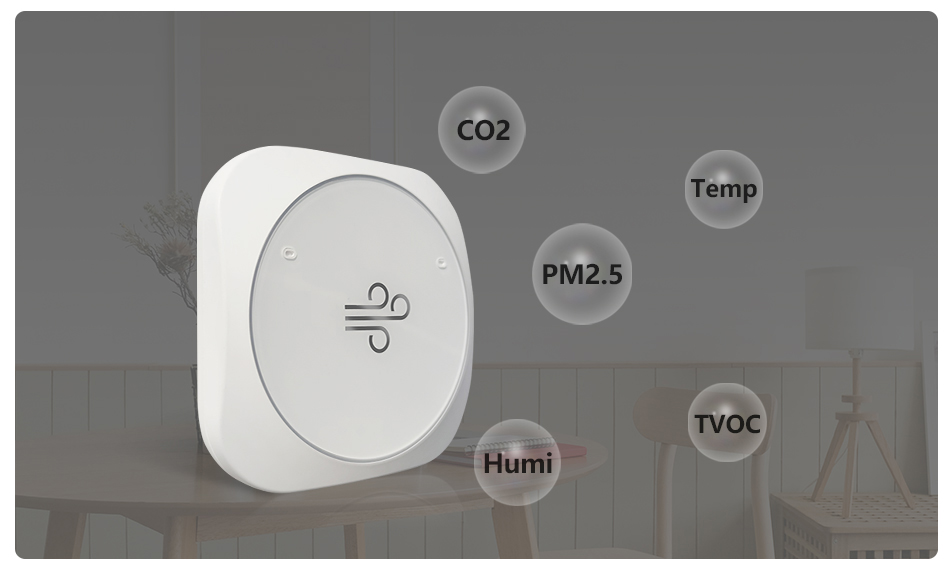

  • All-in-one functionality

    Advanced multi-functional detection with professional-grade intelligence — accurately detects CO2, PM2.5, temperature, humidity, and TVOC. Additionally, HOHC detection is customizable.

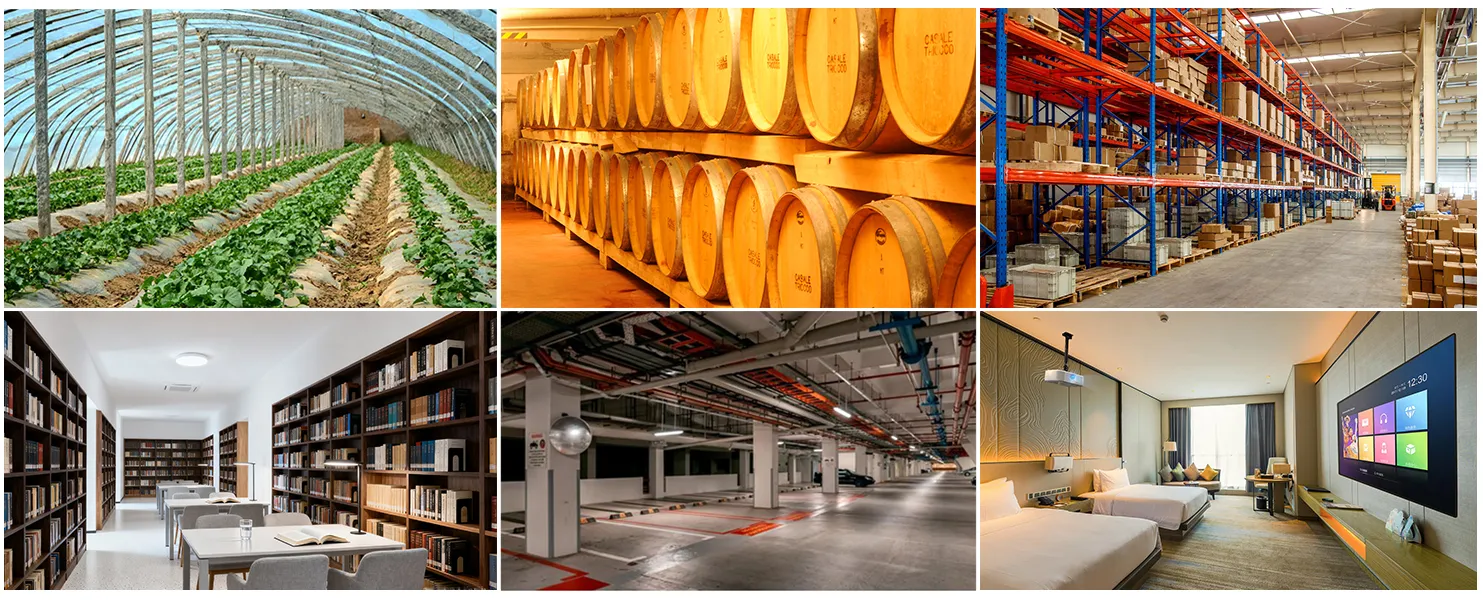

Application Scenarios

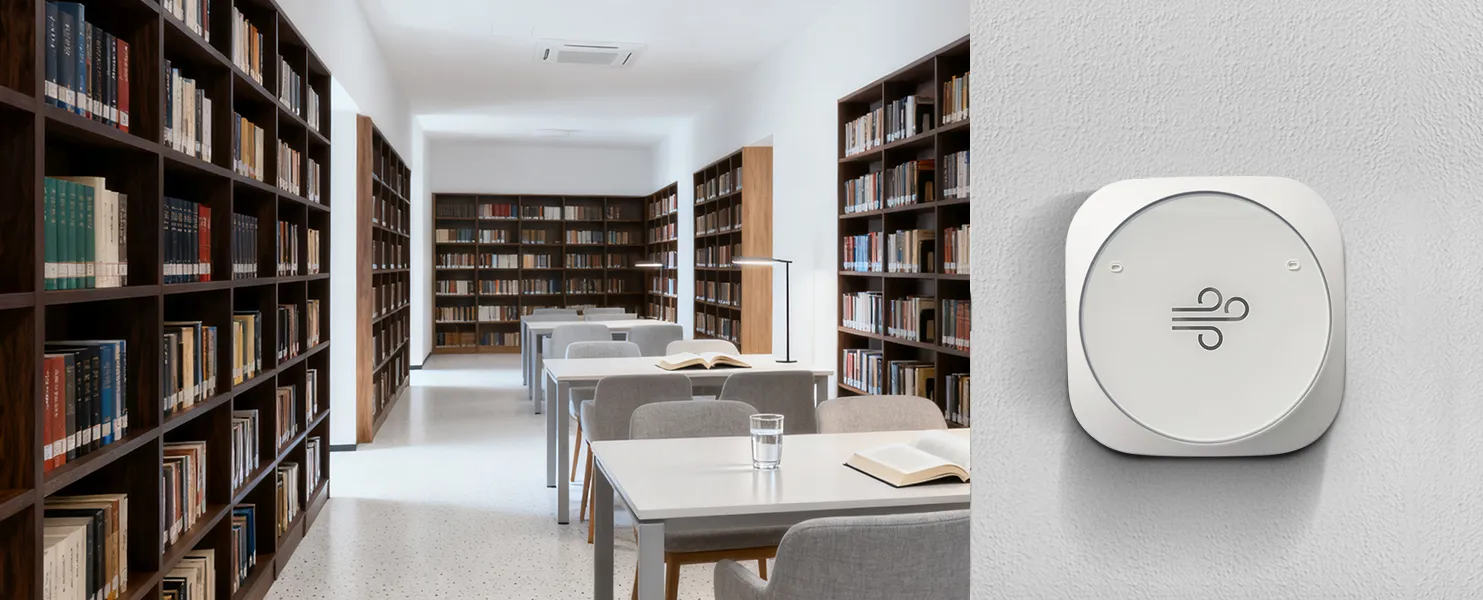

Suitable for use in greenhouses, underground parking lots, libraries, warehouses, and other similar locations.
