AQC912

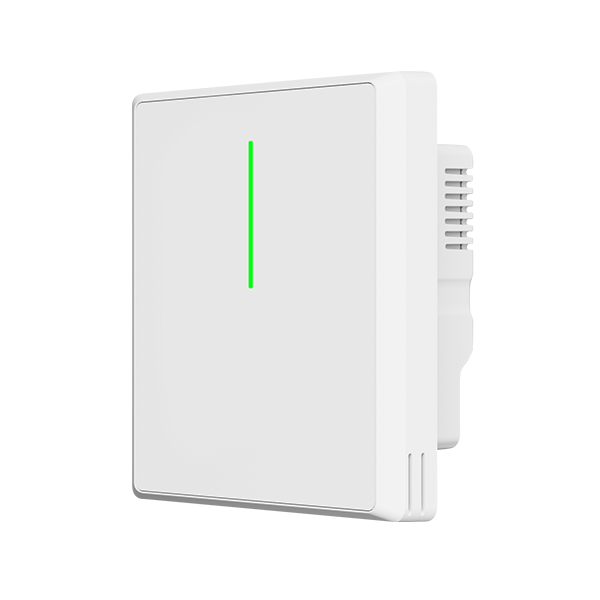

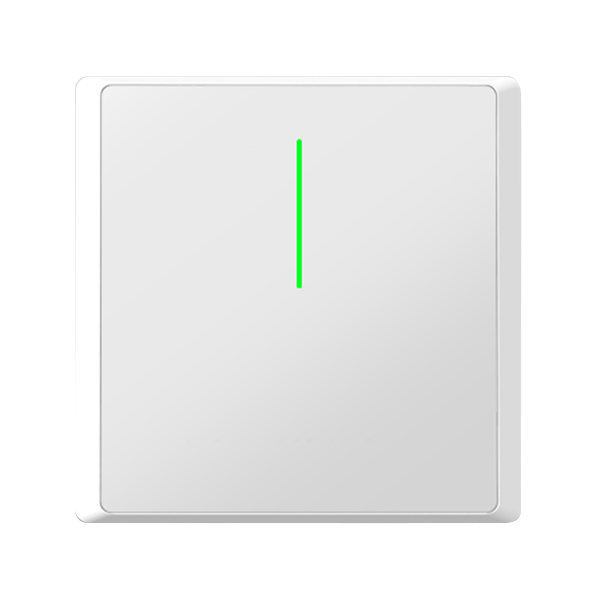

Smart ZigBee Temperature and Humidity Monitor

Get a quote

PM2.5/HUMI/TEMP/HCHO/CO2/TVOC detection

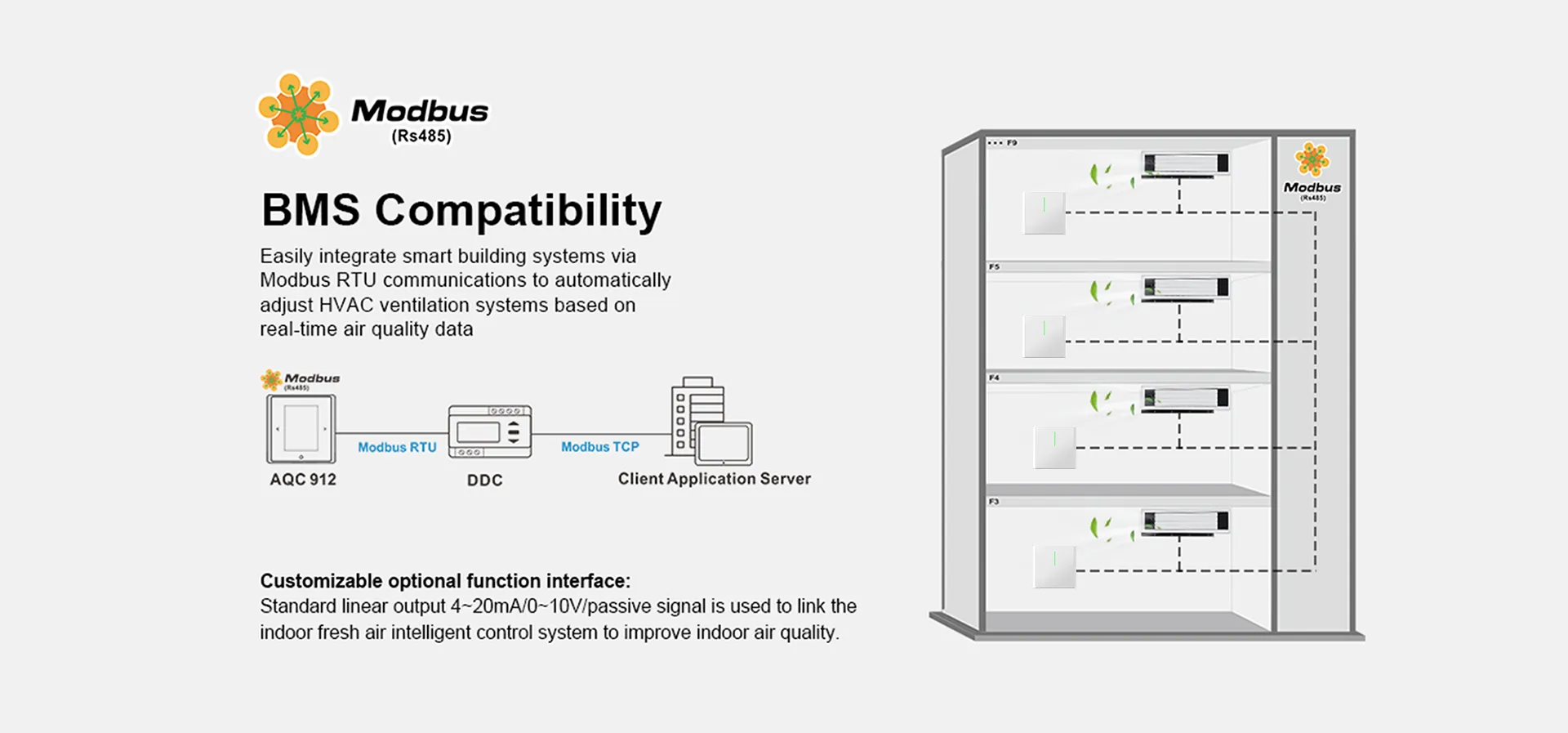

Supports RS-485 protocols

Color alarm in traffic light

Adopting all-in-one module

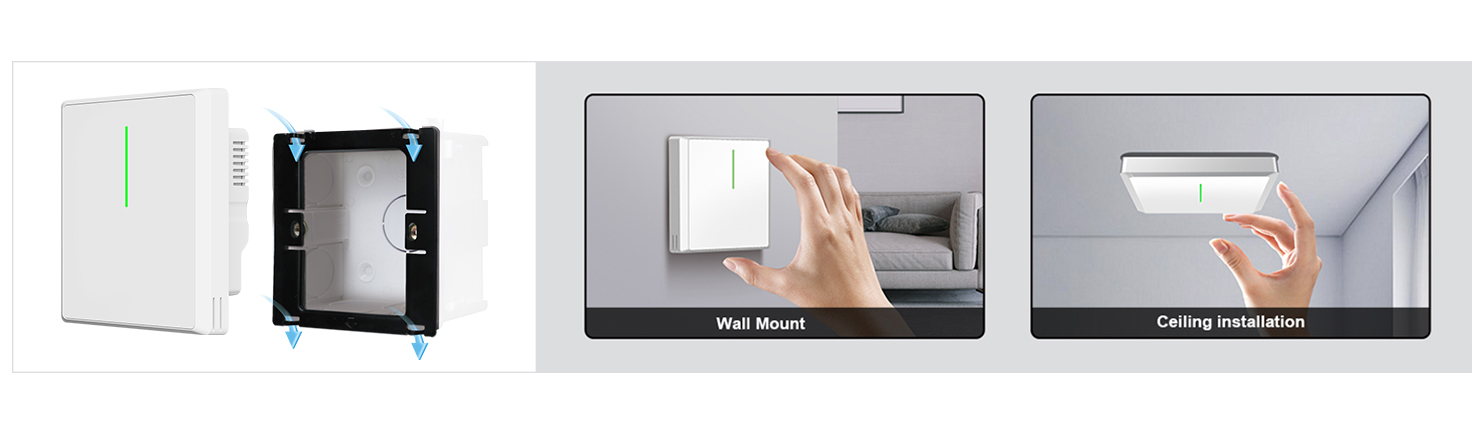

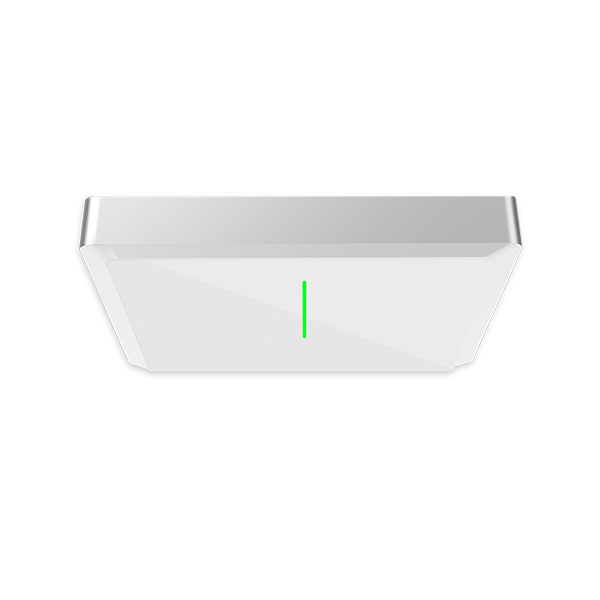

Wall Mount and Ceiling installation

Home Product Residential Sensors Indoor Air Quality (IAQ) Monitors

Product Description

Protect your family's health with the Saswell Smart Temperature and Humidity Monitor. Featuring high-precision sensors, ZigBee connectivity for real-time mobile app monitoring, and built-in air quality (PM2.5/PM1.0) detection. Link to smart devices like purifiers and A/C for automated indoor climate control.

Product Selector

Model No.

Precision module

Air Quality Indicator

Display

Modbus 485

Wifi

LoRaWAN

Zigbee

Bluetooth

Operation

Dimension

Power

Manual

AQC912XPCTH-485-WIFI

All-in-one sensor

√

2.8 inch

√

Touch Key

L86*W86*H12mm

24VAC

download

AQC912PCTH-485

All-in-one sensor

√

L86*W86*H12mm

24VAC

download

AQC912BXPCTH-485-LORA

Independent module

√

2.8 inch

√

Touch Key

L86*W86*H30mm

24VAC

Product Parameters

Power Supply:24VAC/DC(0.1A )
Wiring Terminal:24V、GND、RS485(A+、B-)、NTC10K/100K(S1、S2)
Communication:Modbus RTU, 2-wires (Dial-code adrress)
IP Class:IP21
Dimension:L86mm*W86mm*H12mm
Breathing Light Indicator(Air Quality)：GOOD (green light), OK (yellow light), POOR (red light)
Inner Temperature & Humidity：Detection Range: 0°C ~ +50°C 10% ~95% RH Accuracy: ±1°C ±5%
External Temperature(NTC 10K/ 100K)：Temperature Detection Range: 0°C ~ +50°C
Storage Environment Temperature：-10 ~60°C, 0 ~90% RH(Non-condensation)
Working Environment Temperature：0 ~ 50°C, 0 ~80% RH(Non-condensation）

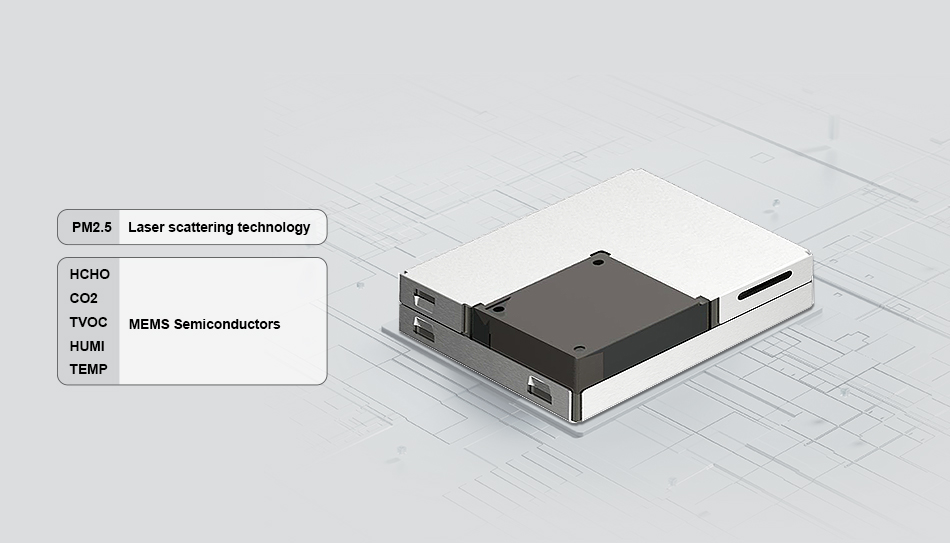

Sensor technology

Adopting all-in-one module
Unlock an Energy-Saving & Healthier Place

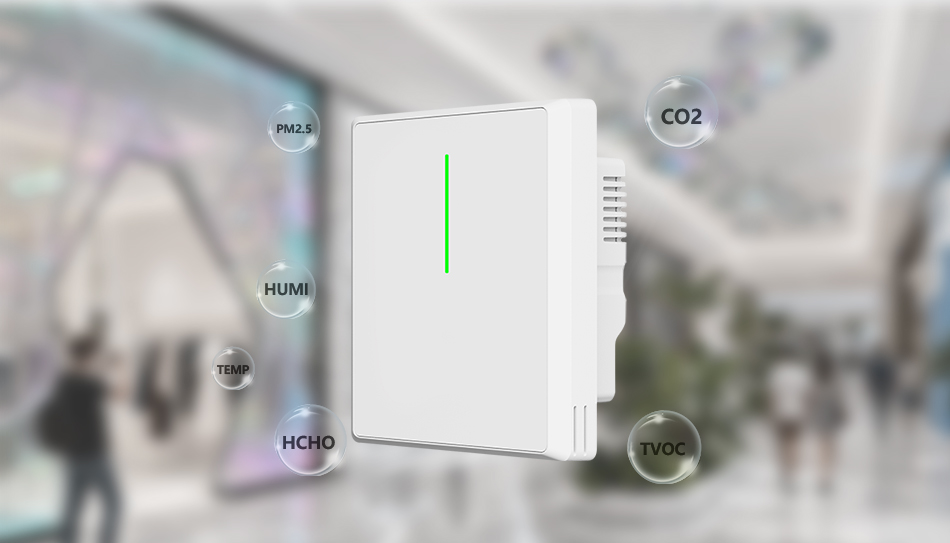

Accurate detection of PM2.5, humidity (HUMI), temperature (TEMP), formaldehyde (HCHO), carbon dioxide (CO2), and total volatile organic compounds (TVOC).

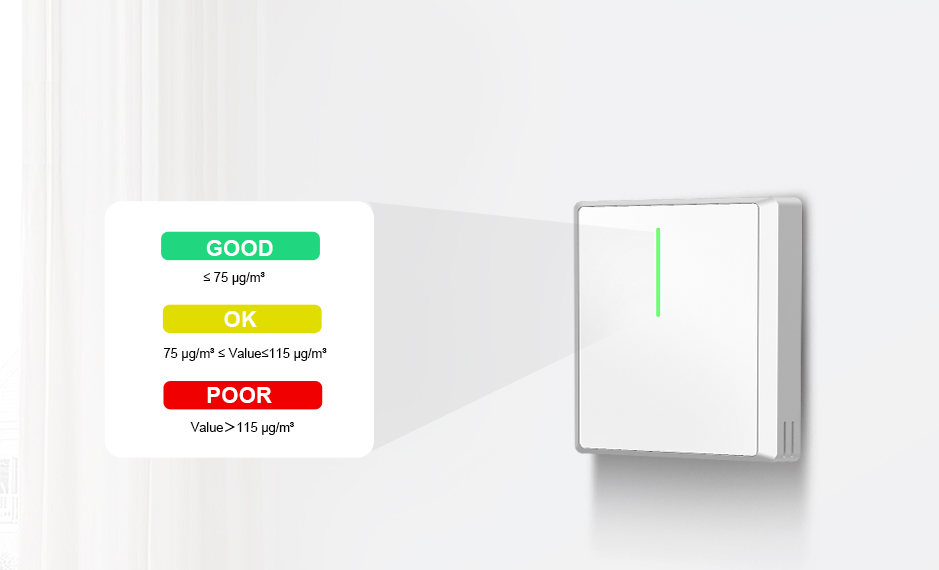

Color alarm in traffic light

With green, yellow, red, the three different colors to display indoor air quality and let you know your surroundings air quality at one glance.
