SAS920PIT

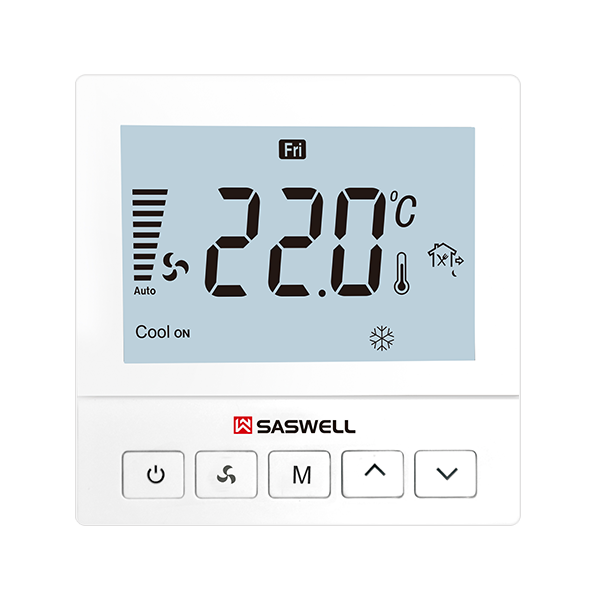

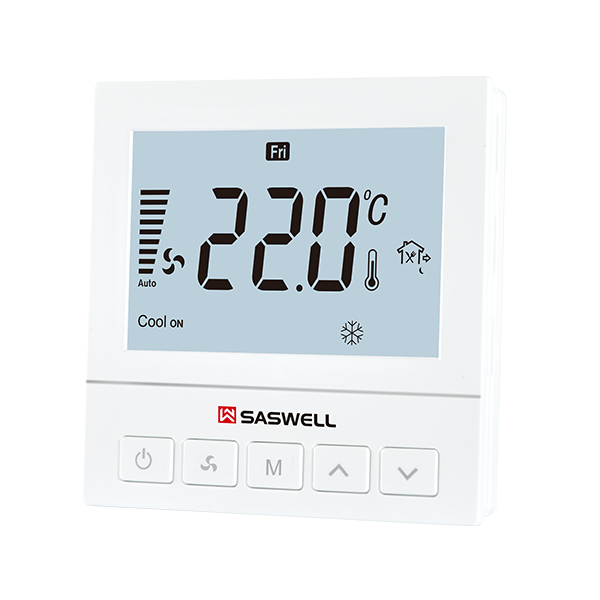

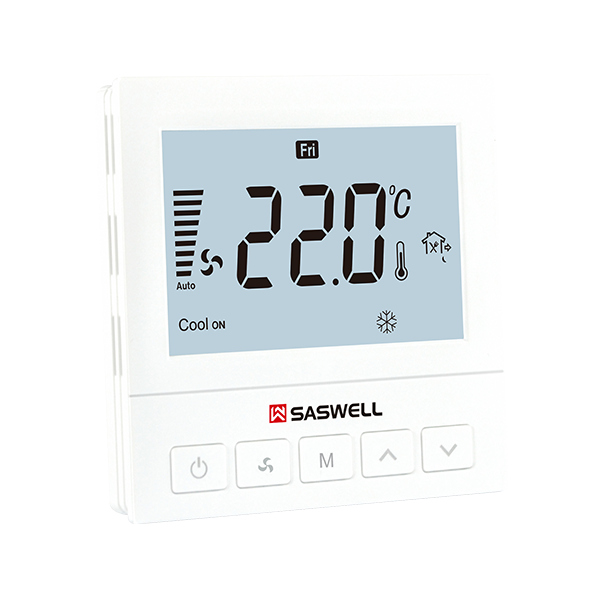

MODULATING THERMOSTAT SAS920PIT
Get a quote

Large LCD display with backlight

0 to 10VDC or 4 to 20mA cool output

Auto fan with adjustable 3-fan speed

Permanent user setting retention during power loss, no batteries are required

Low voltage power supply

Maintains the temperature to within 0.5 degree set point

HomeProductCommercialThermostatsModulating Thermostats
Product Description
Application: Heat/cool, 3 speed fan, 2 pipe fan coil unit
Product Selector
Model No. Heat/cool Cool only Pipe Speed fan Programmable Window card Room card External Sensor Modbus RTU WIFI Power Manual
SAS920PIT-CO-F3
√ 2 3


√ √ √ 24VAC download
Product Parameters
Power Supply: 18-30VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Modulating output Voltage: 4 to 20mA or 0 to 10VDC
Room Temperature Setting Range: 5°C to 35°C
Dimensions: 88mm×88mm×15mm
FAQ
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
