SAS922PIT

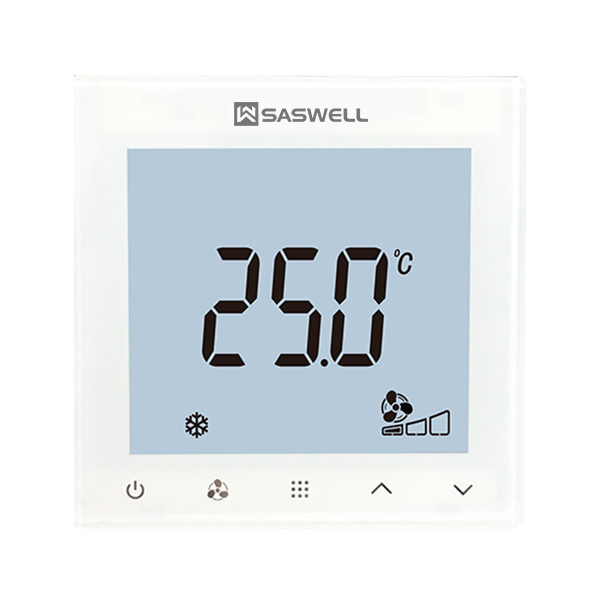

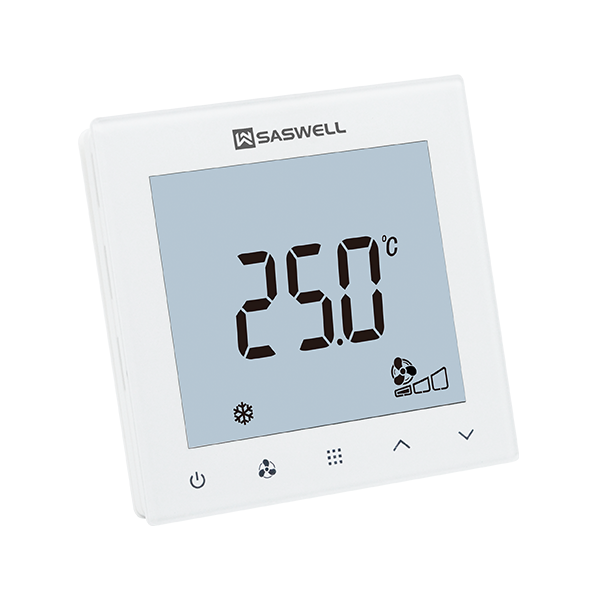

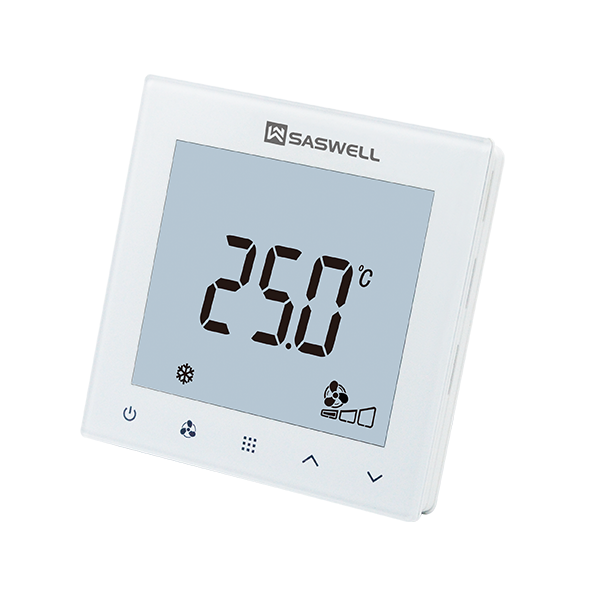

MODULATING THERMOSTAT SAS922PIT
Get a quote

Touch button easy for operation

Heating,cooling and ventilation mode

Auto fan with adjustable 3-fan speed

Modbus communication

Room Sensor or External sensor option

Accuracy modulating control (4 to 20mA or 0 to 10VDC) system

HomeProductCommercialThermostatsModulating Thermostats
Product Description
SAS922PIT modulating digital thermostats are designed to provide Proportional-Integral (PI) modulating control in 2-pipe fan coil units. This thermostat can provide modulating analog 0-10V or 0-20mA control signal.
Product Selector
Model No. Heat/cool Cool only Pipe Speed fan Programmable Window card Room card External Sensor Modbus RTU WIFI Power Manual
SAS922PIT-CO-F3-485
√ 2 3 √ √ √ √ √ √ 220VAC download
SAS922PIT-EC-485
√ 2 EC motor √ √ √ √ √ √ 220VAC download
SAS922PIT-2-F3-485 √
2 3 √ √ √ √ √ √ 220VAC download
SAS922PIT-ECH-485 √
2 EC motor √ √ √ √ √ √ 220VAC download
Product Parameters
Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Heat/Cool Relay Amps inductive: 3(2)A
Room Temperature Setting Range: 5°C to 35°C
Dimensions: 88mm×88mm×15mm
FAQ
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
