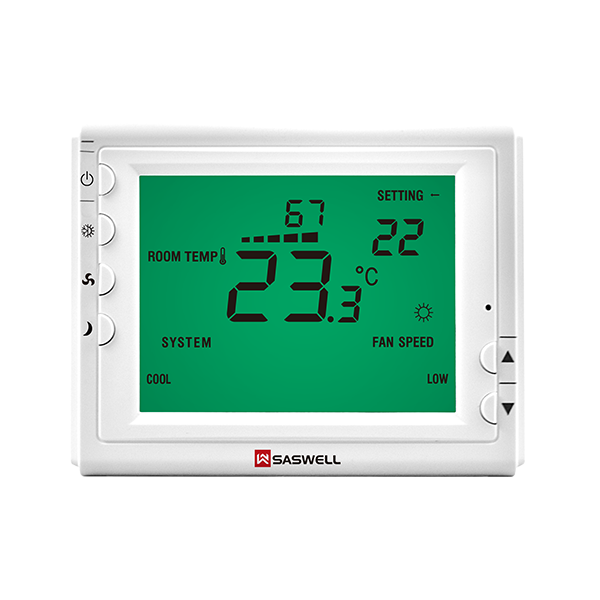

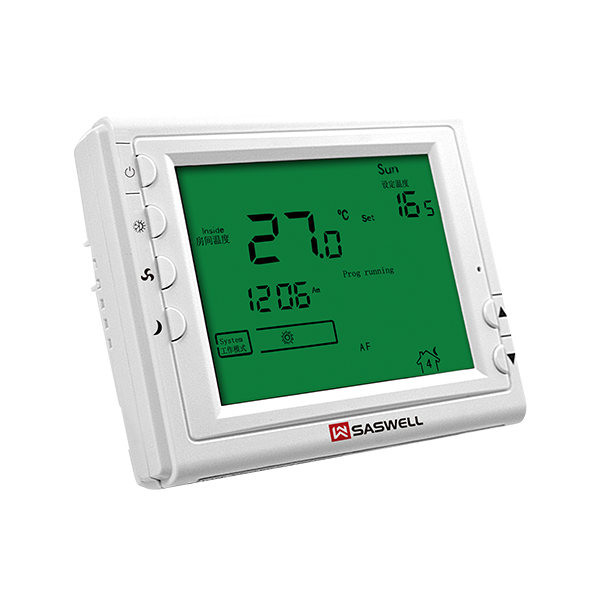

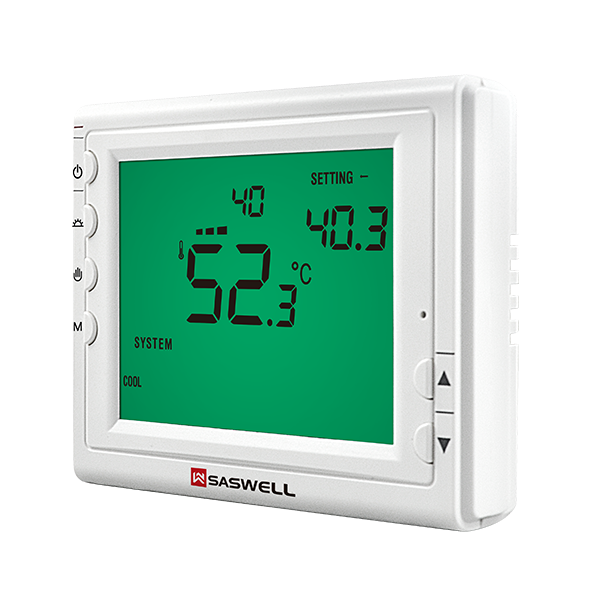

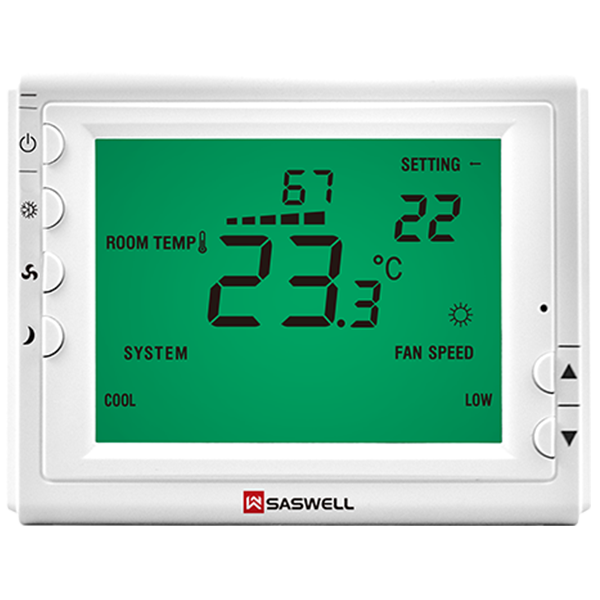

MODULATING THERMOSTAT SAS908PIT

SAS908PIT

Get a quote

Large LCD display with backlight

Set points and room temperature display simultaneously

Adjustable 3-speed fan with fan stop option

The screen displays the set temperature, the room temperature simultaneously

Never lose user setting in the event of power-off, no battery is required

0 to 10VDC or 0 to 20mA heat and cool outputs

Inner Sensor or External sensor option

Fahrenheit or Celsius display capability

Home Product Commercial Thermostats Modulating Thermostats

Product Description

The SAS908PIT modulating digital thermostats are designed to provide Proportional-Integral (PI) modulating control in fan coil units, zoned commercial heating, Ventilating and various heating and cooling applications.This thermostat provides modulating analog 0-10V or 0-20mA control. Other availablefeature includes energy savings card key input, auto-detection of temperature sensor (remotesensor or internal sensor), and optional Celsius or Fahrenheit operation.

Product Selector

Model No.

Heat/cool

Cool only

Pipe

Speed fan

Programmable

Electric heater

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

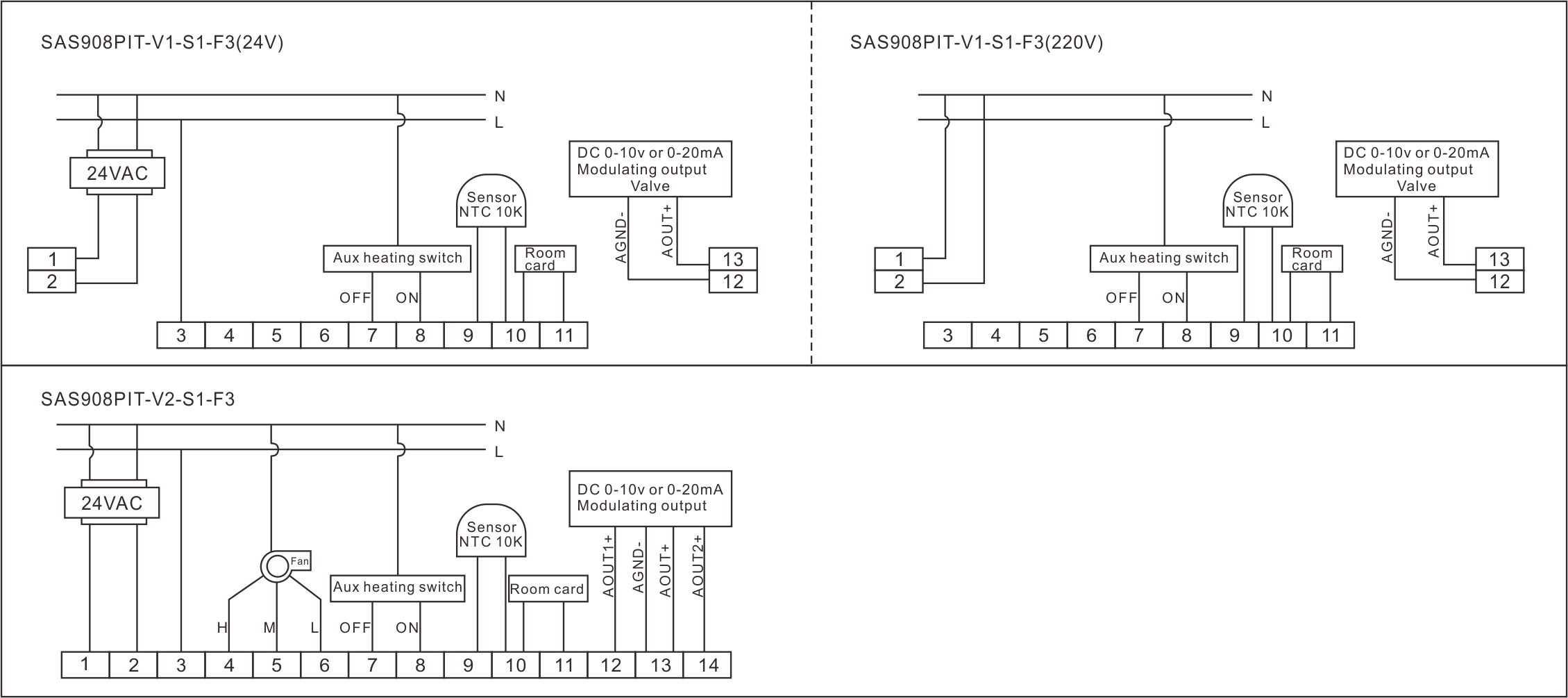

SAS908PIT-V1-S1-F3

√

24V/220VAC

download

SAS908PIT-V2-S1-F3

√

24VAC

download

Product Parameters

Power Supply: 18-30VAC or 100-240VAC 50/60Hz
Fan Relay Amps inductive: 5(3)A
Heat Relay Amps inductive: 1(0.5)A
Room temperature setting range: 5°C to 35°C (41°F to 95°F)
Modulating output voltage: 0 to 20mA or 0 to 10VDC
Accuracy:±0.2°F or ±0.1°C
Dimensions: 115mm×90mm×35.5mm

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
