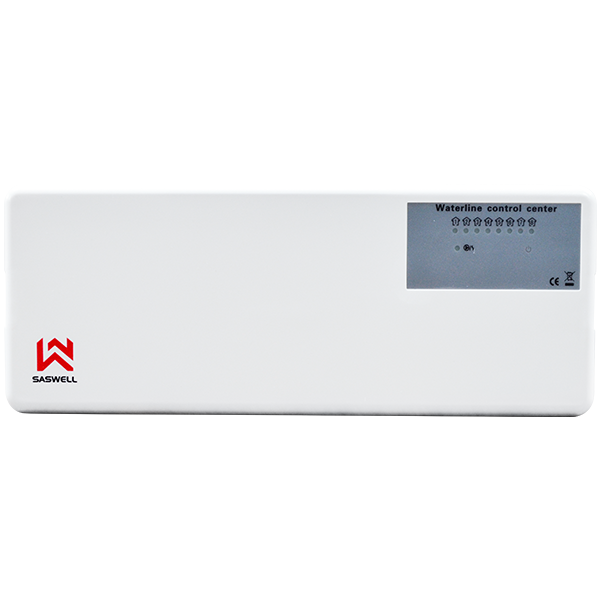

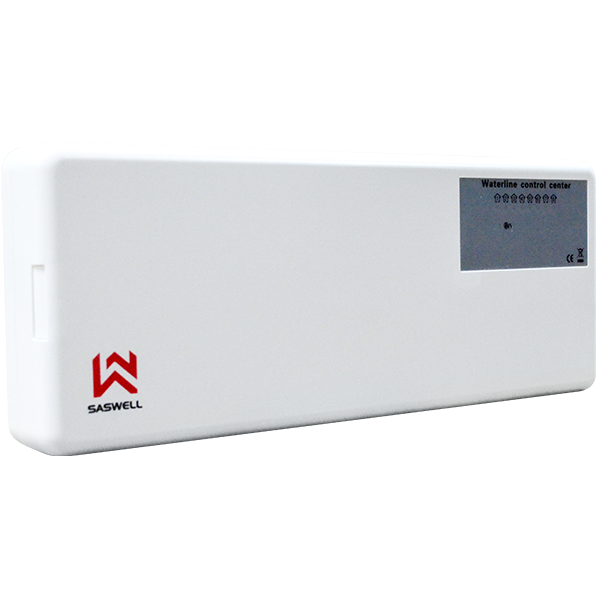

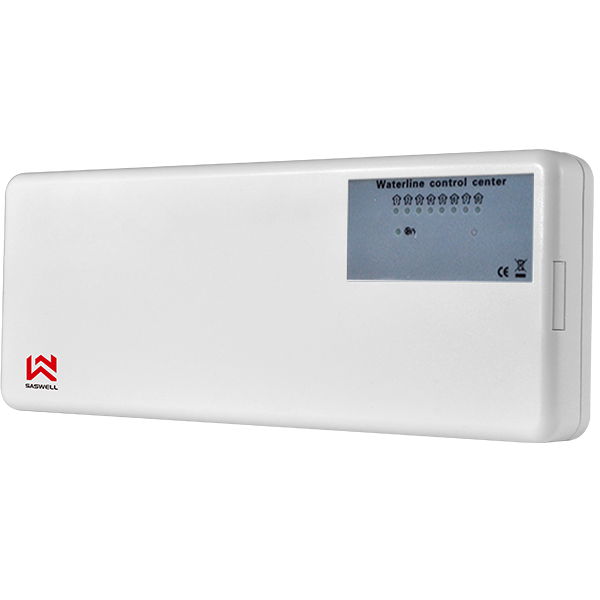

SCU209-LED

Multi-Zone Waterline Heating Control Center

Get a quote

Indicator lights for clear status and easy troubleshooting

Boiler-pump interlock with delay protection for safety

Easy DIN rail installation and maintaining

Compatible with conventional wired thermostats for water underfloor heating

Home Product Residential Thermostats Underfloor Heating Wiring Centre

Product Feature

The waterline heating system SCU209-LED has been developed to provide a temperature , control system for room heating / cooling, integrating the switching of primary heating sources with the control of water temperature and mixing devices. This ensures the best possible comfort conditions and also reduces energy consumption.

Product Selector

Model No.	RF	5 Zone	8 Zone	Timer	Work with thermostat	Power	Manual
SCU209-LED	√		√		SAS816WHL-0, SAS920XWHL, SAS922WHL, SAS965WHL, SAS920XRCH	220VAC	download
SCU209-LED-(TM1)	√		√	√	SAS816WHL-0, SAS920XWHL, SAS922WHL, SAS965WHL, SAS920XRCH	220VAC	download
SCU209DE	√		√		SAS816WHB-0-DF, SAS908XWHB-7-DF, SAS920XWHB-7-S-DF, SAS918WHB-0-DF, T19XWHB-7-DF	220VAC	download

Product Parameters

Power supply: 100-240V AC, 50/60Hz

Imax total: 10A

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 70℃

Dimensions: 280mm X 110mm X40mm

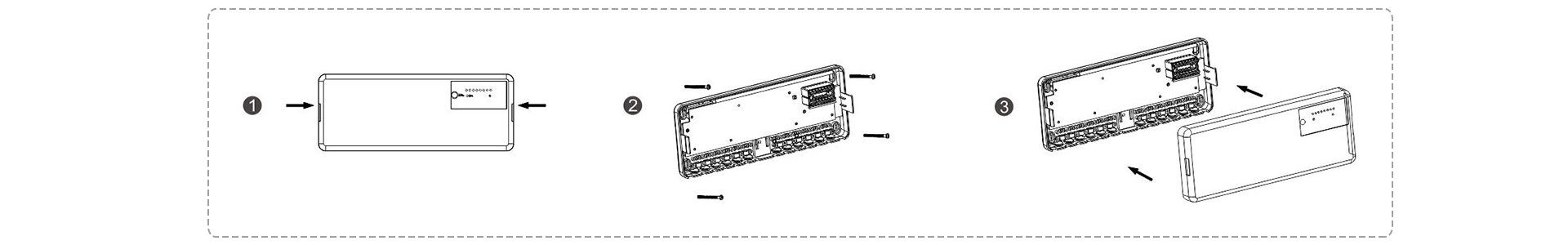

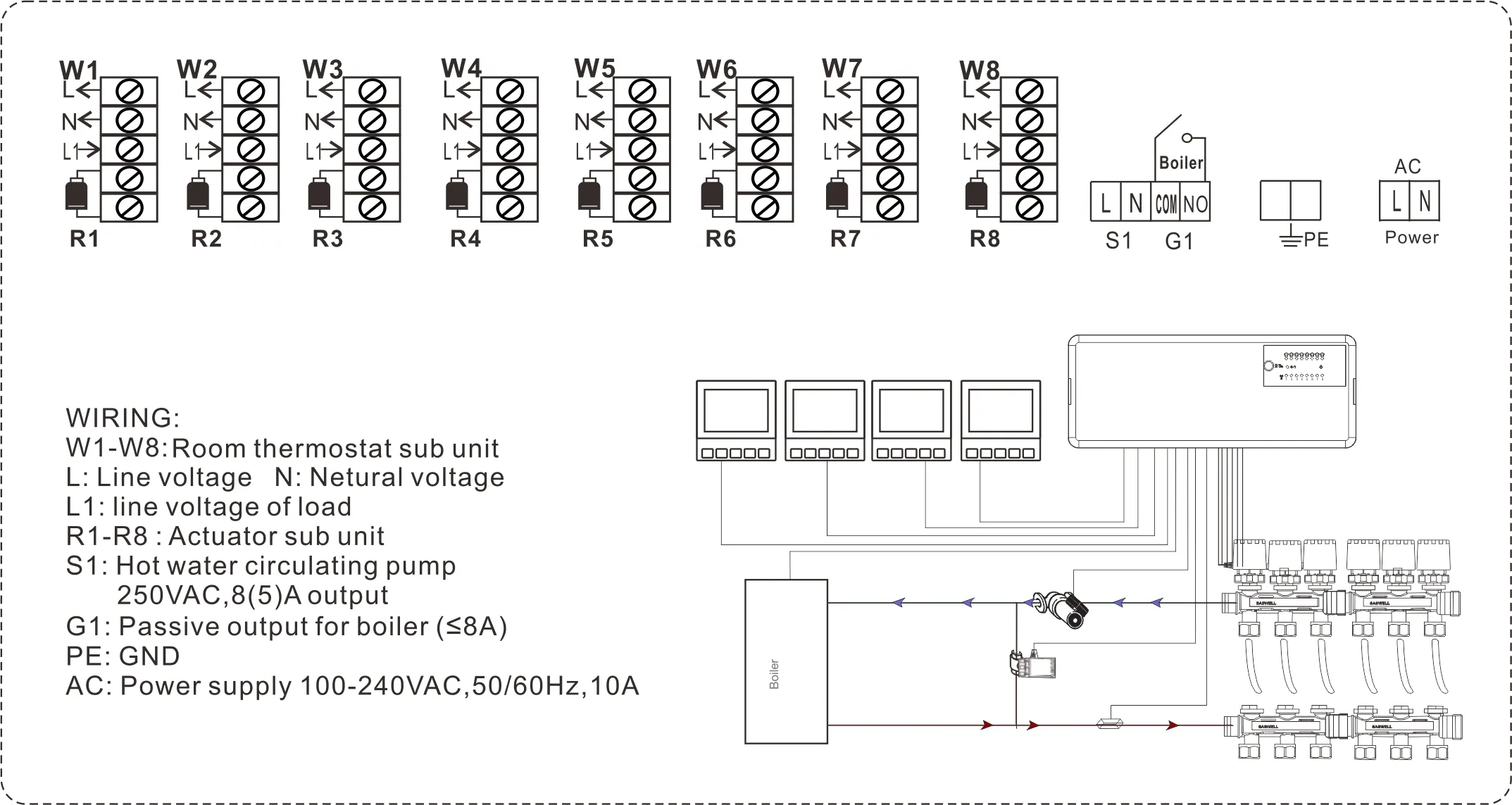

Installation
