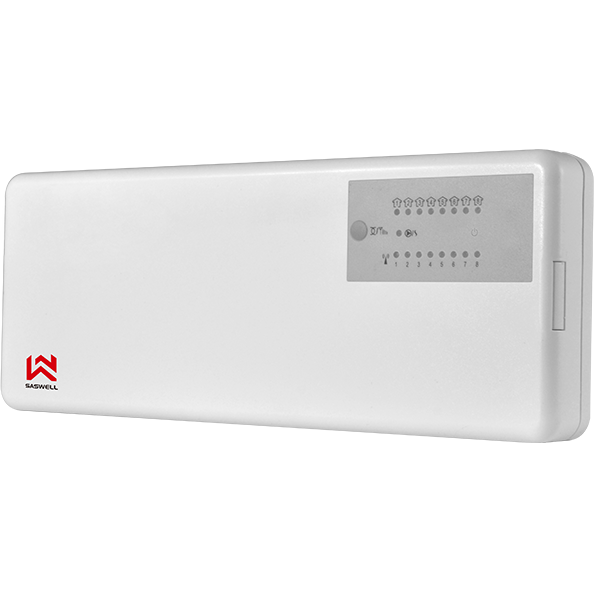

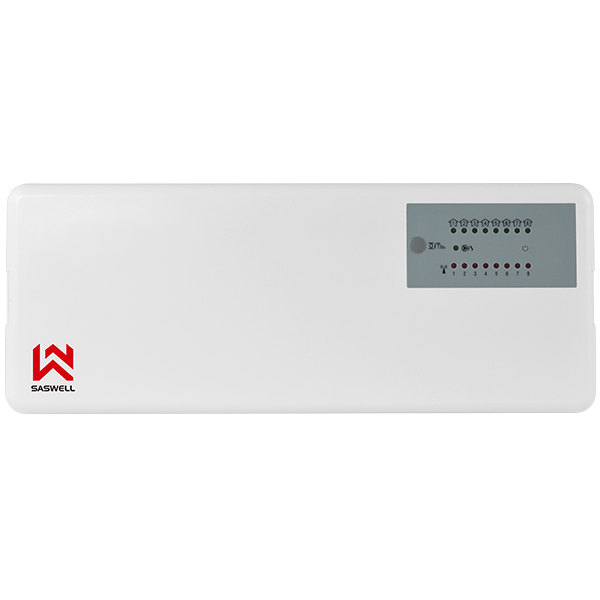

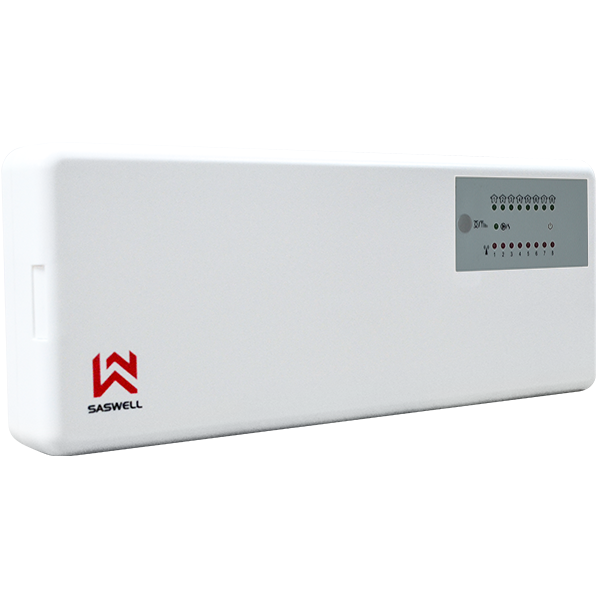

SCU209-DE

Wireless wiring center with 8 independent control zones

Get a quote

Indicator lights for clear status and easy troubleshooting

Boiler-pump interlock with delay protection for safety

Easy DIN rail installation and maintaining

Compatible with conventional wired thermostats for water underfloor heating

8 independent control zones

Home Product Residential Thermostats Underfloor Heating Wiring Centre

Product Feature

SCU209DE works with wireless waterline floor heating control system. It can receive up to 8-loops control signal coming from 8 RF room thermostats and control 8 thermal actuator zone valves. Besides as a central control unit, it can control the boiler and the circulation pump as well.

Product Selector

Model No.	RF	5 Zone	8 Zone	Timer	Work with thermostat	Power	Manual
SCU209-LED	√		√		SAS816WHL-0, SAS920XWHL, SAS922WHL, SAS965WHL, SAS920XRCH	220VAC	download
SCU209-LED-(TM1)	√		√	√	SAS816WHL-0, SAS920XWHL, SAS922WHL, SAS965WHL, SAS920XRCH	220VAC	download
SCU209DE	√		√		SAS816WHB-0-DF, SAS908XWHB-7-DF, SAS920XWHB-7-S-DF, SAS918WHB-0-DF, T19XWHB-7-DF	220VAC	download

Product Parameters

Power source: 100－240VAC 50~60Hz

Max Load pumps and Thermal actuators: 250VAC 10A

Boiler relay: Volt free signal. I Max8(5)A

Main pump relay: 250VAC Max.5A

Thermo actuator: 8X230VAC, Max 2A per output, Max 5A in total.

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 70℃

Radio communication mode: Half-duplex

Frequency band: 868MHz（FSK）

Valid receiving distance: 100m

Dimensions: 280mm X 110mm X40mm

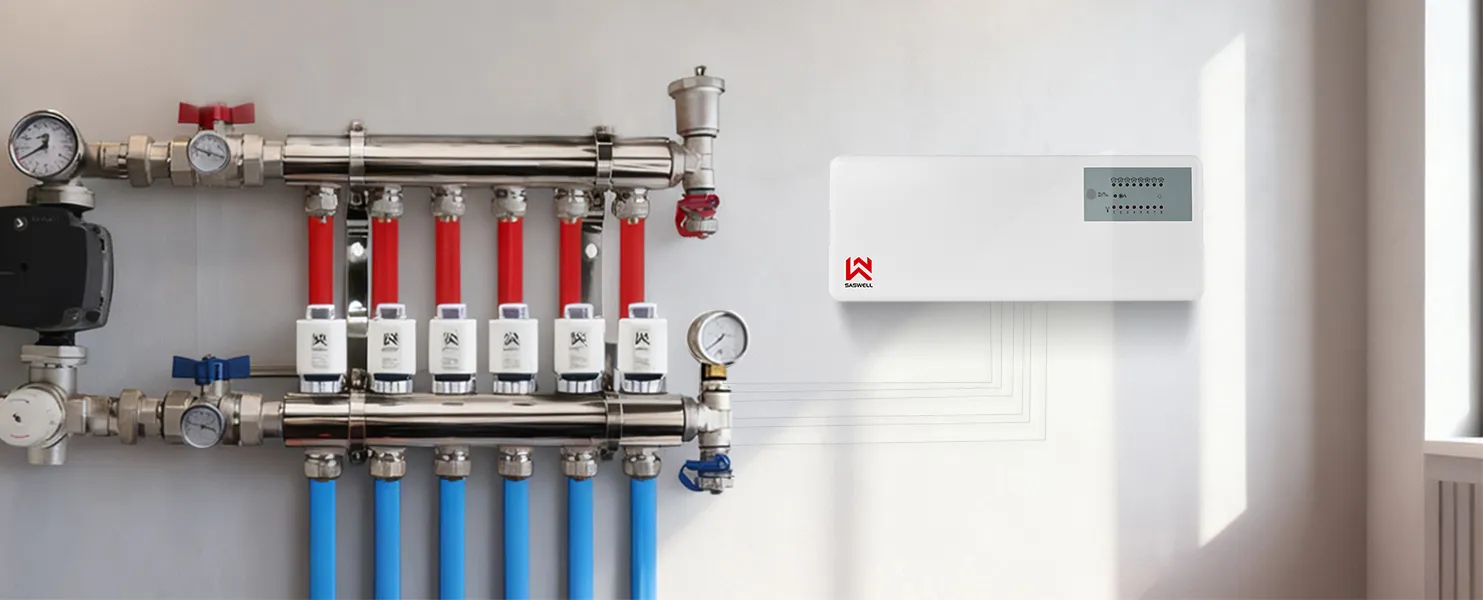

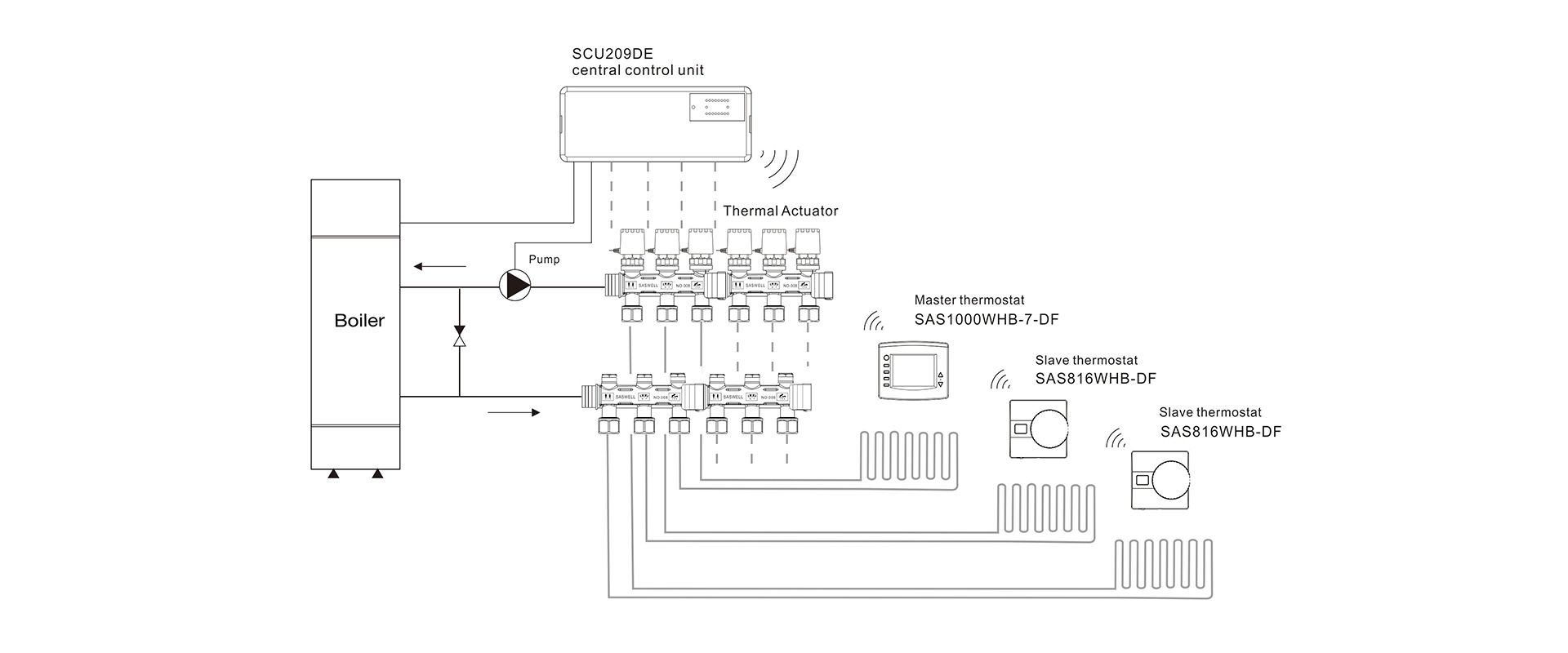

Application

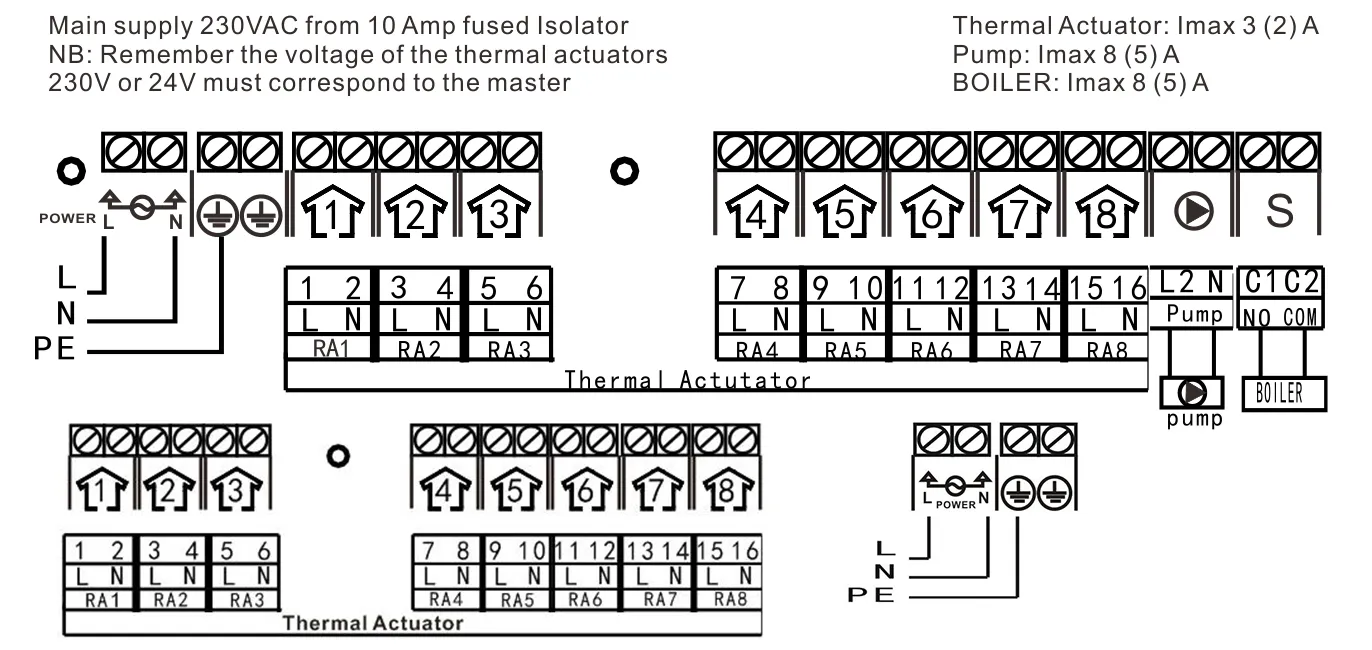

Installation

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
