SCU210

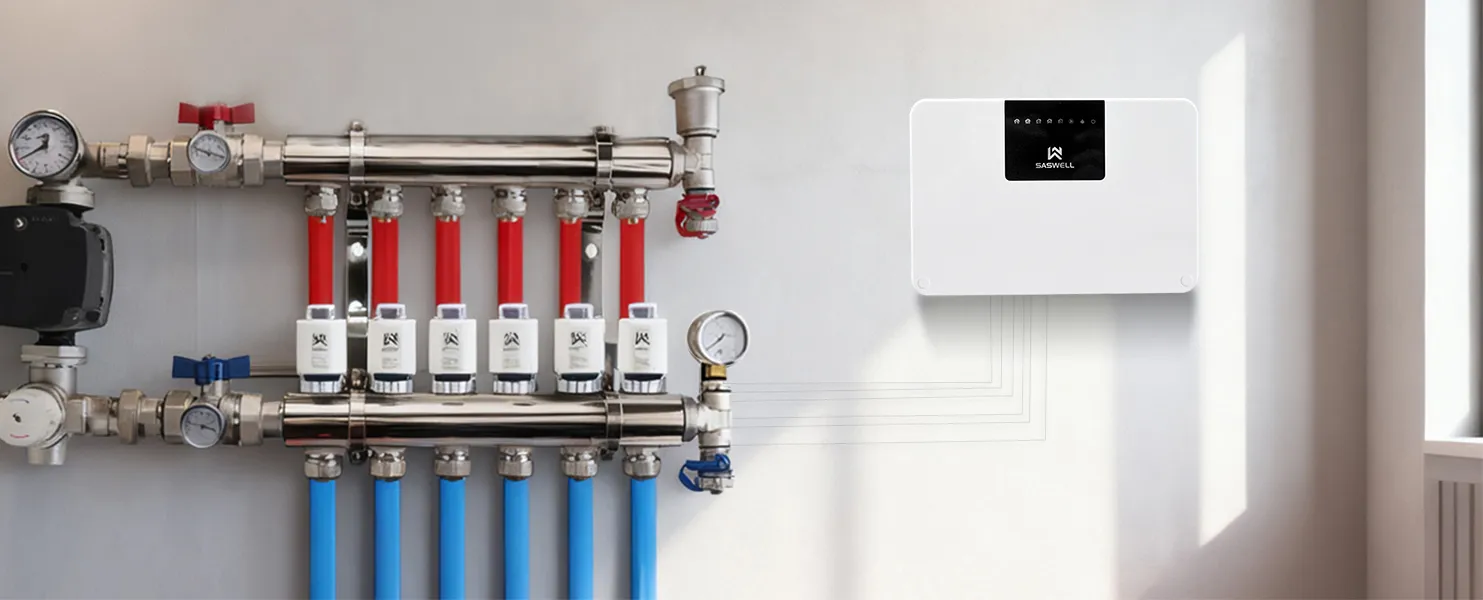

Wiring center with 5 independent control zones

Get a quote

Indicator lights for clear status and easy troubleshooting

Boiler-pump interlock with delay protection for safety

Easy DIN rail installation and maintaining

Compatible with conventional wired thermostats for water underfloor heating

Home Product Residential Thermostats Underfloor Heating Wiring Centre

Product Feature

The waterline heating system SCU210 has been developed to provide a temperature , control system for room heating / cooling, integrating the switching of primary heating sources with the control of water temperature and mixing devices. This ensures the best possible comfort conditions and also reduces energy consumption.

Product Selector

Model No.	RF	5 Zone	8 Zone	Timer	Work with thermostat	Power	Manual
SCU210		√			SAS816WHL-0, SAS920XWHL, SAS922WHL, SAS965WHL, SAS920XRCH	220VAC	download
SCU210DE	√	√			SAS816WHB-0-DF, SAS908XWHB-7-DF, SAS920XWHB-7-S-DF, SAS918WHB-0-DF, T19XWHB-7-DF	220VAC	download

Product Parameters

Power source: 100－240VAC 50~60Hz

Max load pumps and Thermal actuator: 250VAC 10A

Boiler relay: Volt free signal. I Max8(5)A

Main pump relay: 250VAC Max.5A

Thermo actuator: 5X230VAC, Max 2A per output, Max 5A in total

Operation temperature: -20℃ ~ 60℃

Storage temperature:-20℃ ~ 70℃

Dimensions: 160mm X 110mm X35mm

Color: White

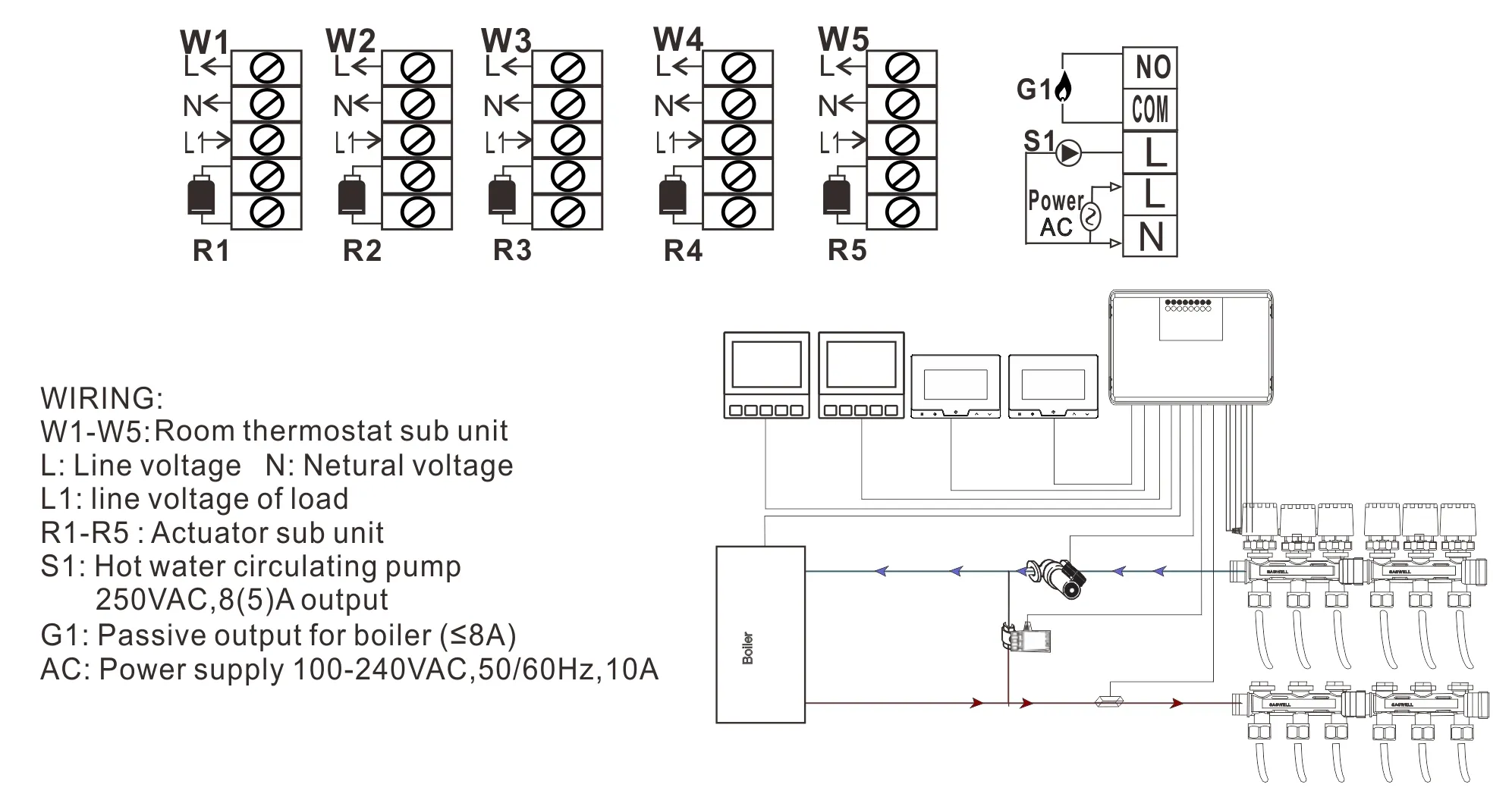

Installation

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
