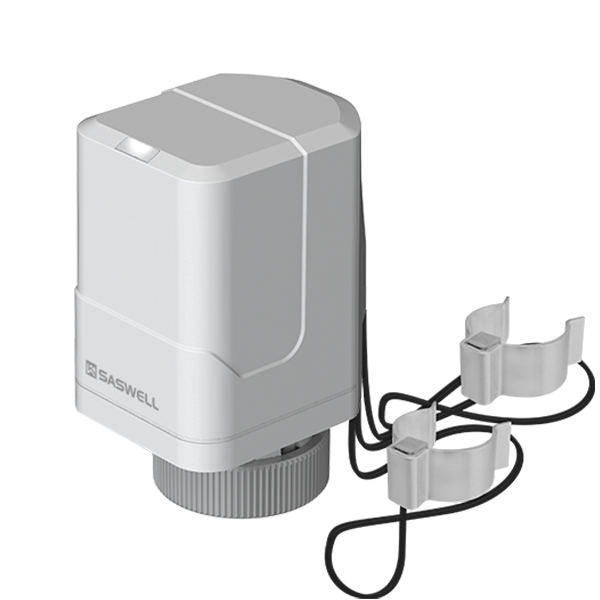

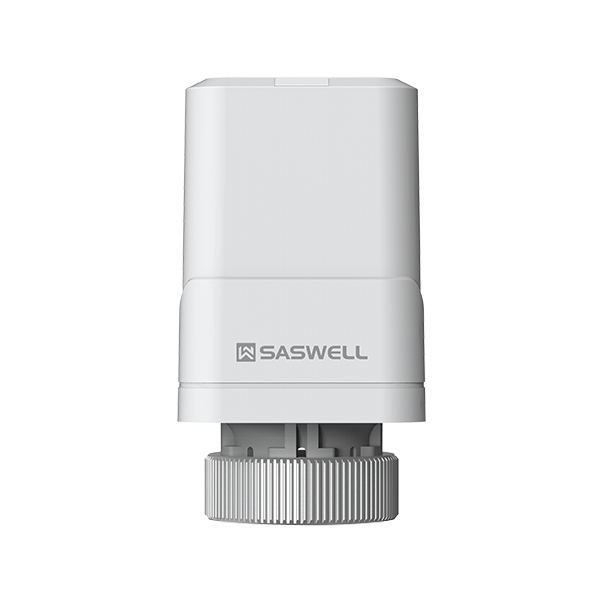

Underfloor Heating Auto Balancing Actuator

SA905-T

Get a quote

Save energy through increased efficiency

Quick and easy to install

Precision motorized actuator

Fast valve response time

Makes balancing retrofit systems simple

Includes temperature sensors

Up to 4 actuators per zone

Install & forget UFH balance control

Home Product Residential Valves and Actuator Underfloor heating (UFH) actuator

Product Description

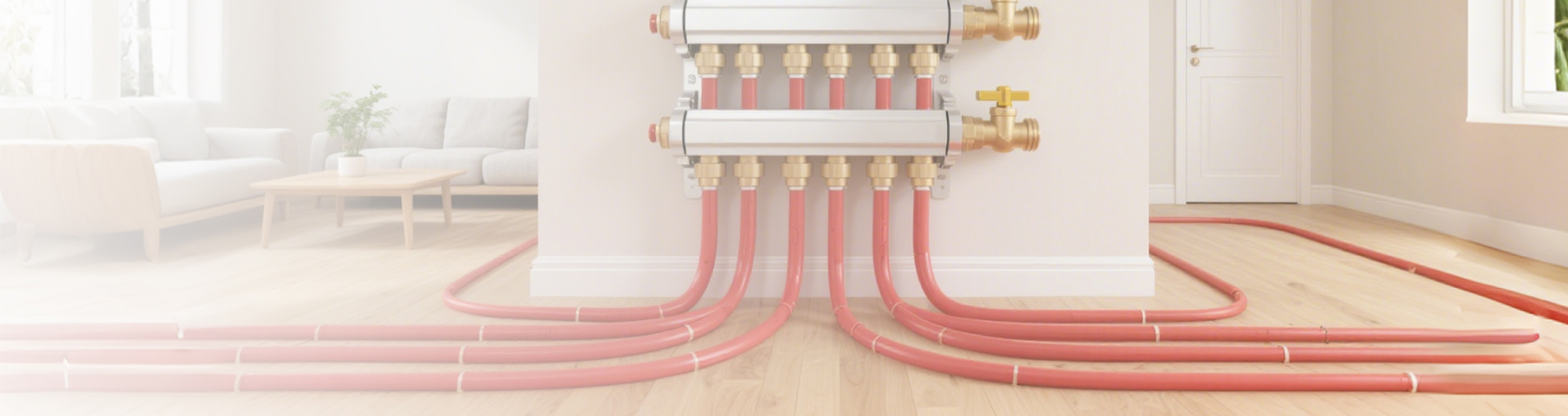

The Auto Balancing Actuator is a unique motorized actuator designed especially for underfloor heating systems. It features built-in automatic balancing control to ensure each waterway is always correctly balanced and that hot and cold spots in the system are no longer an issue. It can be used with new installations or retrofitted onto existing systems to quickly balance them even when the pipe lengths are unknown.

Product Selector

Model No.	Nominal Force	Voltage	Stroke	Control Signa	Manual
SA905-T(220V)	80-130N	220VAC	4.5mm	Automatic hydronic balancing valve actuator	download
SA905-T(24V)	80-130N	24VAC	4.5mm	Automatic hydronic balancing valve actuator	download

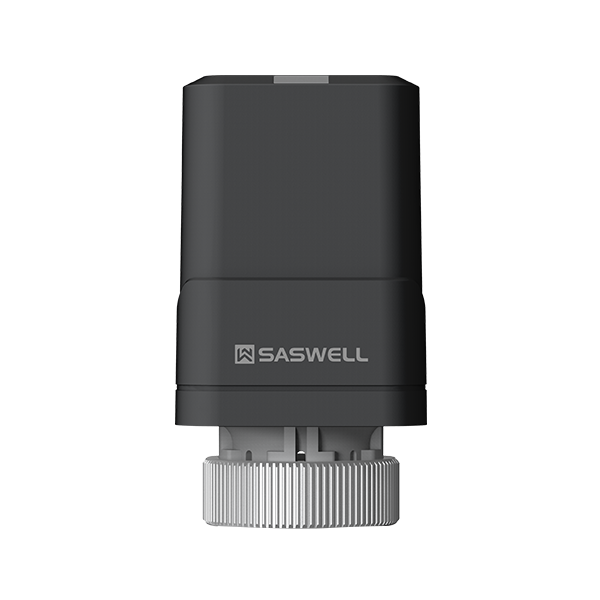

SAS905-V(220V)	160N	220VAC	6mm	Modulating 0-10V	download
SAS905-V(24V)	160	24VAC	6mm	Modulating 0-10V	download
SAS905-S	80-130N	220VAC	4.5mm	ON/OFF	download

Product Parameters

Power supply: SA905-T(220V):100-240VAC; SA905-T(24V):24VAC

Power consumption: ≤2W

Stroke: 4.5mm

Force: 80N~130N

Ambient temperature: 0 ~ +50°C

Ambient humidity: 10%~90%,non-condensing

Protective housing: IP 54

Valve interface: M30x1.5mm

Temperature sensor: NTC 100K, clip for pipe outer diameter from 12~20mm

Fluid temperature:10~60°C(Flow temperature limitation is active when lever is closed )

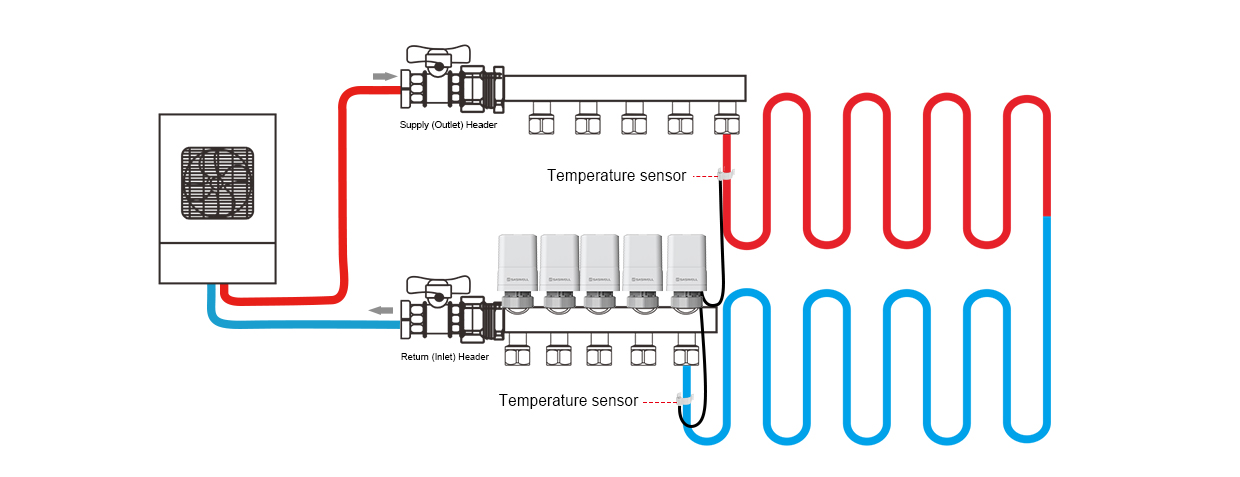

Automatic hydraulic balancing

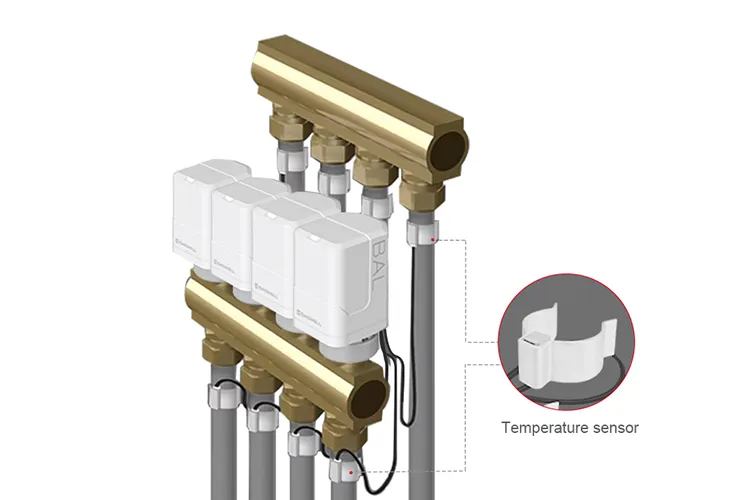

Includes temperature sensor, △T algorithm ensures proper balance and control of each circuit. ±1.5°C temperature control accuracy.

Comfort & energy efficiency

The Auto Balancing Actuator modulates the valve opening to maintain a constant temperature difference resulting in a uniform temperature across the floor surface.

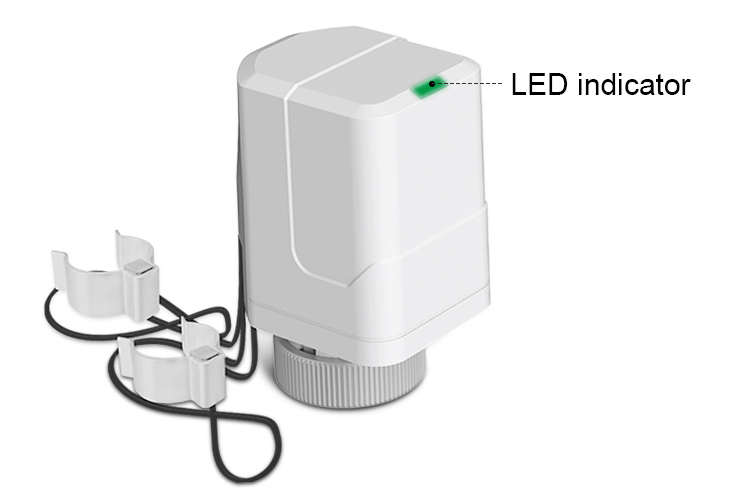

LED status indicator for clear device monitoring

Keep on（Green）: Normal working standby state

Flashing（Green）: In operation

Keep on（Red）: Sensor high temperature alarm

Flashing（Red）: Sensor malfunction

Keep on（Blue）: Bluetooth connection successful

Fast and precise response

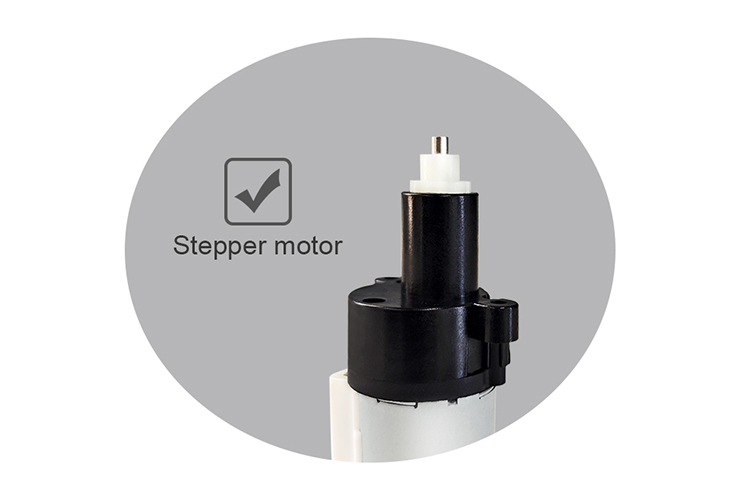

Stepper motor replaces wax core for precise and quicker temperature adjustments.

Actuation time: 150 seconds to open, 30 seconds to close

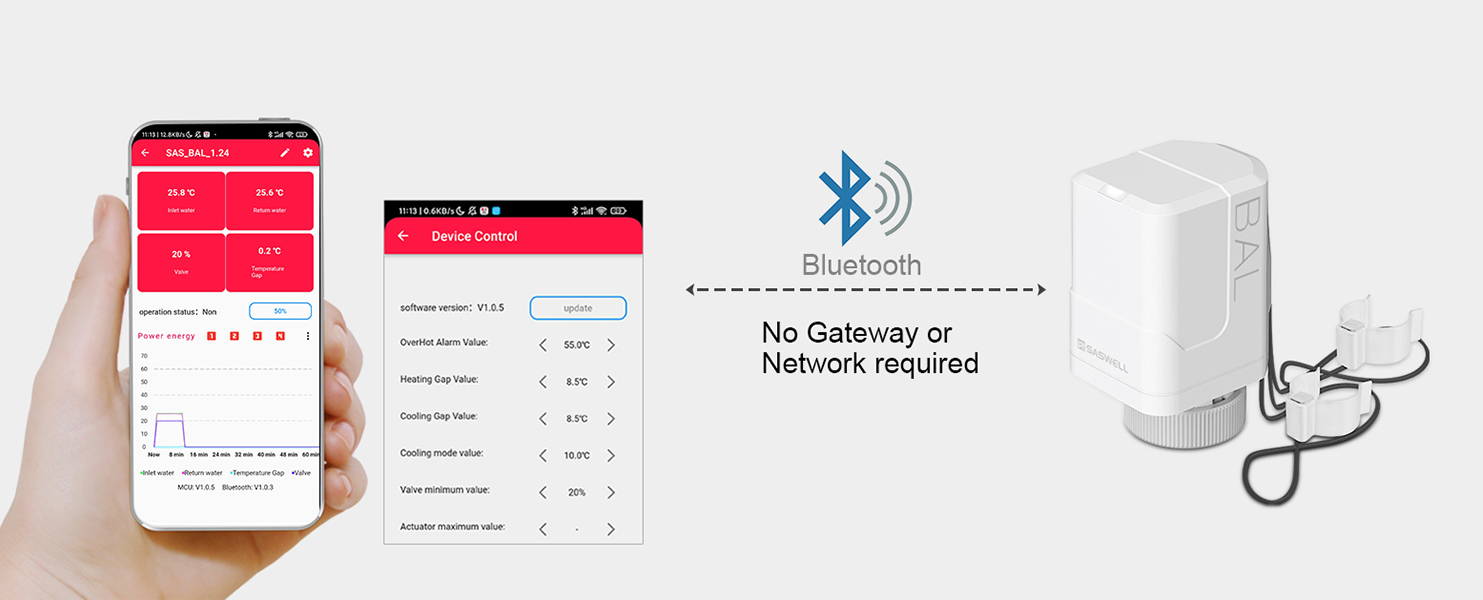

Smart app control for maintenance and compatibility

Monitor real-time supply/return temperatures, ΔT(Cooling/Heating), and valve position via “E-Control”app. Access 24-hour temperature history for quick troubleshooting. Bluetooth-enabled parameter adjustment ensures compatibility with fan coil units, radiators, and other non-floor heating terminals.
