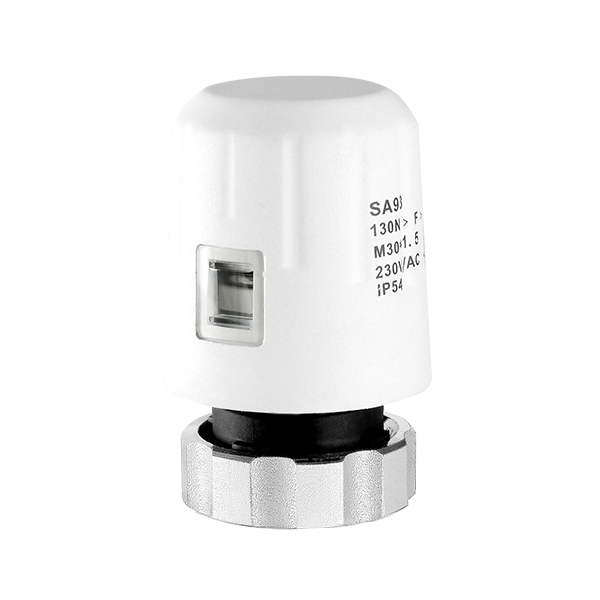

SA93
Electro-thermal Actuator
Get a quote

Visualization of operating status

Simple open and close indication

Universal M30 x 1.5mm screw thread

High quality wax element

HomeProductResidentialValves and ActuatorUnderfloor heating (UFH) actuator
Product Description
Simple open and close indication.High quality wax element.Universal M30 x 1.5mm screw thread.Visualization of operating status.
Product Selector
Model No.

Nominal Force

Voltage

Stroke

Control Signa

Manual
SA93 80-130N 220VAC ≥3mm

 ON/OFF

download
Product Parameters
Power Supply:100~240VAC 50/60Hz
Power consumption:2W
Stroke:≥4.5±0.5mm

Force:130N>F≥80N

Screw thread:M30 × 1.5mm

Ambient temperature:-10~+60°C

Ambient humidity:<90%

Protective housing:lP45

Dimensions: 40mm×40mm×60mm


FAQ
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
