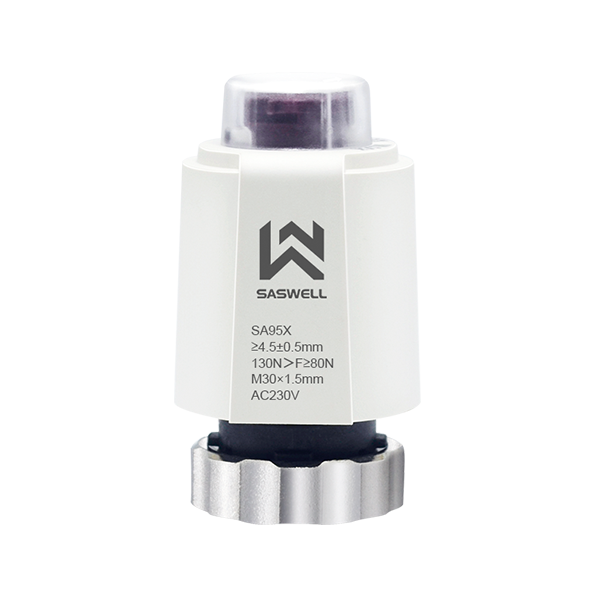

SA95X
Electro-thermal Actuator
Get a quote

Simple open and close indication

Universal M30 x 1.5mm screw thread

High quality wax element

HomeProductResidentialValves and ActuatorUnderfloor heating (UFH) actuator
Product Description
Simple open and close indication.High quality wax element.Universal M30 x 1.5mm screw thread.
Product Parameters
Power Supply:100~240VAC 50/60Hz
Power consumption:2W

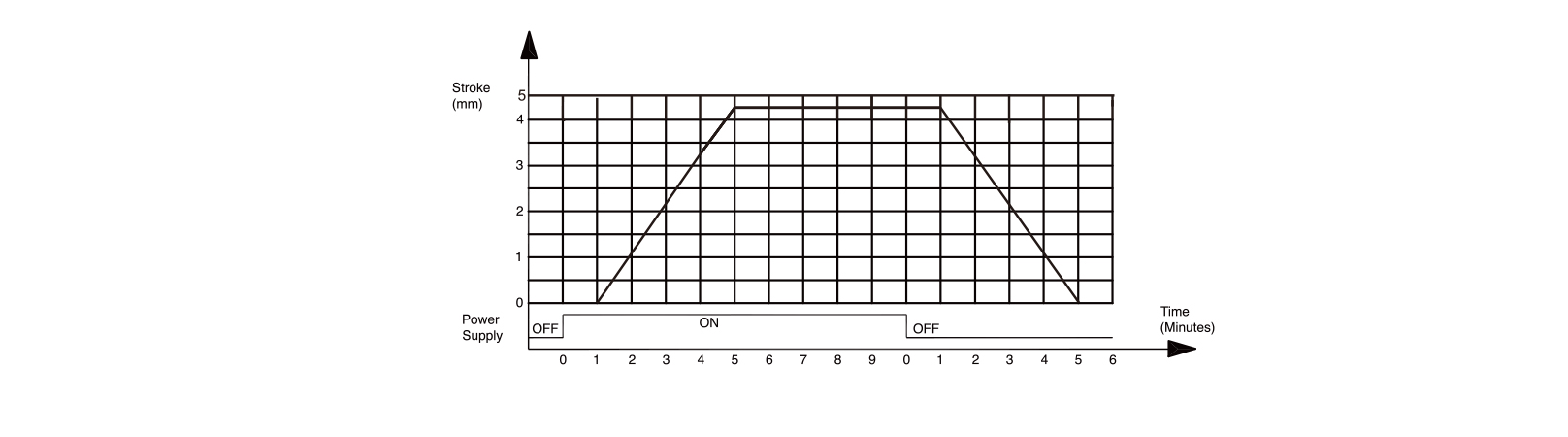

Stroke:≥4.5±0.5mm

Force:130N>F≥80N

Screw thread:M30 × 1.5mm

Ambient temperature:-10~+60°C

Ambient humidity:≤90%

Protective housing:lP45

Dimensions: 41.6mm×41.6mm×77.4mm


FAQ
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
Related Products
Underfloor Heating Auto Balancing Actuator
It is a unique motorized actuator designed especially for underfloor heating systems. It features built-in automatic balancing control to ensure each circuit is always correctly balanced and that hot and cold spots in the system are no longer an issue. It can be used with new installations or retrofitted onto existing systems to quickly balance them even when the pipe lengths are unknown.
SA905-T
Electro-thermal Actuator
Simple open and close indication,High quality wax element
SA95X
Electro-thermal Actuator
Simple open and close indication,High quality wax element
SA93
Electro-thermal Actuator
Simple open and close indication,High quality wax element
