Weight:
0.25kgDimension:

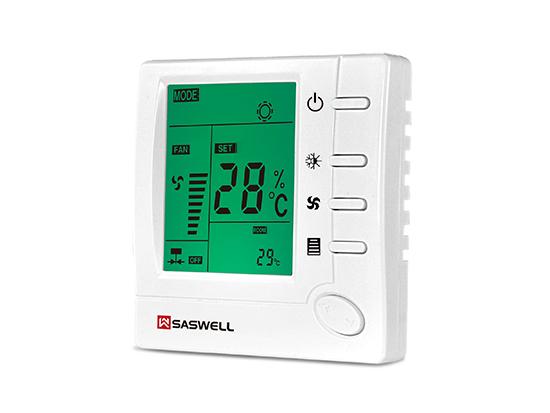

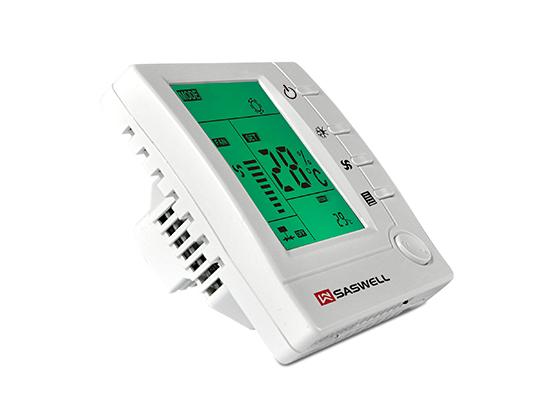

86x86x18mm2 pipe fanm coil thermostat with external sensor SAS803FCT
The two-pipe fan coil thermostat with an external sensor integrates room temperature correction coefficient settings, upper and lower temperature limit settings, fan coil operation mode settings, and power-off memory function. It is widely used in commercial, industrial, and residential buildings, as well as villa complexes, for year-round central air conditioning systems to manage heating, cooling, or control of fans and water valves.
SPECIFICATION:
Electrical Rating ：100-240VAC 50/60Hz
Fan Relay Amps inductive：2A
Heat/Cool Relay Amps inductive：0.5A
Room Temperature Setting Range：5℃ to 35℃
Dimensions：86mm X 86mm X15mm
Color：White
