Modbus & WiFi Fan Coil Thermostat for Central AC / BMS Integration

SAS810FCT

Get a quote

Modbus/WiFi Integration for Smart Control

7-Day Programmable Energy Saving

Large LCD with Backlight Display

2/4 Pipe System Compatibility

Permanent Setting Retention (No Battery)

3-Speed Fan and Valve Control

Home Product Commercial Thermostats Fan Coil Thermostats

Product Description

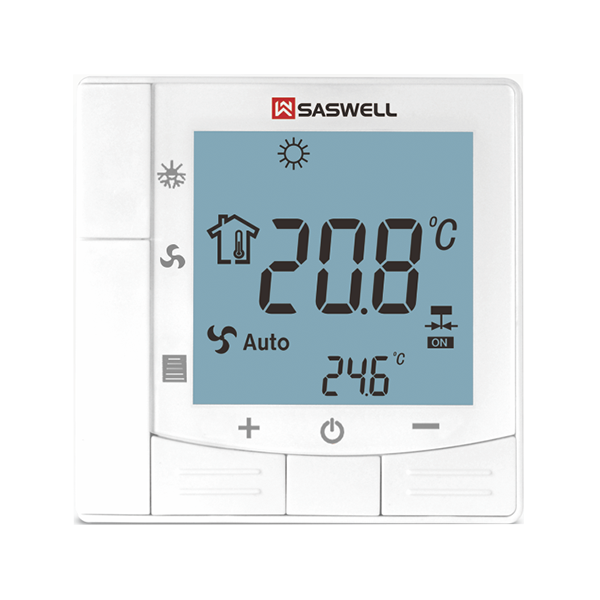

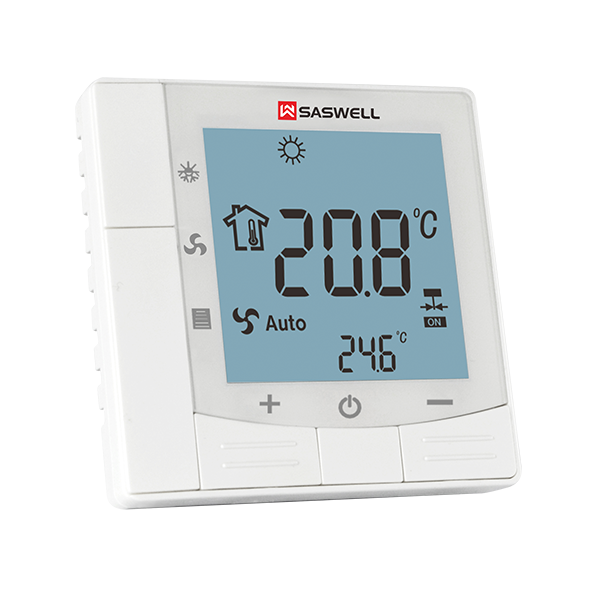

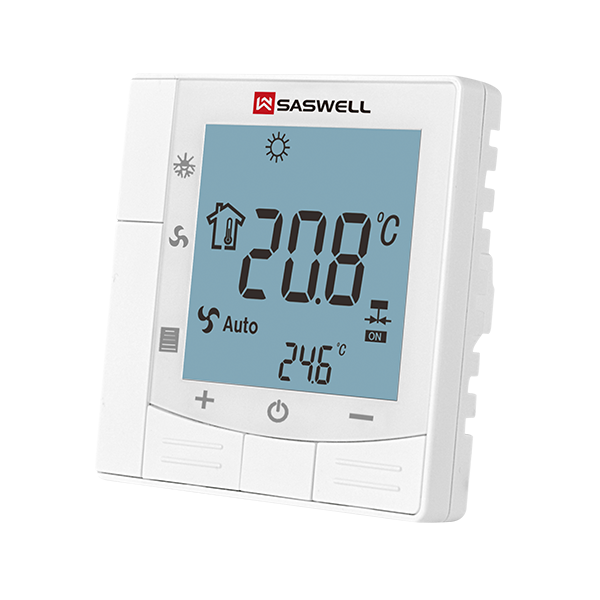

The SAS810FCT series is a professional-grade digital fan coil thermostat engineered for seamless integration into sophisticated HVAC systems. Specifically designed for Central AC units, the Modbus RTU models enable robust communication with Building Management Systems (BMS) via RS485, facilitating precise, centralized control for optimal energy management across commercial properties. For residential or smart environments, the WiFi models offer intuitive remote operation. Featuring a large LCD and supporting both 2-pipe and 4-pipe configurations, the SAS810FCT series delivers reliable, high-performance climate management.

Key Functions

7-Day Programmability

Set customized temperature schedules for all seven days, optimizing climate control for comfort while significantly reducing energy waste during off-peak hours.
Modbus RTU Protocol

The Modbus-enabled version allows for centralized monitoring and control by integrating with existing Building Management Systems (BMS) via RS485 communication.
WiFi Connectivity

WiFi models enable remote control of the thermostat settings, fan speed, and mode via a dedicated mobile application, offering convenience and flexibility.

2/4 Pipe System Control

Easily switch between two-pipe (heating or cooling) and four-pipe (simultaneous heating and cooling) system configurations to suit diverse HVAC needs.
Data Retention Feature

All user settings, including temperature setpoints and programming schedules, are permanently stored, eliminating the need for battery backup during power outages.
Auto/3-Speed Fan Selection

Choose between automatic fan operation or manually select from three distinct fan speeds (High, Medium, Low) to manage airflow and noise levels.

Product Selector

Model No.	Heat/cool	Pipe	Speed fan	Programmable	Window card	Room card	External Sensor	Modbus RTU	WIFI	Power	Manual
SAS810FCT-2-485	√	2	3	√				√	√	220VAC	download
SAS810FCT-7-S	√	2	3	√			√		√	220VAC	download
SAS810FCH-0-WIFI	√	2/4	3						√	220VAC

Product Parameters

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Heat/Cool Relay Amps inductive: 1(0.5)A
Room Temperature Setting Range: 5°C to 35°C
Dimensions: 86mm×86mm×15mm

Product Application Scenarios

The SAS810FCT series is essential for modern climate control across various settings. Its Modbus compatibility makes it a perfect fit for Commercial Buildings (Offices, Hotels) requiring centralized BMS control and comprehensive energy management of Central AC systems. The user-friendly interface and WiFi option ensure high satisfaction in Premium Residential Properties and Smart Home environments. It is also an ideal component for Digital Energy-Saving Retrofit Projects due to its programmable and integration capabilities, maximizing efficiency in existing infrastructure.

Hospital

Office-Building

Shopping-Mall

Partnership & OEM/ODM Support

Partner with us for reliable, high-quality HVAC control solutions designed to drive your market success. We offer comprehensive support to meet the demanding needs of global enterprises, real estate developers, and smart technology retailers. Contact us to explore integration possibilities.

Fast Customization Capability

●Leveraging our agile platform, we offer rapid product customization and tailored functionality within a short turnaround time to perfectly match your project specifications.
Dedicated Technical Support

●Our expert team provides dedicated pre-sales consultation and technical guidance throughout the integration process, ensuring a smooth and efficient deployment of our thermostats.
Global After-Sales Service

●With a commitment to quality, we offer reliable global after-sales service and support, ensuring prompt resolution and long-term satisfaction for all our international partners.

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
