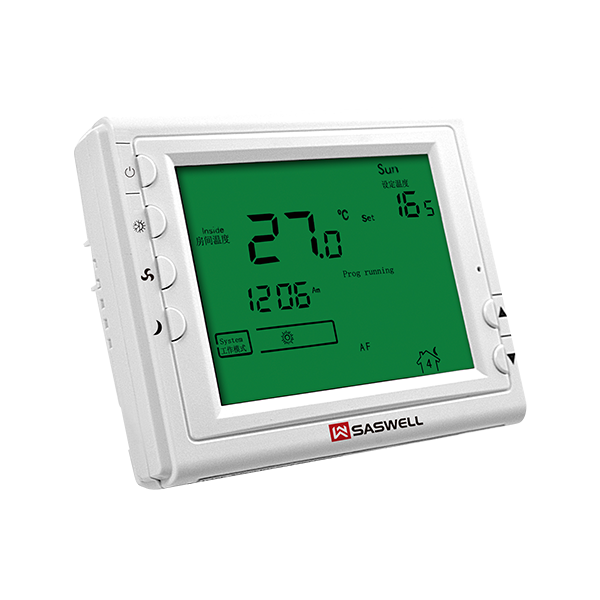

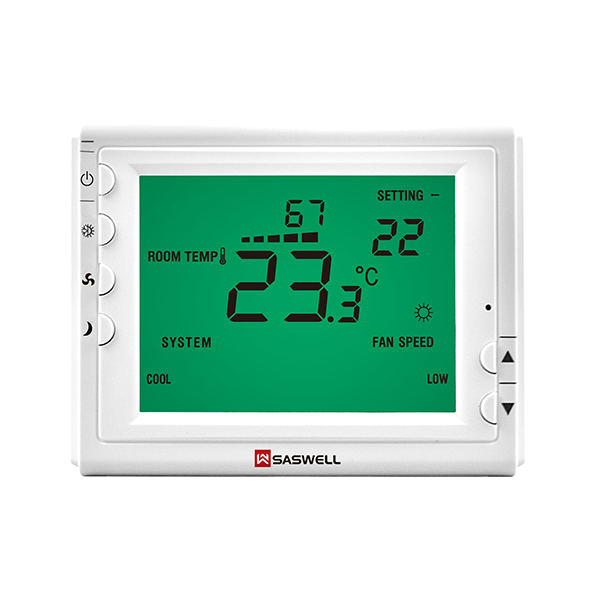

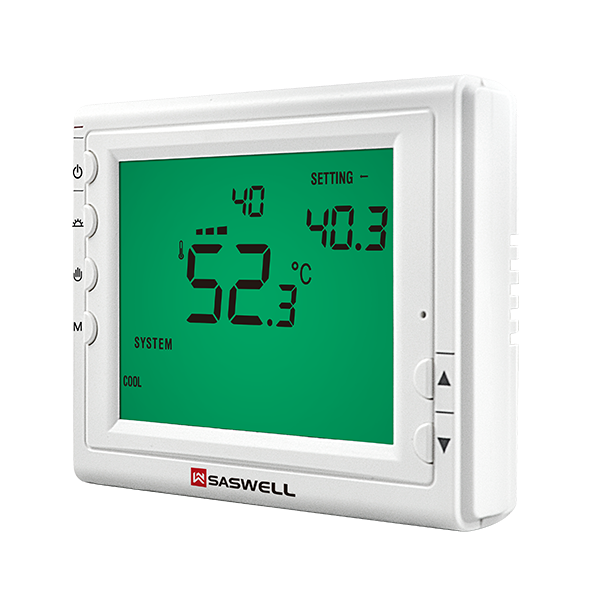

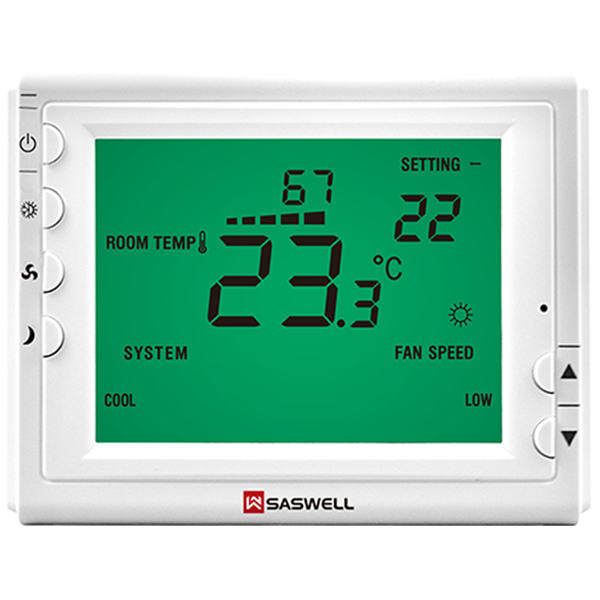

SAS908FCT

4-Pipe Fan Coil Thermostat with 3-Speed Fan

Get a quote

Large LCD display with backlight

Set points and room temperature display simultaneously

Adjustable 3-speed fan with fan stop option

Manual change over

Never lose user setting in the event of power-off, no battery is required

Sleep mode option

Inner Sensor or External sensor option

Maintains the temperature within the range of 0.5℃ to the set point.

Home Product Commercial Thermostats Fan Coil Thermostats 4-Pipe Fan Coil Thermostat with 3-Speed Fan

Product Description

Large LCD display with backlight, Adjustable 3-speed fan with fan stop option,Compatible for fan coil

Product Selector

Model No.

Heat/cool

Cool only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS908FCT-4B-S-CP

√

220VAC

download

Product Parameters

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 5(3)A
Heat/Cool Relay Amps inductive: 1(0.5)A
Set point Temperature Range: 5°C to 35°C
Dimensions: 115mm×90mm×28.5mm

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
