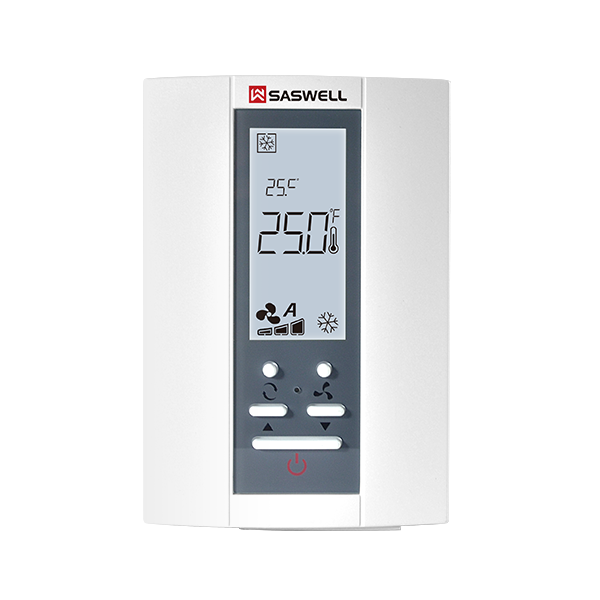

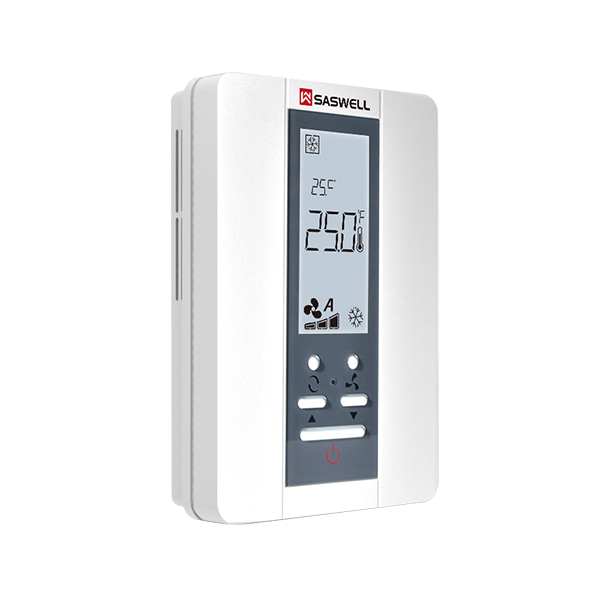

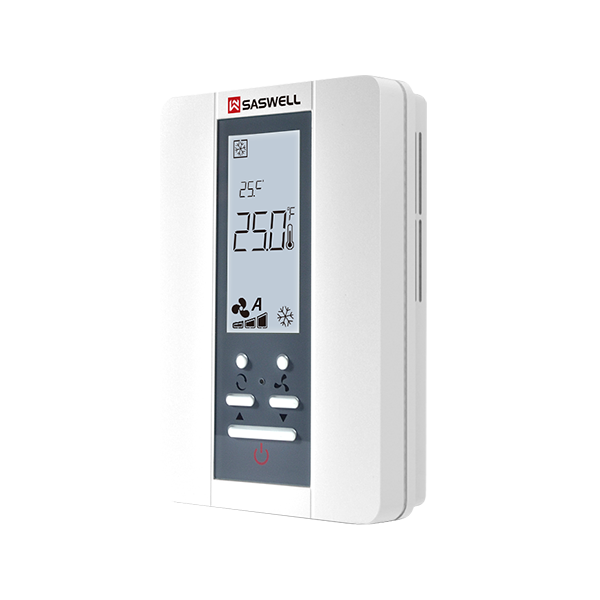

0-10V EC Motor FCU Thermostat with RS485 & Vertical Design

T15FCT

Modern Vertical FCU Thermostat for Hospitality & BMS Integration

Get a quote

0-10V Proportional Control for EC/DC Fans

Unique Vertical Design, Crosswise Installation

RS485/Modbus Protocol for BMS

Infrared (IR) Remote Control Option

2/4 Pipe System Compatibility

Elite Precision ±0.5°C Control

Home Product Commercial Thermostats Fan Coil Thermostats

Product Description

The T15FCT series is an aesthetically driven and highly advanced fan coil thermostat, engineered for maximum energy efficiency and seamless integration. It features a unique vertical or crosswise installation design and offers Elite Precision (±0.5°C) control over both 2-pipe and 4-pipe systems. Crucially, the T15FCT provides 0-10V proportional output, enabling precise, variable speed control for modern EC (Electronically Commutated) fan motors. This professional-grade capability, combined with RS485 Modbus communication for BMS integration, makes the T15FCT the superior choice for high-performance commercial and retrofit projects.

Key Functions

0-10V Output for EC/DC Motors

Provides smooth, variable speed control via 0-10V analog output, maximizing the energy efficiency and reducing noise of advanced EC fan motors.
Vertical/Crosswise Installation

The unique vertical screen design allows for both vertical and horizontal mounting options, providing installation flexibility to match any wall space or decor.
RS485 Modbus Protocol

Enables communication with centralized Building Management Systems (BMS), essential for large-scale control and remote diagnostics in commercial projects.

IR Remote Functionality

Certain models include an infrared receiver, allowing users to conveniently adjust settings and modes using an optional IR remote controller.
Temperature Accuracy

Ensures precise temperature sensing and control, maintaining a consistent and comfortable indoor environment with high efficiency.
2/4 Pipe System Control

Easily switch between two-pipe (heating or cooling) and four-pipe (simultaneous heating and cooling) system configurations to suit diverse HVAC needs.

Product Selector

Model No.

Heat/cool

Cool only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

T15FCT-7

√

2/4

√

220VAC

download

T15FCT-4RS-IR-485

√

2/4

√

220VAC

download

T15FCT-2-RS

√

220VAC

download

Product Parameters

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Accuracy: ±0.5°C(1 °F)
Set point Temperature Range: 5℃to 50℃C
Dimensions: 120.9mm×82.9mm×28mm

Product Application Scenarios

The T15FCT series is the preferred solution for projects prioritizing energy savings and precise airflow. Its 0-10V control capability makes it essential for Digital Energy Retrofit Projects upgrading to EC motors and for certified Green Buildings. The RS485 Modbus integration remains critical for Premium Commercial Buildings and the Hospitality Sector, where centralized BMS management and customizable aesthetic design are mandatory.

Hospital

Office-Building

Shopping-Mall

Partnership & OEM/ODM Support

Partner with us for reliable, high-quality HVAC control solutions designed to drive your market success. We offer comprehensive support to meet the demanding needs of global enterprises, real estate developers, and smart technology retailers. Contact us to explore integration possibilities.

Fast Customization Capability

Leveraging our agile platform, we offer rapid product customization and tailored functionality within a short turnaround time to perfectly match your project specifications.
Dedicated Technical Support

Our expert team provides dedicated pre-sales consultation and technical guidance throughout the integration process, ensuring a smooth and efficient deployment of our thermostats.
Global After-Sales Service

With a commitment to quality, we offer reliable global after-sales service and support, ensuring prompt resolution and long-term satisfaction for all our international partners.

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
