What is ΔT Automatic Balancing Control and How Does It Fundamentally Differ from Standard Thermostatic Actuators?

Introduction:Uncovering the Root Cause of UFH Inconsistency

The most common complaints regarding underfloor heating (UFH) systems are uneven heating (hot and cold spots) and excessive running costs. Often, the fault lies not with the boiler or the pipes, but with the system's "brain"—the method of control used by the actuator. Traditional UFH actuators simply cannot meet the demands of modern, high-efficiency heating systems.

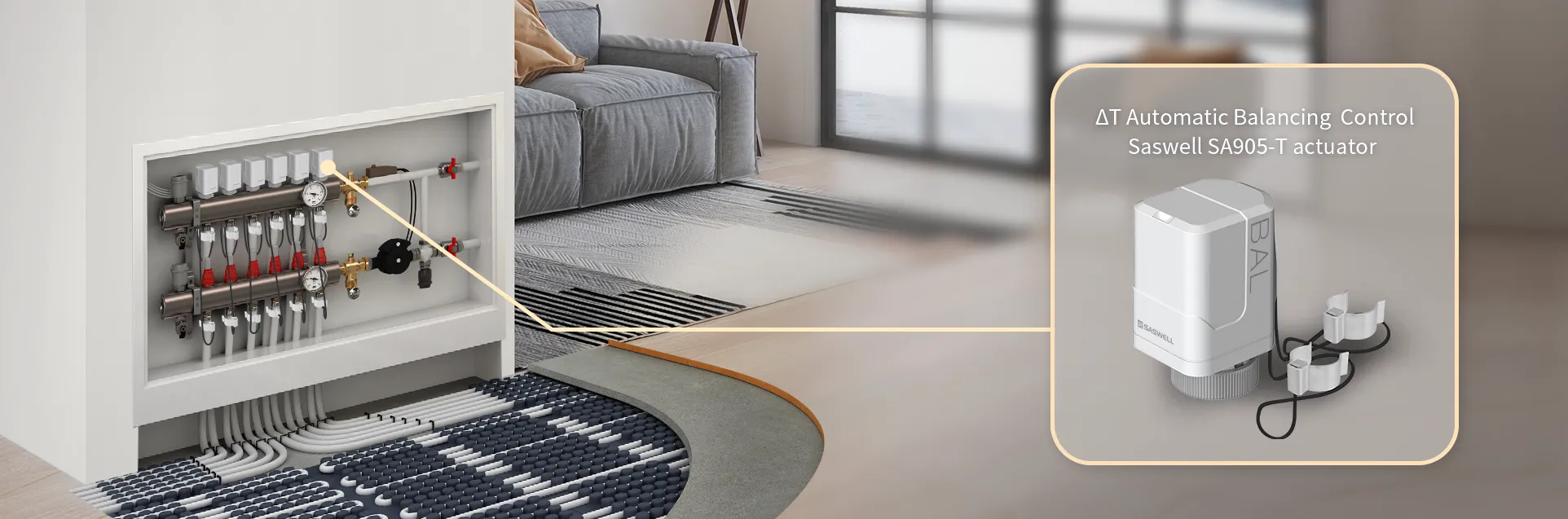

This article will provide a deep dive into the ΔT Automatic Hydronic Balancing Control technology utilized by the Saswell SA905-T, revealing how it fundamentally surpasses conventional wax-element (thermal) actuators to deliver a revolutionary boost in UFH efficiency and comfort.

I. The Limitations of Traditional Thermal Actuators

Conventional actuators rely on the heating and expansion of wax to control the opening and closing of the valve. They are essentially ON/OFF (two-point) or static control devices.

1. Low Accuracy and Sluggish Response

Actuation Delay: Wax requires a significant amount of time to heat up and cool down, making the valve action extremely slow (often taking 3–5 minutes). This causes the system to react sluggishly to changes in room temperature.

●Temperature Overshoot: The slow response often leads to the room temperature exceeding the set point (overheating) because the valve cannot close fast enough while hot water continues to flow.

●Lack of Modulation: They operate only in "fully open" or "fully closed" states, lacking the ability for fine-tuned flow modulation, which renders them incapable of resolving hydronic imbalance issues.

2. Inability to Resolve Hydronic Imbalance

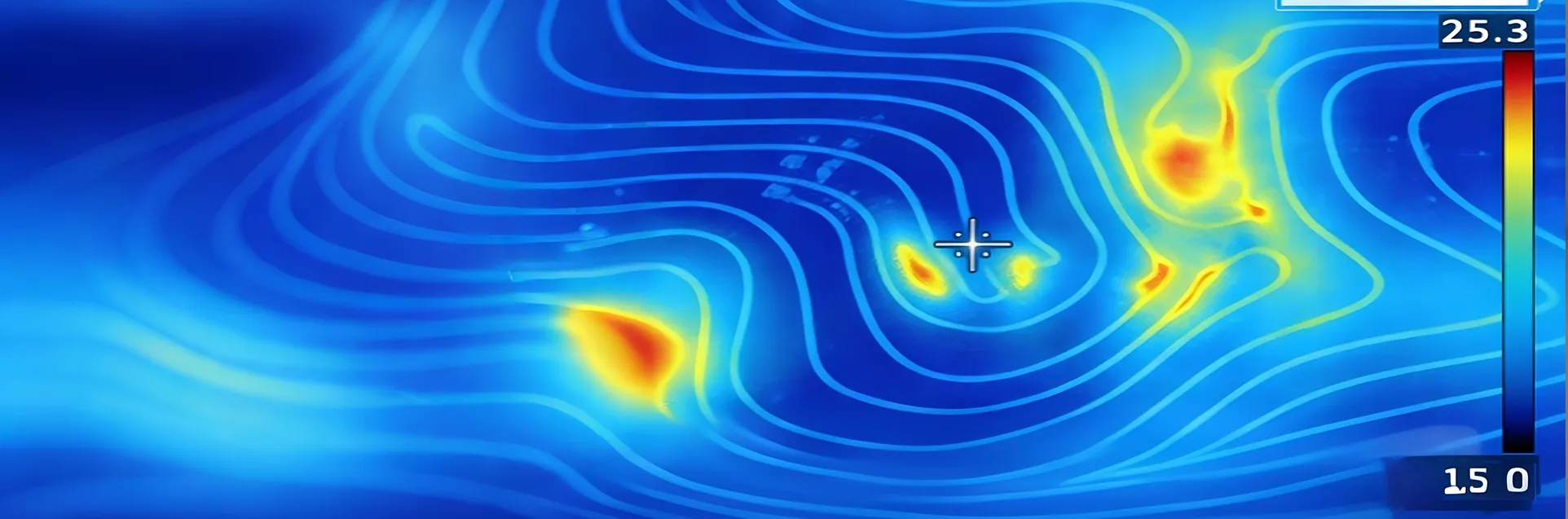

Hydronic imbalance is the "silent killer" of UFH systems. Since different circuits have varying pipe lengths and resistances, water preferentially flows through the path of least resistance (the shortest circuits), resulting in:

●Overheating in Short Circuits: Wasting energy and potentially damaging flooring.

●Underheating in Long Circuits: Failing to reach the set temperature, severely compromising comfort.

II. TheΔT Automatic Balancing Revolution: Dynamic & Precise

The core of the Saswell SA905-T actuator is dynamic control, executed by a high-performance Stepper Motor that uses real-time data monitoring to deliver precise adjustments.

1. Core Principle: Controlling the Temperature Differential (ΔT)

ΔT (Delta T), the differential between the supply temperature and the return temperature, is the most crucial metric for gauging a circuit's efficiency:

●SmallΔT: Indicates that the water flow is too fast. Water returns before adequately releasing its heat, leading to low efficiency and energy waste.

●LargeΔT: Indicates that the water flow is too slow. Heat accumulates, leading to high system load and potential overheating issues.

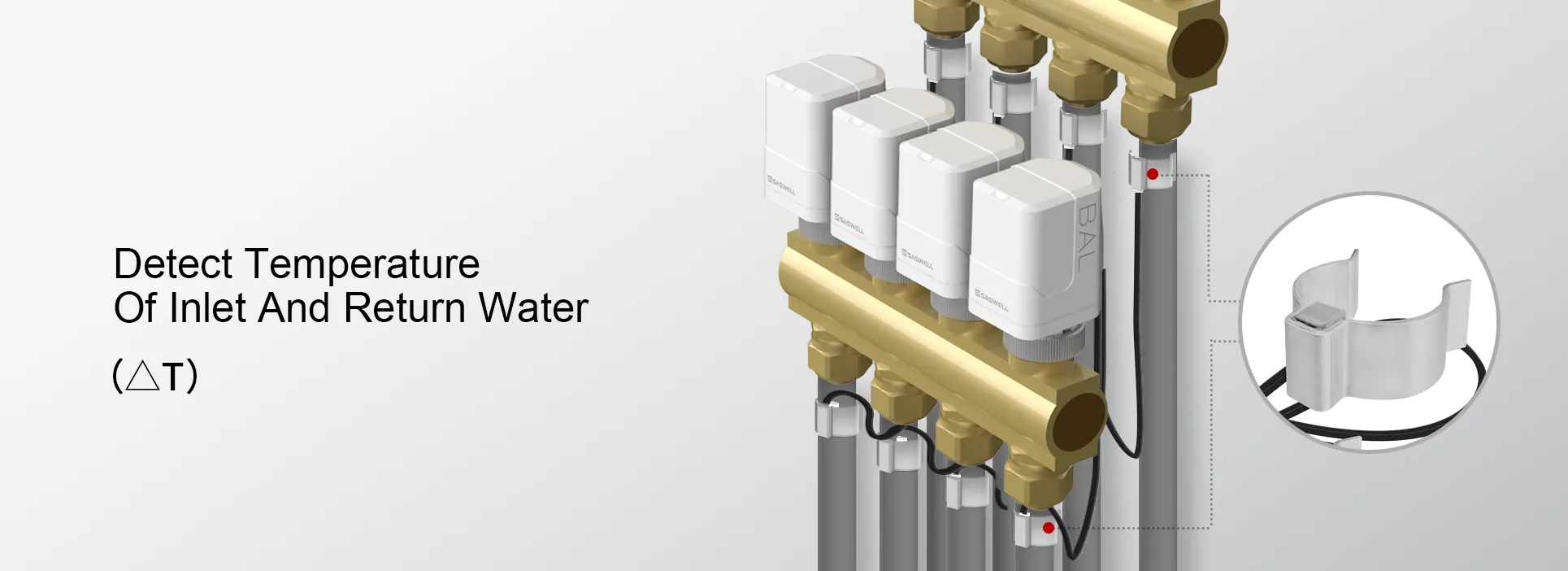

TheΔT automatic balancing algorithm constantly monitors this differential via integrated temperature sensors placed on the supply and return pipes. The system dynamically adjusts the valve position to maintain the optimalΔT setpoint (typically between 5℃−10℃) in every single circuit.

2. Technical Advantage: Stepper Motor and Micro-Positioning

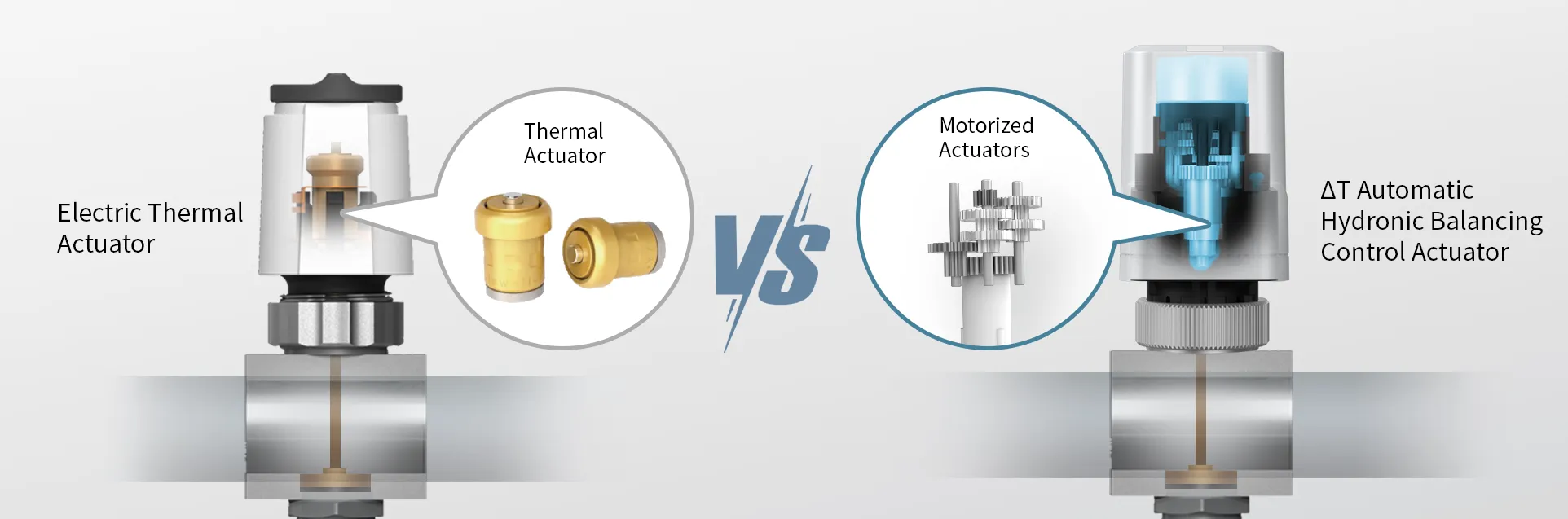

●Precision Modulation: TheΔT algorithm requires an actuator capable of micro-positioning and highly accurate resolution. The SA905-T’s stepper motor replaces the wax element, enabling linear, high-resolution modulation of the valve opening.

●Rapid Response: The stepper motor's fast actuation time (e.g., 150 seconds to open, 30 seconds to close) ensures the system can instantly respond toΔT changes, stabilizing temperature control to an impressive±1.5℃.

III. Summary of Fundamental Differences (Why Upgrade?)

Conclusion: The Future of Efficiency and Comfort

For brand owners and engineering firms, adopting the ΔT automatic balancing actuator is more than just a technological upgrade; it is the key to resolving client pain points, drastically lowering energy consumption, and elevating project quality. It marks the definitive shift of UFH systems from simple "ON/OFF" control to "Smart, Dynamic, and Precisely Balanced" operation.
