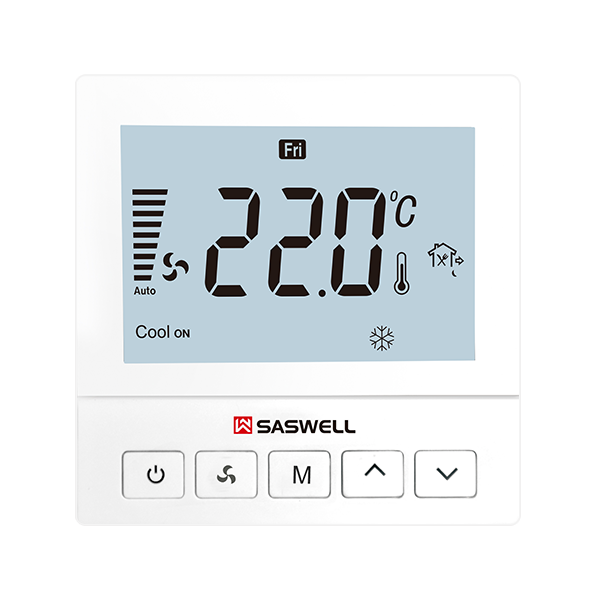

FAN COIL THERMOSTAT SAS920FCT

SAS920FCT

FAN COIL THERMOSTAT SAS920FCT

Get a quote

Large LCD display with backlight

2 pipe or 4 pipe heating/cooling available

Auto fan with adjustable 3-fan speed

Permanent user setting retention during power loss, no batteries are required

7 days programmable

Room Sensor or External sensor option

Home Product Commercial Thermostats Fan Coil Thermostats

Product Description

Application: Heat/cool, 3 speed fan, 2 pipe fan coil unit

Product Selector

Model No.	Heat/cool	Pipe	Speed fan	Programmable	Window card	Room card	External Sensor	Modbus RTU	WIFI	Power	Manual
SAS920FCT-2-S	√	2	3				√	√		220VAC	download
SAS920FCT-7(2)	√	2	3	√						220VAC	download
SAS920FCT-7(4)	√	4	3	√						220VAC

Product Parameters

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Heat/Cool Relay Amps inductive: 3(2)A
Room Temperature Setting Range: 5°C to 35°C
Dimensions: 88mm×88mm×15mm

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
