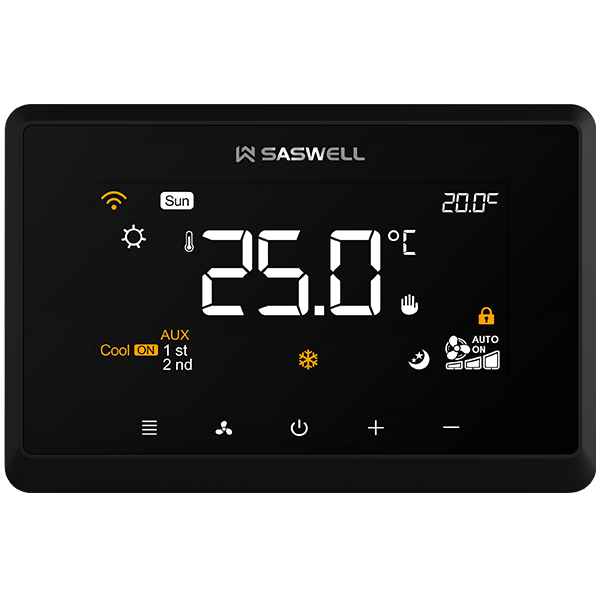

Programme Touch Screen Thermostat T29MTW-7-S-485 manufacturer,China Programme Touch Screen Thermostat T29MTW-7-S-485

T29MTW

Modbus RS485 Multi-Stage HVAC Controller

Get a quote

Big screen and touch key for easy operation

Color display

Wall mount to easy hanging on wall

Compatible for fan coil and DX unit

Modbus communication

Up to 2 stage heating and cooling

Home Product Commercial Thermostats Fan Coil Thermostats

Product Description

Application: Compatible for fan coil and DX unit，Modbus communication，Up to 2 stage heating and cooling

Product Selector

Model No.

Heat/cool

Cool only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

T29MTW-7-S-485

√

√

2/4

1/3

√

√

√

√

√

220VAC

download

Product Parameters

Power Supply: 100-240VAC 50/60Hz；24(18~30) VAC 50/60Hz
Realy for fan: 8(5)A
Standby current: <1W
Heat/Cool Relay Amps inductive: 3(2)A
Temperature setting range: 0°C to 50°C
Accuracy: 0.1°C
Storage temperature: -10°C to 60°C
Operation temperature: 0°C to 50°C
Dimensions: 135mm×92mm×27.5mm

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.

Related Products

4-Inch Color Screen AC FCU Thermostat

High-load 4-inch AC FCU Thermostat (10A) with Modbus/WIFI for 3-speed fan retrofit projects and dual valve control.

Smart FCU Controller with WiFi & RS485 for Fan Coil & DX

SAS922XBMTW with WiFi & RS-485 control. 7-day programmable, Alexa & Google Assistant voice control, external sensor support, compatible with fan coil and DX systems.

RS485 Fan Coil Unit (FCU) Controller for 2-Pipe Systems

AS923FCT Supports RS-485 Modbus communication, includes pump protection, compressor delay, external sensor input, and works with 100-240Vac power supply.

Modbus RS485 Multi-Stage HVAC Controller

T29MTW supports various configurations, including 2-pipe / 4-pipe fan coil systems and single/two-stage DX systems.

RS485 Modbus EC Fan Coil Thermostat

RS485 Modbus protocol for BMS integration. Features keycard input and external sensor support for precise
