air conditioner with thermostat SAS923FCT-CO-S-485 manufacturer,China air conditioner with thermostat SAS923FCT-CO-S-485

SAS923FCT

RS485 Fan Coil Unit (FCU) Controller for 2-Pipe Systems

Get a quote

Touch button, color display

For fan coil or DX unit

Modbus communication

Heating and cooling, ventilation mode

Auto fan with adjustable 3-fan speed

Room Sensor or External sensor option,Compressor delay

Home Product Commercial Thermostats Fan Coil Thermostats

Product Description

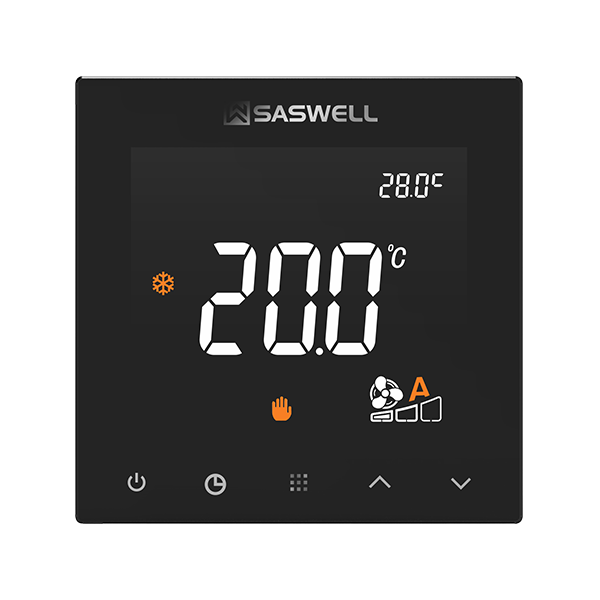

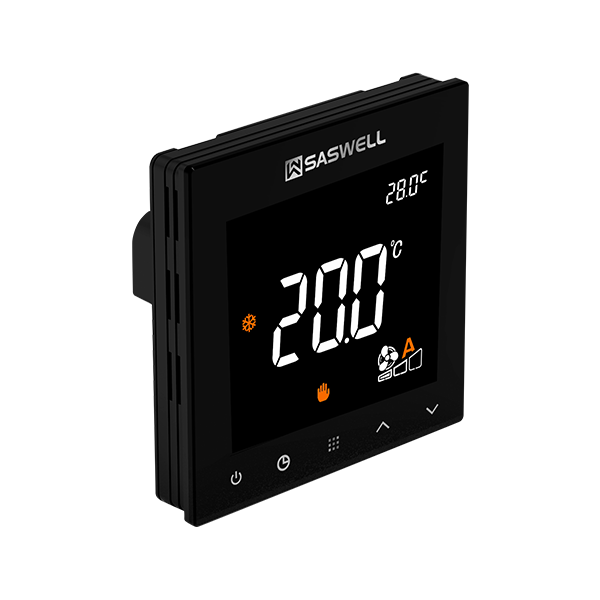

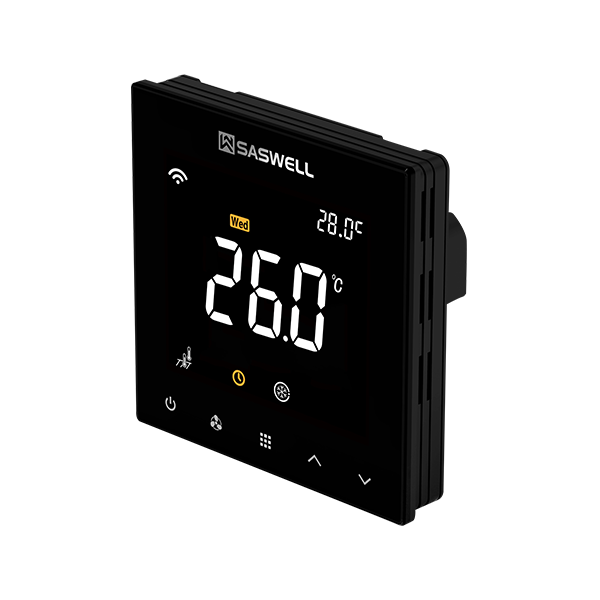

The SAS923 Series Touch Screen thermostat is a temperature control device with an extra-large LCD display, capacitive touch interface with color icons and manual or automatic fan speed selection.

The units monitor the actual room temperature, and the set temperature in real-time to control the opening / closing of the valves and fan speed in the fan coil units to regulate the room temperature to the occupant’s desired comfort. Available in a variety of options including white or black color shell, humidity display, Modbus communications and ECM fan support.

Product Selector

Model No.

Heat/cool

Cool only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS923FCT-CO-S-485

√

220VAC

download

Product Parameters

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Heat/Cool Relay Amps inductive: 3(2)A
Room Temperature Setting Range: 5°C to 35°C
Dimensions: 88mm×88mm×15mm
